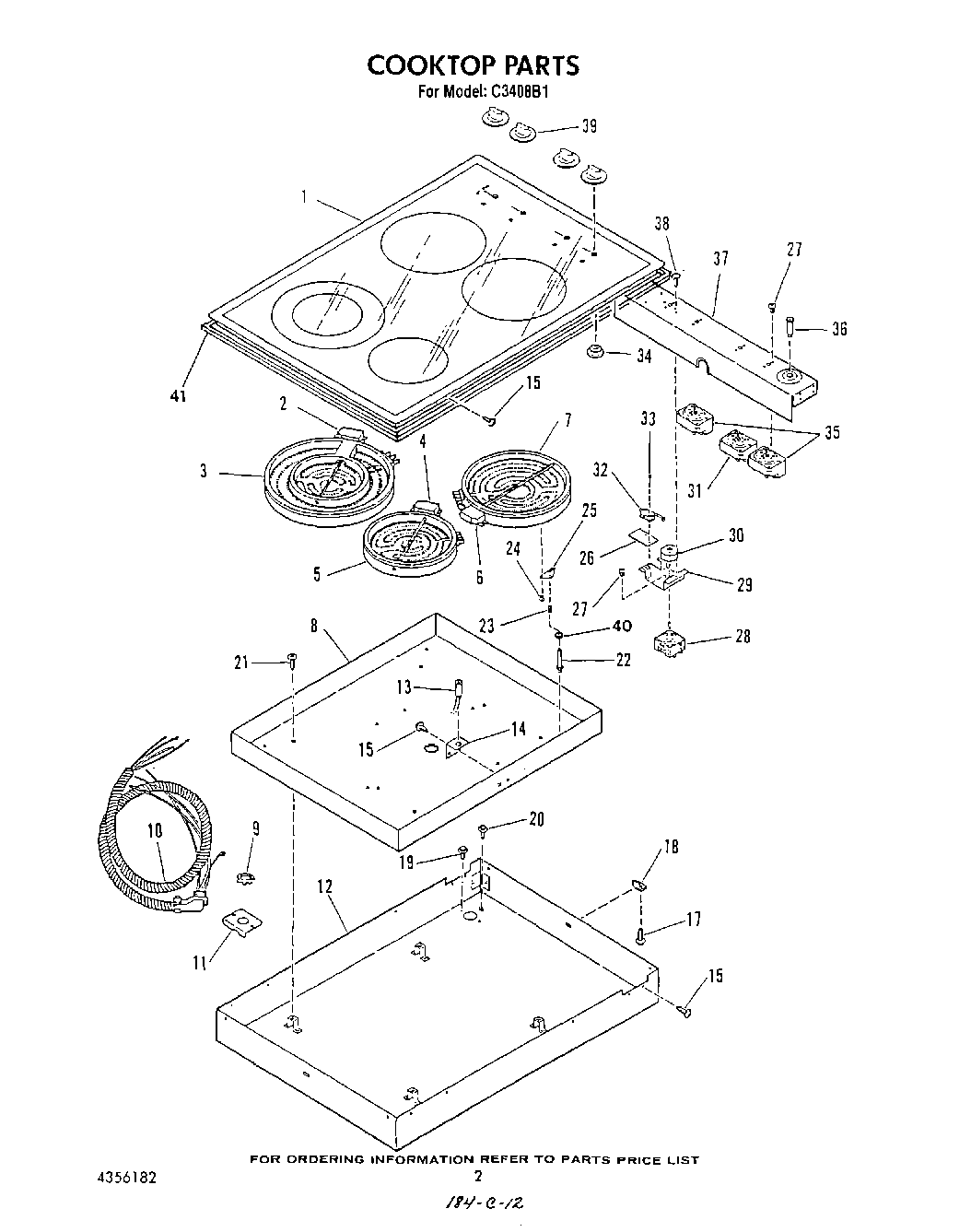

| xParts Not Shown On Illustration |
| 1 | Cooktop, Glass |
| 2 | Limit Control |
| 3 | Heater, Radiant- Left Rear |
| 4 | Limit Control |
| 5 | Heater, Radiant- Left Front |
| 6 | Limit Control |
| 7 | Heater, Radiant- Rt. Rear-Rt. Front |
| 8 | Support, Burner Box |
| 9 | Nut, Lock |
| 10 | Conduit-Wire Asm. |
| 11 | Plate, Conduit |
| 12 | Cover, Heater |
| 13 | Light, Indicator |
| 14 | Bracket, Light |
| 15 | Screw, Trim |
| 17 | Screw No.10-32x1`` (2 Req) |
| 18 | Clip, Retainer |
| 19 | W10850756 Whirlpool Screw |
| 20 | Screw No.10-32x7/16 |
| 21 | Screw, No.8-32 x 1/4 |
| 22 | Stud, Heater |
| 23 | Spring, Heater |
| 24 | Screw |
| 25 | Bracket, Heater |
| 26 | Insulator, Switch |
| 27 | Screw No.8-32x1/4`` (6 Req) |
| 28 | Switch, Infinite |
| 29 | Bracket, Infinite Switch |
| 30 | Switch, Cam |
| 31 | W10900107 Whirlpool Oven Surface Element Switch |
| 32 | Switch, Micro |
| 33 | Screw No.4-40x11/16 |
| 34 | Seal, Infinite Control |
| 36 | Light, Indicator |
| 37 | Mounting, Control Panel |
| 38 | Screw |
| 39 | Knob, Infinite (4) |
| 40 | Washer |
| 41 | xOwners Manual |
| 41 | xInstallation Guide |
| 41 | Barrier, Light |
| 41 | xRepair Parts List |
