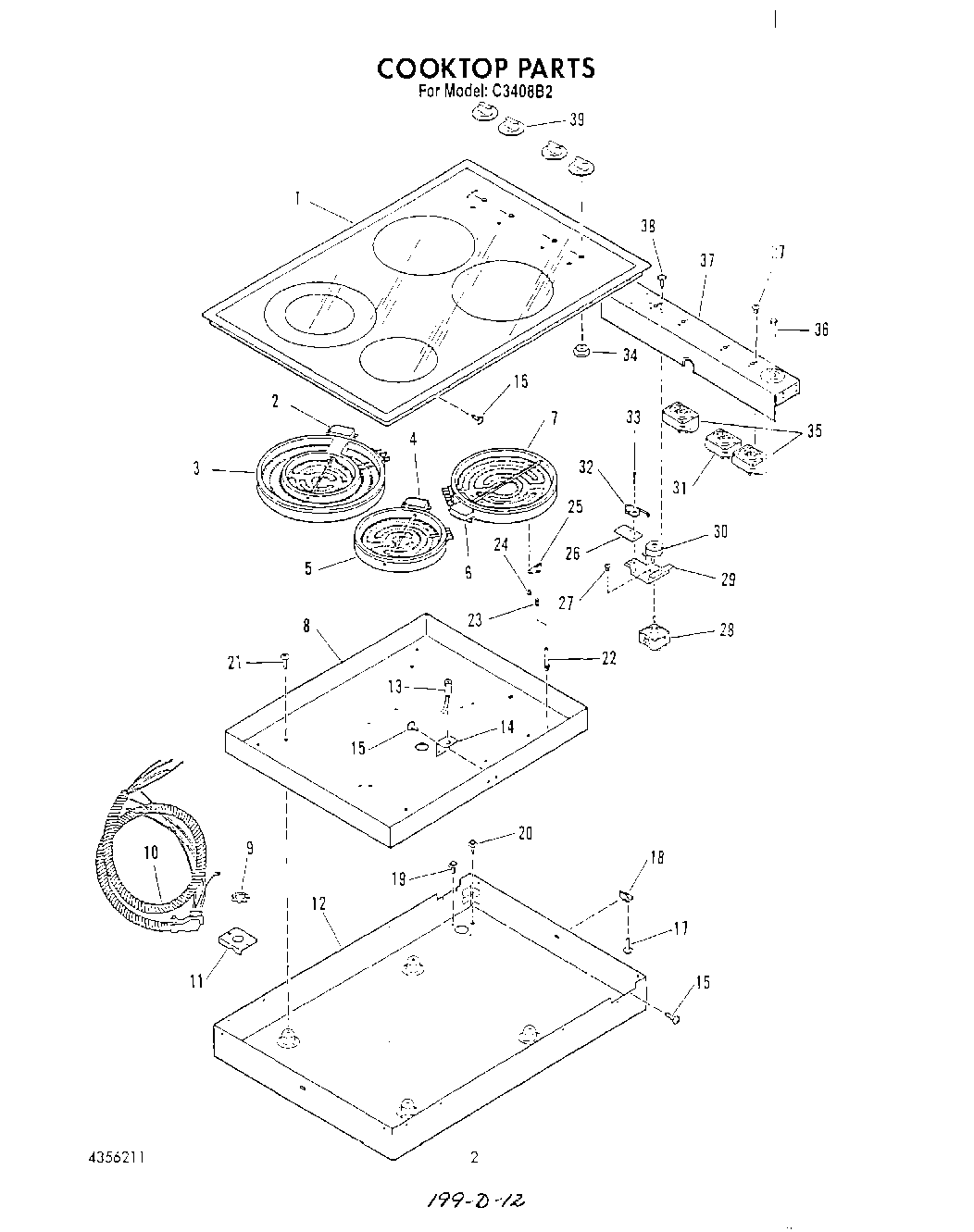

C3408B2 02 – COOKTOP

Products

Position	Product
	Harness, Wire (Wire, Main)
	xParts Not Shown On Illustration
	Harness, Wire (3/16“)
	WP285432 Whirlpool Terminal
	Harness, Wire (Flag Terminal 1/4“ Faston Terminal)
1	Cooktop, Glass
2	Limit Control
3	Heater, Radiant-Left Rear
4	Limit Control
5	Heater, Radiant-Left Front
6	Limit Control
7	WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
8	Support, Burner Box
9	Nut, Lock
10	Conduit-Wire Asm.
11	Plate, Conduit
12	Burner Box Bottom
13	Light, Indicator
14	Bracket, Light
15	WP308685 Whirlpool Microwave Screw
17	Screw No.10-32×1“ (2 Req)
18	Clip, Retainer
19	W10850756 Whirlpool Screw
20	Screw No.10-32×7/16
22	Stud, Heater
23	Spring, Radiant
25	Bracket, Heater
26	Insulator
27	Screw No.8-32×1/4“ (6 Req)
28	Switch, Infinite
29	Bracket, Infinite Switch
30	Switch, Cam
31	W10900107 Whirlpool Oven Surface Element Switch
32	Switch, Micro
33	Screw
34	Seal, Infinite Control
36	Light, Indicator
37	Mounting, Control Panel
38	Screw
39	Knob, Infinite (4)
39	xOwners Manual
39	xInstallation Guide
39	xRepair Parts List
