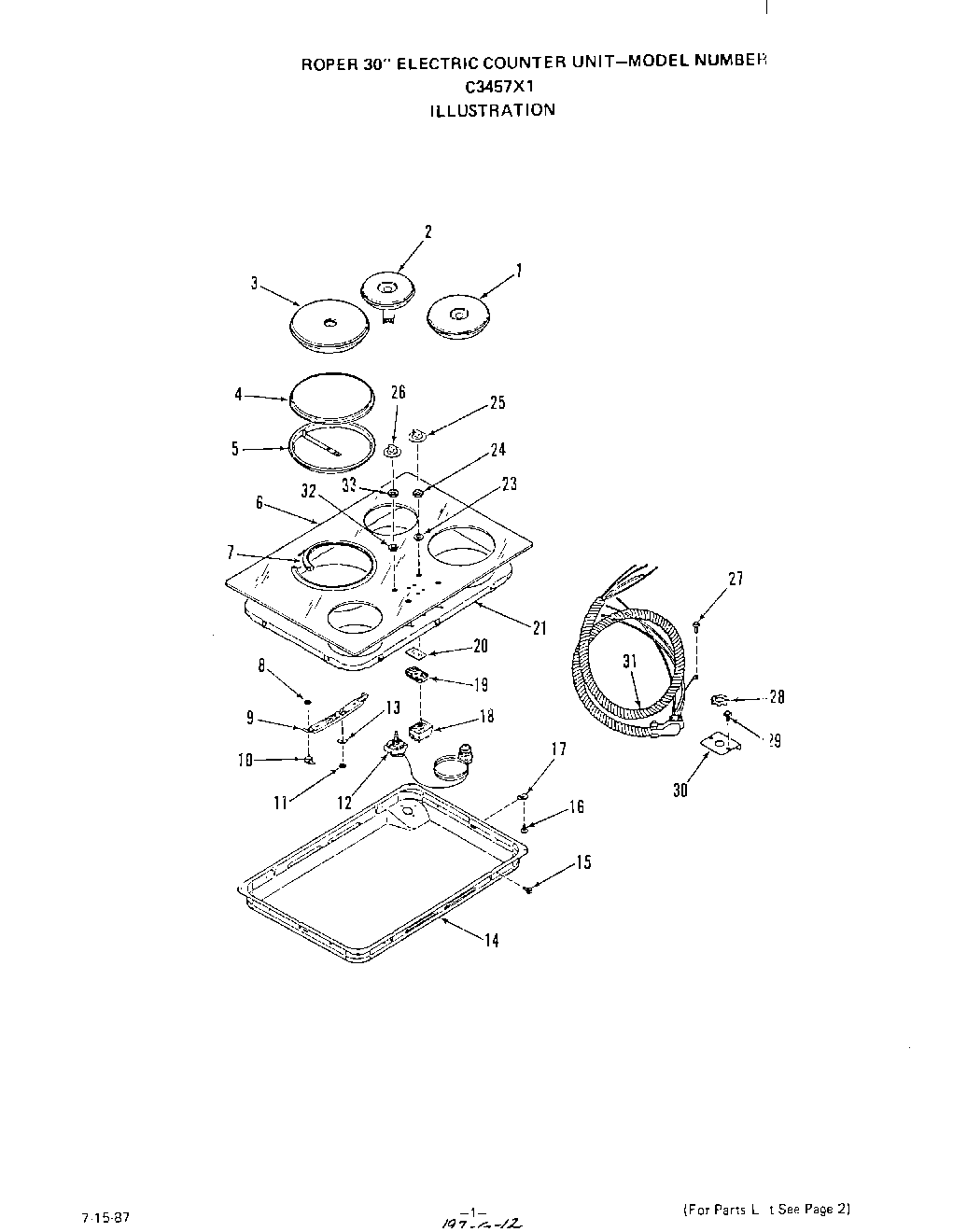

C3457^1 02 – ELEC COUNTER UNITadmin2025-04-26T10:51:27+00:00C3457^1 02 – ELEC COUNTER UNIT ProductsPositionProduct1Element-Hob (Large)2Element-Hob (Small)3Thermal Control Element (Lt. Rear)4Trim Ring (7`` (Rt. Front))4Trim Ring (6`` (Lt. Frt. or Rt. Rr.))4Trim Ring (9`` (Lt. Rear))5Gasket Ring (9``)5Gasket Ring (7``)5Gasket Ring (6``)6Main Top Glass7Element Seal (7`` (Rt. Front))7Element Seal (6`` (Lt. Frt. or Rt. Rr.))7Element Seal (9`` (Lt. Rear))8Nut9Element Clamp (Lt. Frt. or Rt. Rr.)9Element Clamp (Lt. Rear)9Element Clamp (Rt. Front)10Thermal Switch11Mounting Nut (2 Req)12Hob Element Thermostat13Spring Washer14Burner Box15Screw 10-16x7/16``16Screw 10-32x1``17Retainer Clip18Infinite Control (Rt. Frt.)18Infinite Control (Lt. Frt. & Rt. Rr.)19Indicator Light20Indicator Light Lens21Burner Box Top23Infinite Control Seal24Hex Nut25Infinite Control Knob26Thermostat Knob27Screw 10-32x7/16``28Nut (For Key 45)29Screw 10 - 32 x 7/16``30WPL 33348731Conduit Harness Asm.32Infinite Control Seal33Hex Nut
