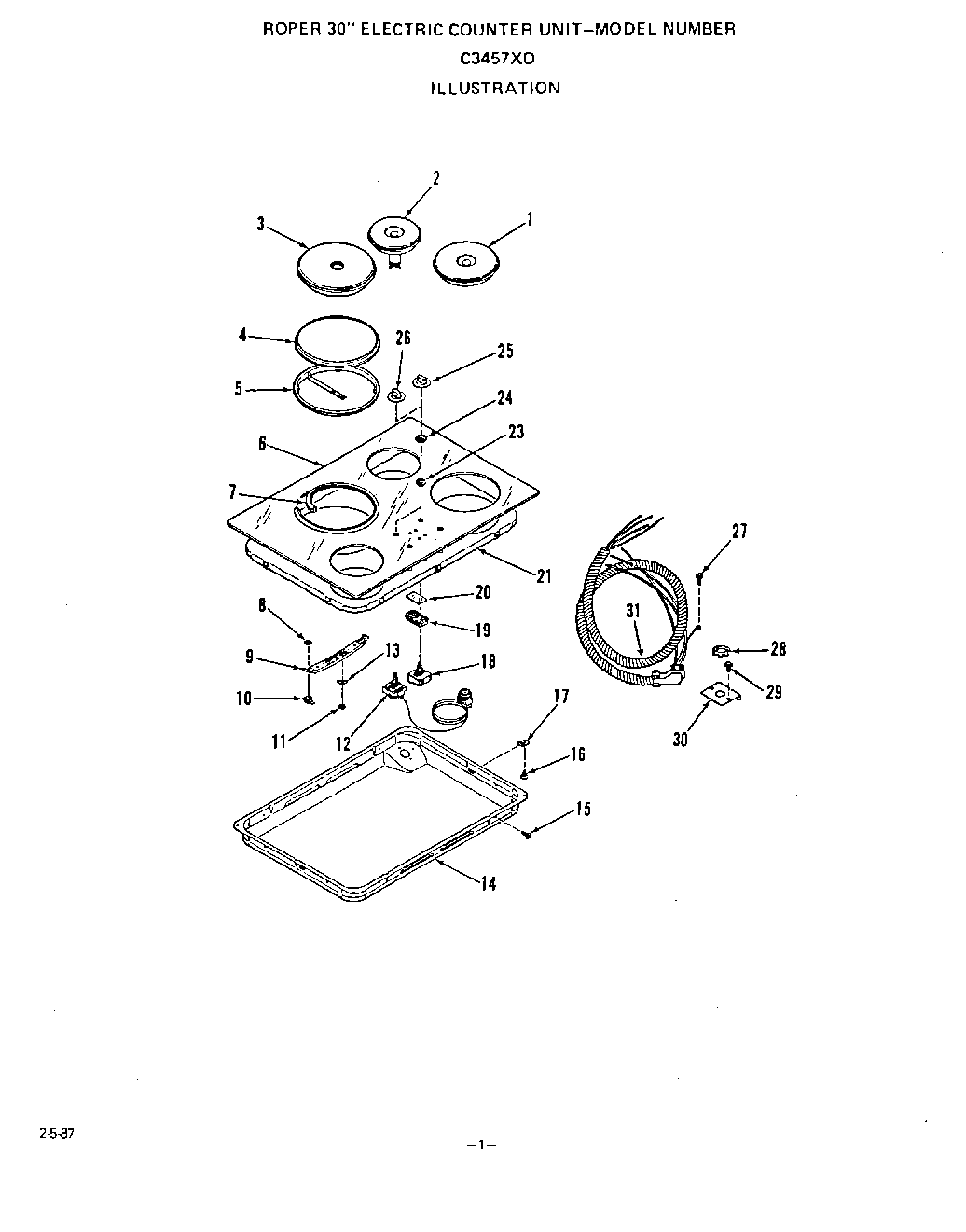

C3457X0 02 – ELEC COUNTER UNIT

Products

Position	Product
1	Element-Hob (Large)
2	Element-Hob (Small)
3	Thermal Control Element (Lt. Rear)
4	Trim Ring (6“ (Lt. Frt. or Rt. Rr.))
4	Trim Ring (7“ (Rt. Front))
4	Trim Ring (9“ (Lt. Rear))
5	Gasket Ring (9“)
5	Gasket Ring (7“)
5	Gasket Ring (6“)
6	Main Top Glass
7	Element Seal (6“ (Lt. Frt. or Rt. Rr.))
7	Element Seal (7“ (Rt. Front))
7	Element Seal (9“ (Lt. Rear))
8	Nut
9	Element Clamp (Lt. Frt. or Rt. Rr.)
9	Element Clamp (Rt. Front)
9	Element Clamp (Lt. Rear)
10	Thermal Switch
11	Mounting Nut (2 Req)
12	Hob Element Thermostat
13	Spring Washer
14	Burner Box
15	Screw 10ABx1/2“
16	Screw 10-32×1“
17	Retainer Clip
18	Infinite Control
19	Indicator Light
20	Indicator Light Lens
21	Burner Box Top
23	Infinite Control Seal
24	Hex Nut
25	Infinite Control Knob
26	Thermostat Knob
27	Screw 10-32×7/16“
28	Nut (For Key 45)
29	Screw 10 – 32 x 7/16“
30	WPL 333487
31	Conduit Harness Asm.
