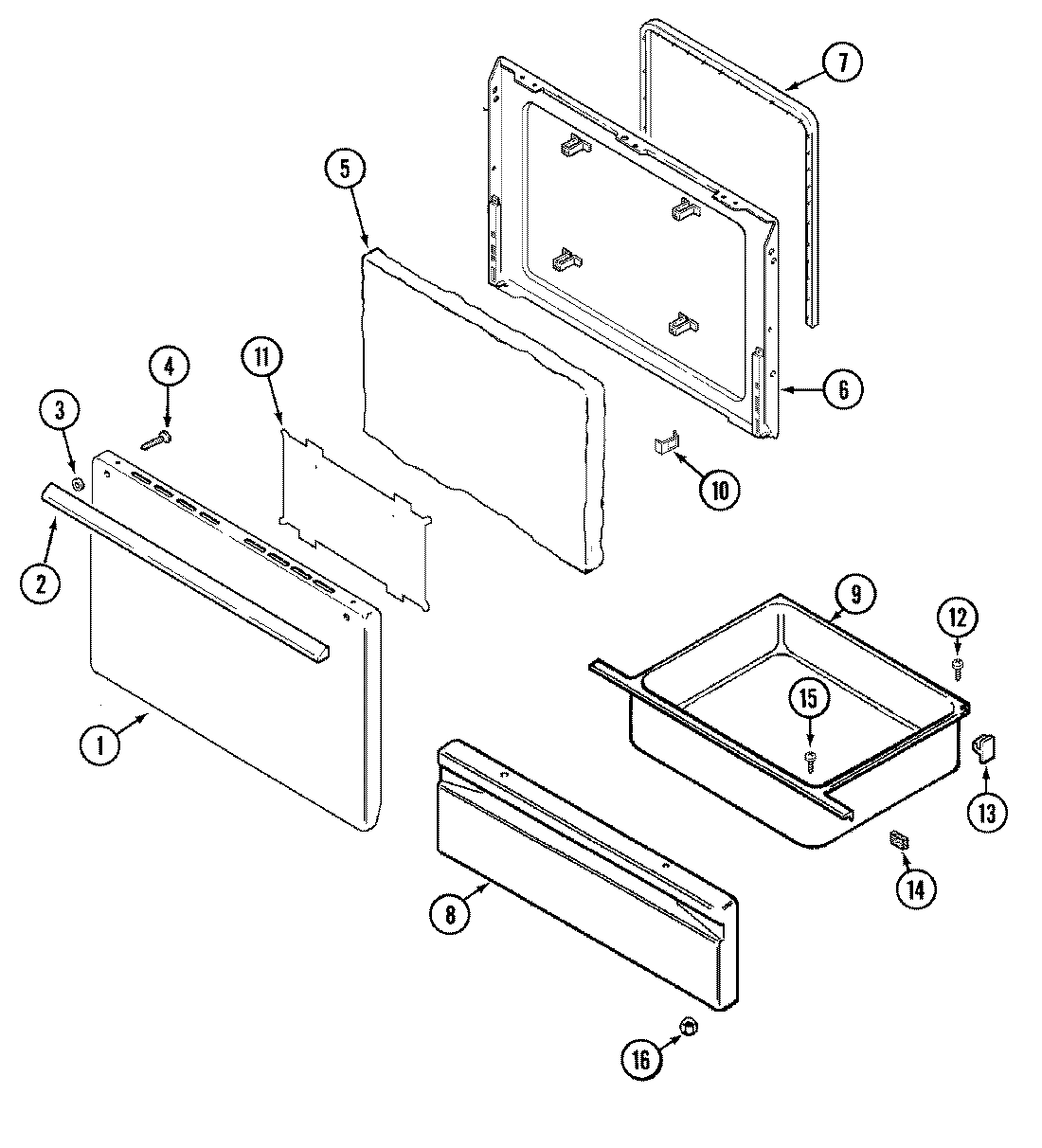

C3510PVV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74002282
1	PANEL, DOOR (WHT)
1	MAY 7101P290-60
2	WP2411F013-71 Whirlpool Door Handle
3	WP74005058 Whirlpool Spacer Assembly
4	MAY 7101P080-60
5	MAY 4804F011-60
6	MAY 74003240
6	MAY 2402W201-19
6	MAY 74002396
7	WP7212P043-60 Whirlpool Oven Door Seal Gasket
8	MAY 2416F039-62
9	MAY 74003618
9	MAY 3405F015-80
10	CLIP, DOOR
11	MAY 3601F250-51
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	MAY 7101P291-60
13	WP488130 Whirlpool Air Conditioner Nut
13	WP8004P026-60 Whirlpool Support
13	MAY 74003566
14	MAY 7208P011-60
15	WP4159193 Whirlpool Screw
16	WPW10131078 Whirlpool Nut Assembly
