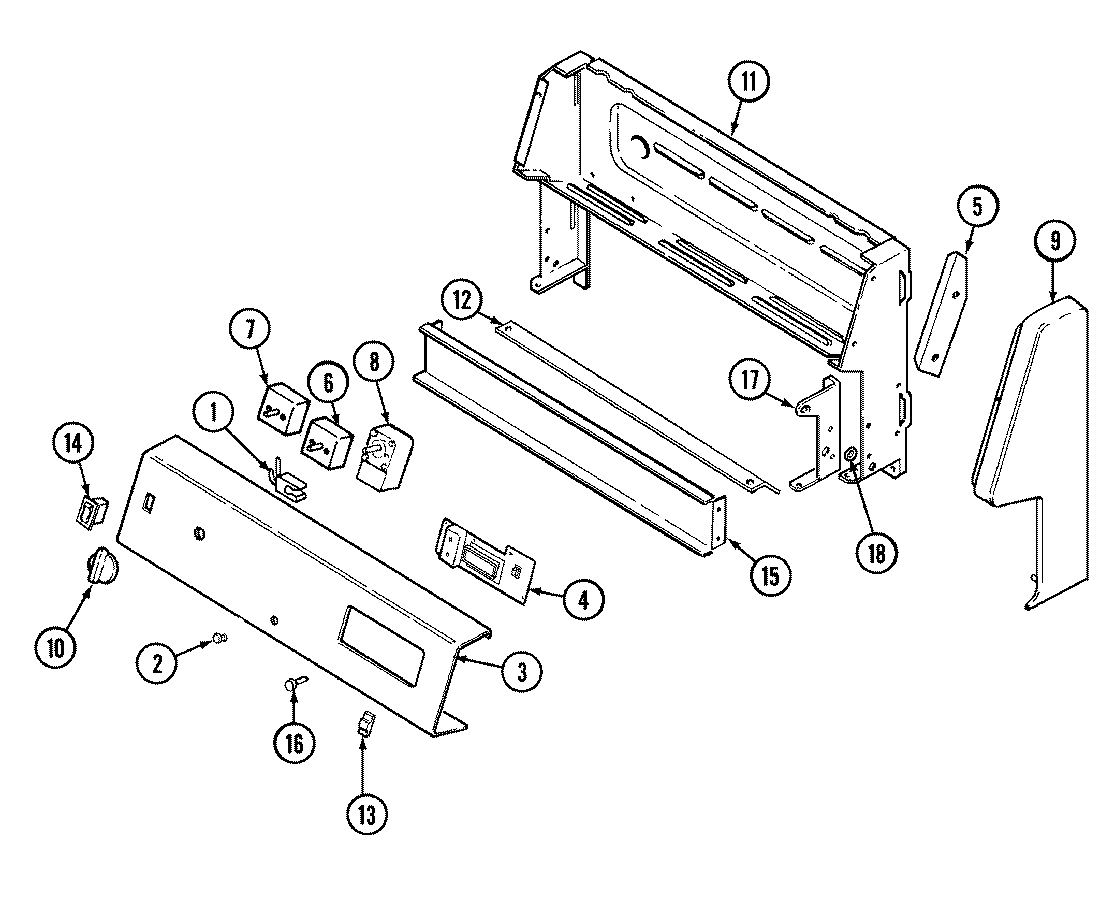

C3521WRV 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 16000329
NI	MAY 5170D145-60
NI	MAY 8113P052-60
NI	MAY 74001013
1	MAY 7407P081-60
1	W10852510 Whirlpool Indicator Light
2	W11690131 Whirlpool Light Lens
2	W11690159 Whirlpool Handle
3	MAY 7118P013-60
3	MAY 4876S047-59
4	MAY 7101P293-60
4	MAY 7602P104-60
5	MAY 3807F436-45
5	MAY 3807F435-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	MAY 7404P081-60
8	SCREW
9	MAY 7726P089-60
9	MAY 7101P318-60
9	MAY 7726P078-60
9	MAY 7726P077-60
9	MAY 7726P090-60
10	MAY 7731P081-60
11	MAY 4001F091-51
12	MAY 3604F201-80
13	MAY 7711P472-60
14	MAY 7403P314-60
15	MAY 7118P015-60
15	MAY 3802F087-51
16	MAY 7711P473-60
17	MAY 3418D097-60
17	MAY 3418D098-60
18	WP3195558 Whirlpool Nut
