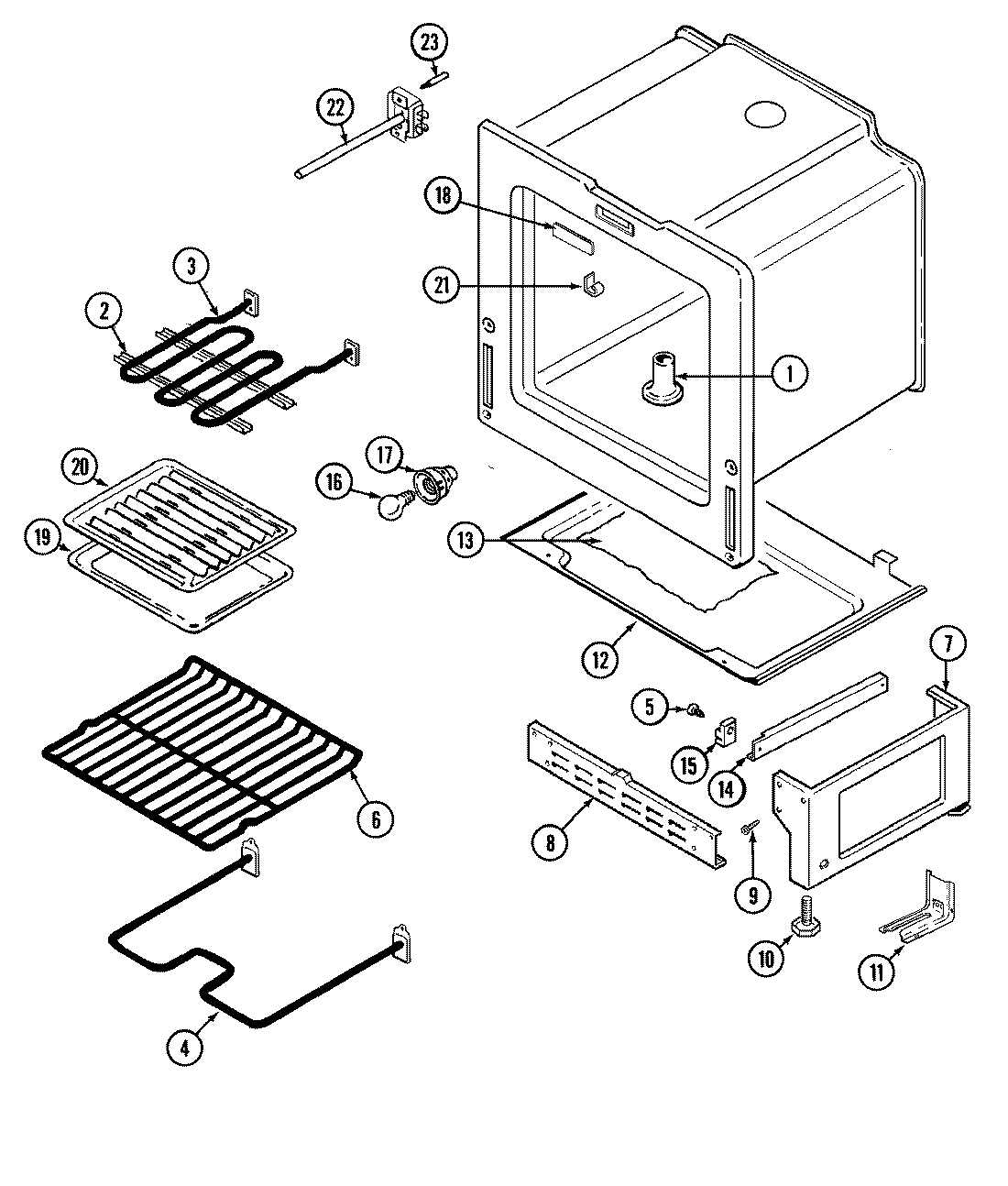

| 1 | MAY 7101P290-60 |
| 1 | MAY 8026P019-60 |
| 2 | MAY 7101P300-60 |
| 2 | MAY 3807F389-45 |
| 3 | MAY 7406P072-60 |
| 4 | MAY 7406P064-60 |
| 5 | MAY 74001449 |
| 5 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 6 | MAY 7801P036-60 |
| 7 | MAY 4020W007-80 |
| 7 | MAY 74003016 |
| 8 | MAY 4020F001-80 |
| 9 | SCREW |
| 10 | MAY 7101P306-60 |
| 10 | W11665456 Whirlpool Range Level Foot |
| 11 | MAY 3801F218-51 |
| 12 | MAY 3804F109-51 |
| 13 | MAY 8312P058-60 |
| 14 | RUNNER, DRAWER |
| 14 | MAY 3406F028-51 |
| 15 | WP488130 Whirlpool Air Conditioner Nut |
| 15 | MAY 74003566 |
| 15 | MAY 8004P025-60 |
| 16 | MAY 7407P095-60 |
| 17 | WP7407P182-60 Whirlpool Lamp |
| 18 | MAY 8114P335-60 |
| 19 | MAY Y3401F02019 |
| 20 | MAY Y3413F01619 |
| 21 | WP7112P004-60 Whirlpool Thermal Clip |
| 22 | MAY 7404P057-60 |
| 23 | MAY 7101P337-60 |
