C3521XRA 04 – DOOR/DRAWER (SERIES 45)

C3521XRA 04 – DOOR/DRAWER (SERIES 45)

Written by

in

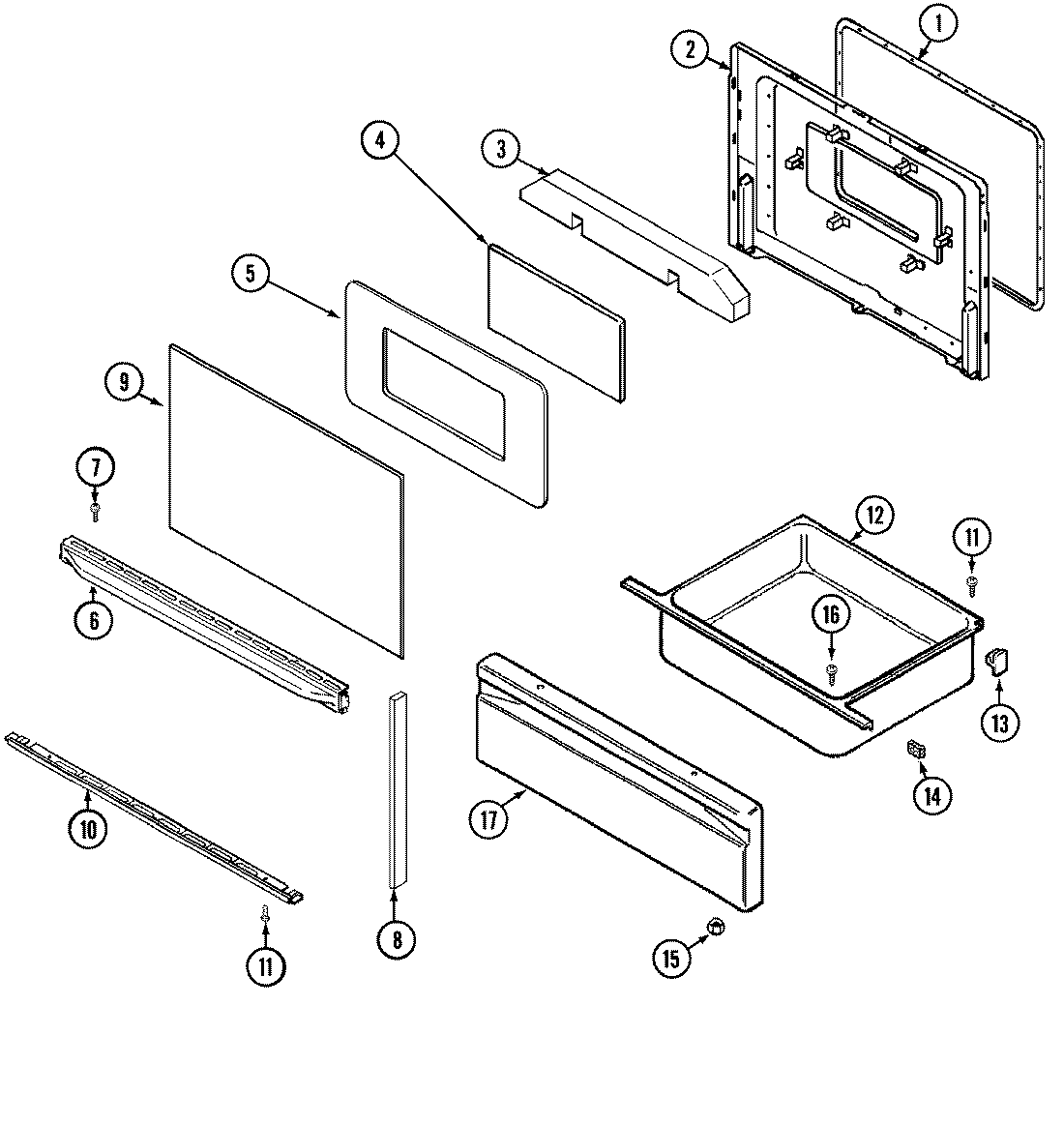

C3521XRA 04 – DOOR/DRAWER (SERIES 45)

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2MAY 74002785
3MAY 74002458
4MAY 74002459
5MAY 74002461
6MAY 7701P144-60
7WP98008545 Whirlpool Screw
8MAY 74002084
9MAY 7902P321-60
10MAY 7744P105-60
11SCREW
12MAY 3405F015-80
13WP8004P026-60 Whirlpool Support
14WP854334 Whirlpool Air Conditioner Sealing Strip
15WPW10131078 Whirlpool Nut Assembly
16WP7101P072-60 Whirlpool Screw
17MAY 2416F039-64
