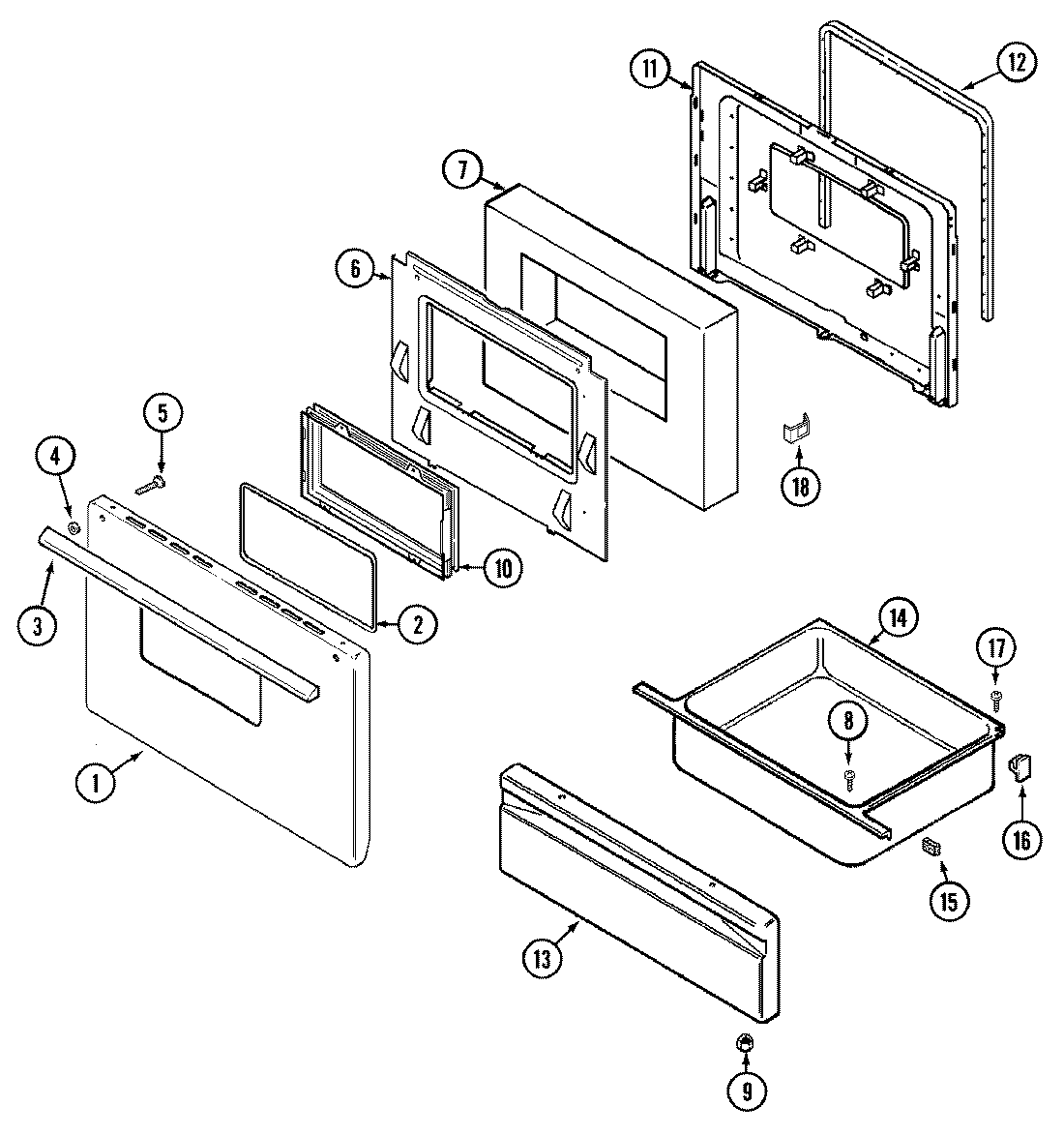

C3523WVV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 2401F121-71
2	MAY 7201P017-60
3	WP2411F013-71 Whirlpool Door Handle
4	WP74005058 Whirlpool Spacer Assembly
5	MAY 7101P080-60
6	MAY 3601F236-47
7	MAY 4804F050-60
8	MAY 7101P291-60
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7907P022-60
11	MAY 2402W212-19
11	MAY 74003248
12	MAY 7212P034-60
13	MAY 2416F039-62
14	MAY 74003618
14	MAY 3405F015-80
15	MAY 8010P086-60
16	WP8004P026-60 Whirlpool Support
16	MAY 74003566
16	WP488130 Whirlpool Air Conditioner Nut
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	SCREW
18	CLIP, DOOR
