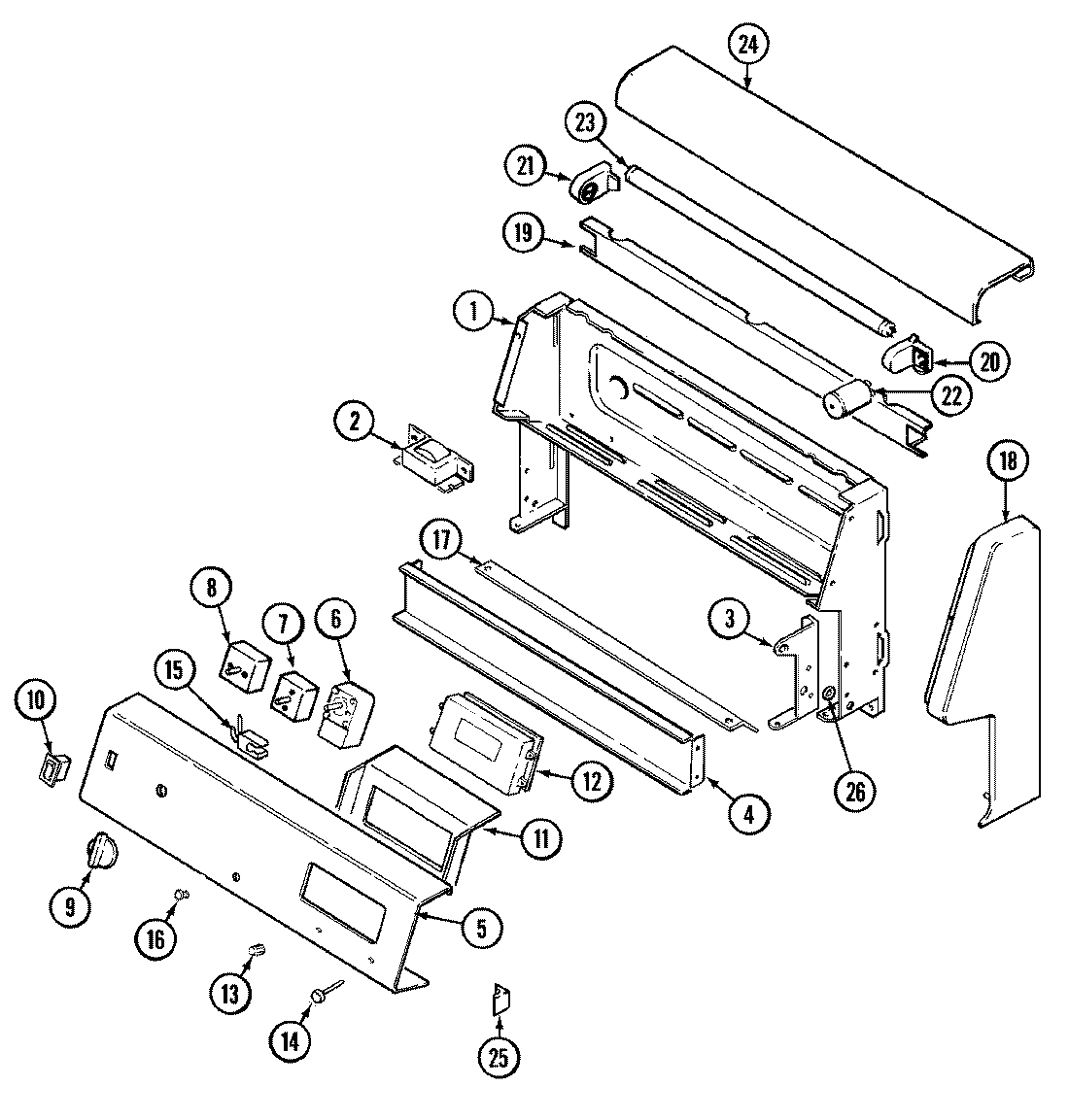

C3581VRV 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 5170D145-60
NI	MAY 5125A336-60
NI	MAY 8113P030-60
1	MAY 4001F094-51
2	MAY 7118P015-60
2	MAY 7412P007-60
3	MAY 3418A088-34
3	MAY 3418A087-34
4	MAY 3802F088-51
5	MAY 4876S060-59
5	MAY 7118P019-60
6	WP7404P105-60 Whirlpool Thermostat
6	SCREW
7	WP7403P255-60 Whirlpool Selector Switch
8	WP7403P239-60 Whirlpool Oven Switch
8	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9	WP74003611 Whirlpool Oven White Knob
10	MAY 7403P314-60
11	MAY 3801F247-45
12	MAY 8004P035-60
12	WP8312P015-60 Whirlpool Knob Shaft
12	MAY 7602P095-60
13	MAY 7711P432-60
14	MAY 7711P447-60
15	W10852510 Whirlpool Indicator Light
15	MAY 7407P081-60
16	W11690159 Whirlpool Handle
16	W11690131 Whirlpool Light Lens
17	MAY 3604F201-80
18	MAY 7726P073-60
18	MAY 7726P074-60
19	MAY 3807F406-71
20	MAY 7408P029-60
21	MAY 7408P030-60
22	MAY 7415P001-60
23	MAY 7407P004-60
24	MAY 7724P059-60
25	MAY 8010P083-60
26	MAY 7103P129-60
