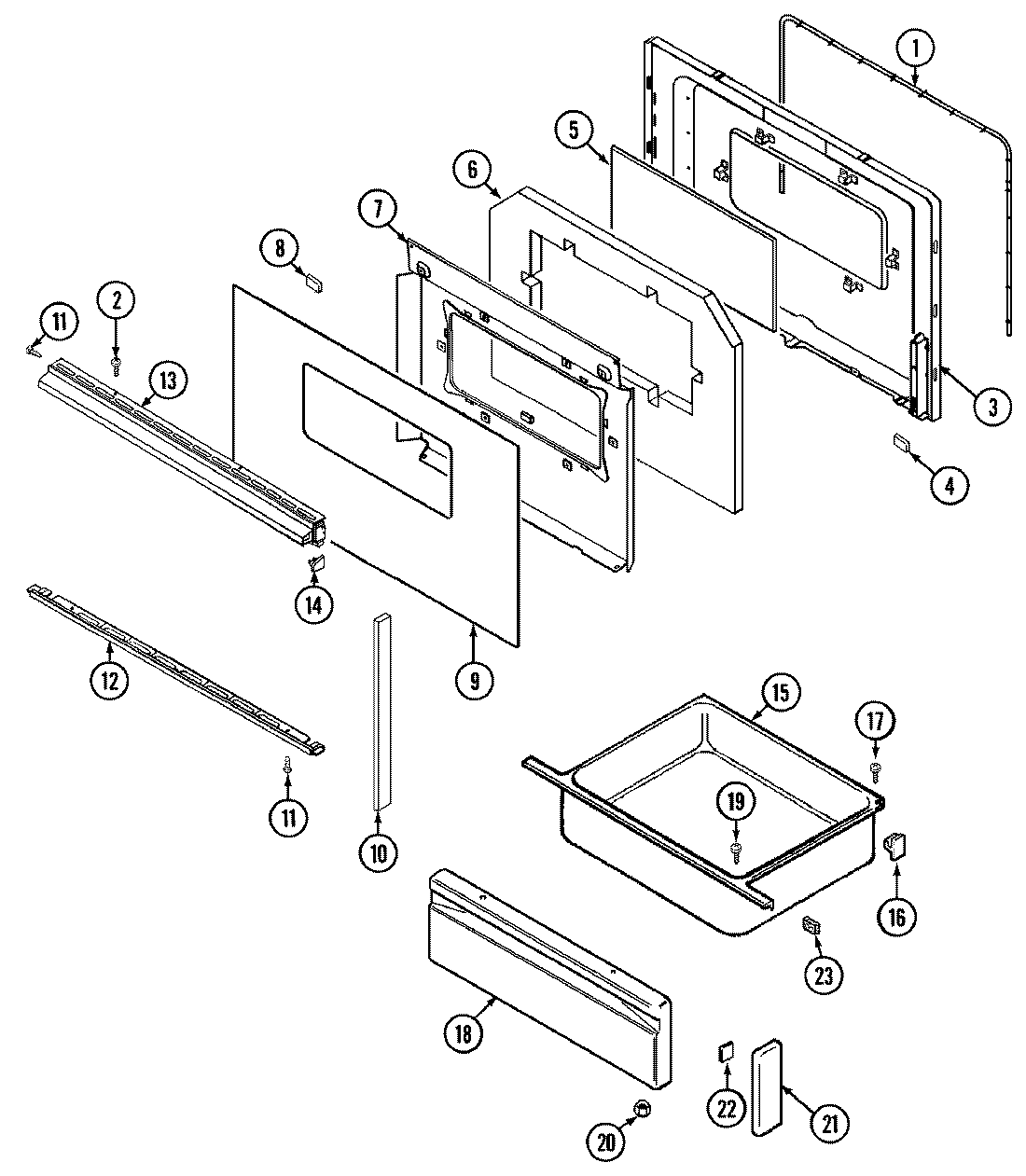

C3581VRV 03 – DOOR/DRAWER (SER. PRE. 24)

Products

Position	Product
1	WP7212P043-60 Whirlpool Oven Door Seal Gasket
2	MAY 7101P308-60
3	MAY 2402W213-19
4	MAY 8010P085-60
5	MAY 7902P319-60
6	MAY 7002P158-60
7	MAY 3601F240-80
7	MAY 7101P209-60
8	MAY 8270P095-60
9	MAY 7902P328-60
10	MAY 7744P065-60
12	MAY 7744P103-60
13	MAY 7701P104-60
14	MAY 7744P075-60
14	MAY 7744P076-60
15	MAY 3405F014-80
16	WP8004P026-60 Whirlpool Support
17	MAY 7101P290-60
18	MAY 2416F039-62
19	WP7101P072-60 Whirlpool Screw
20	WPW10131078 Whirlpool Nut Assembly
21	MAY 7744P069-60
22	TAPE
23	MAY 7208P011-60
