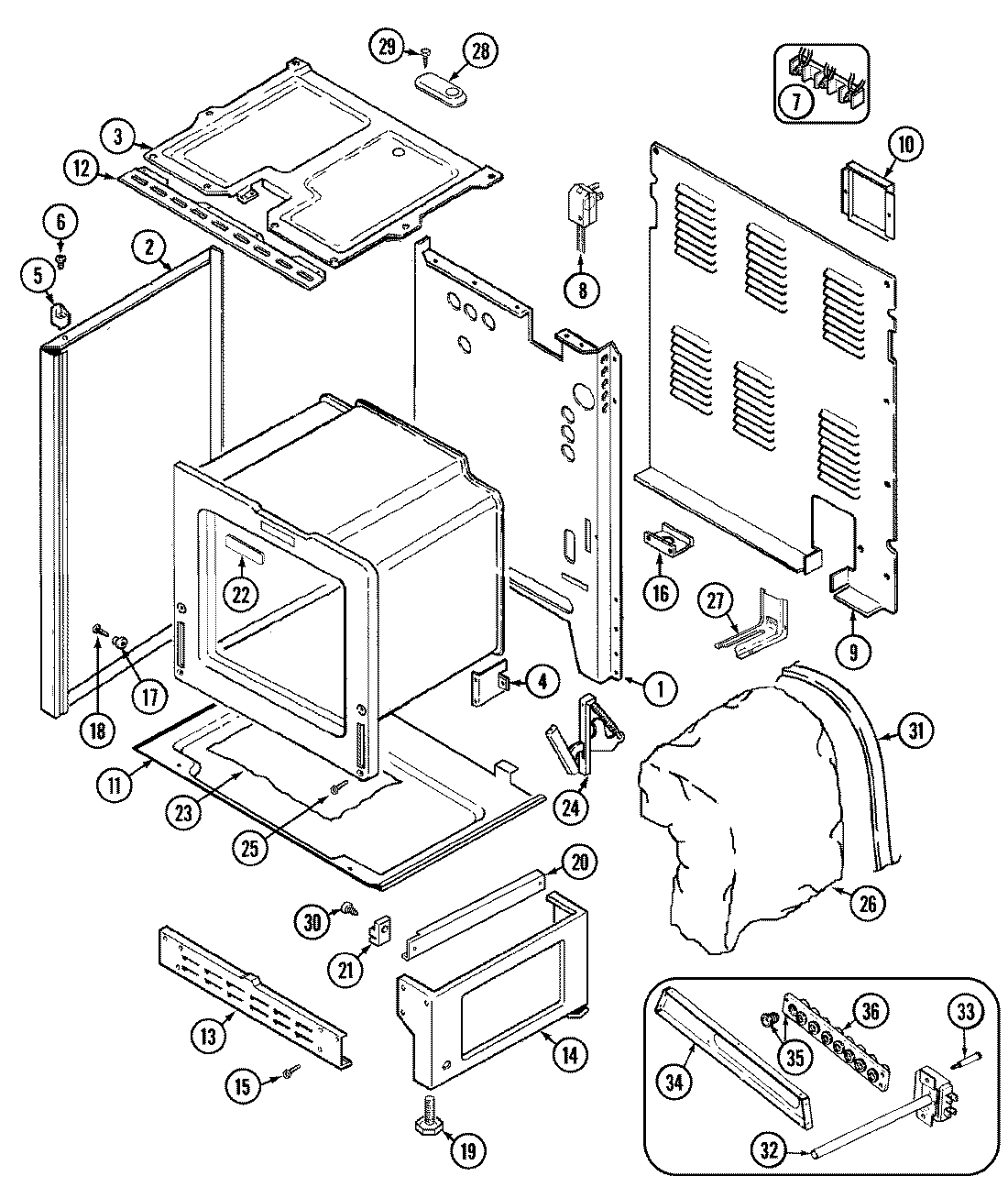

C3581VUV 01 – BODY
Written by
in
C3581VUV 01 – BODY
Products
Position
Product
1
MAY 74001772
1
MAY 7101P337-60
1
MAY 74002334
1
MAY 3604F218-51
2
MAY 74001884
3
MAY 4011F239-19
4
SUPPORT,OVEN REAR
5
SPACER, MAIN TOP (RT)
5
SPACER, MAIN TOP (LT)
6
MAY 7101P313-60
7
MAY 7401P038-60
8
MAY 7402P050-60
9
MAY 4005F454-51
10
MAY 4005F427-51
11
MAY 3804F112-51
12
MAY 3801F305-80
13
MAY 4020F001-80
14
MAY 4020W017-80
16
MAY 3605F174-51
17
MAY 8004P024-60
18
MAY 7101P336-60
19
MAY 74001311
20
MAY 3406F028-51
21
MAY 8004P033-60
22
MAY 7718P013-60
23
MAY 8312P058-60
24
MAY 7106P055-60
25
SCREW (10-24X5/16-NI)
26
MAY 4804F039-60
26
MAY 4804F044-60
27
MAY 7101P344-60
27
MAY 3801F218-51
28
COVER, VENT
30
MAY 74001449
31
MAY 4820F001-59
32
MAY 7404P057-60
34
MAY 3801F309-80
35
MAY 7401A032-60
35
MAY 7103P064-60
35
MAY 7101P068-60
36
MAY 4005F445-51
36
MAY 7401P031-60
36
SCREW
←
