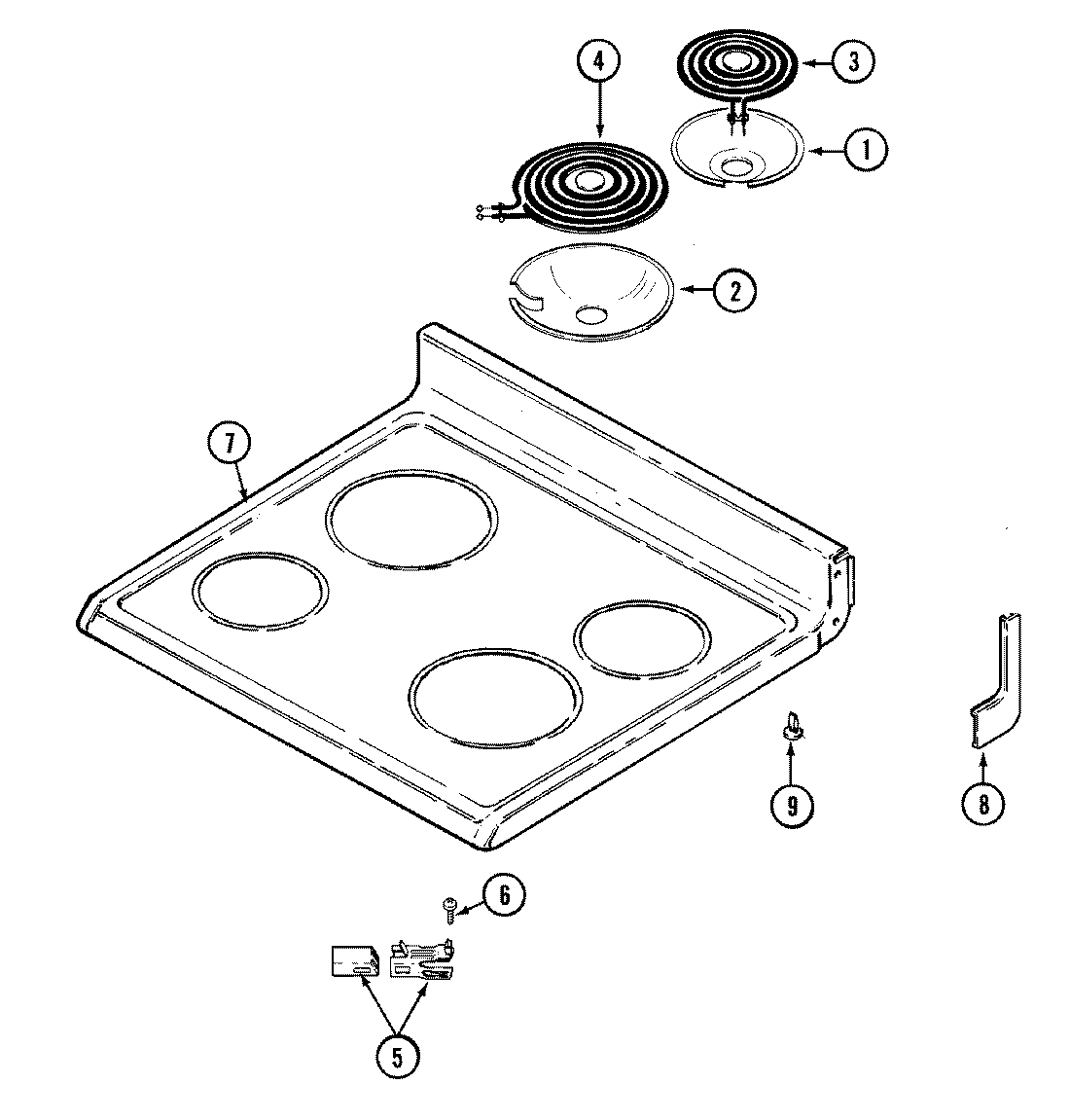

C3581VUV 05 – TOP ASSEMBLY

C3581VUV 05 – TOP ASSEMBLY

Written by

in

C3581VUV 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7725P048-60
1WPW10196406 Whirlpool 6" Chrome Drip Bowl
1WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2MAY 7725P047-60
2DRIP BOWL 8" W/HOLE CHROME
3WPW10259868 Whirlpool Surface Heating Element
3MAY 74001776
4MAY 74001774
4MAY 7406P080-60
5MAY 1430306K
6SCREW
7MAY 2002W103-81
8WP3195558 Whirlpool Nut
8MAY 7746P033-60
8MAY 7746P032-60
9MAY 8016P015-60
