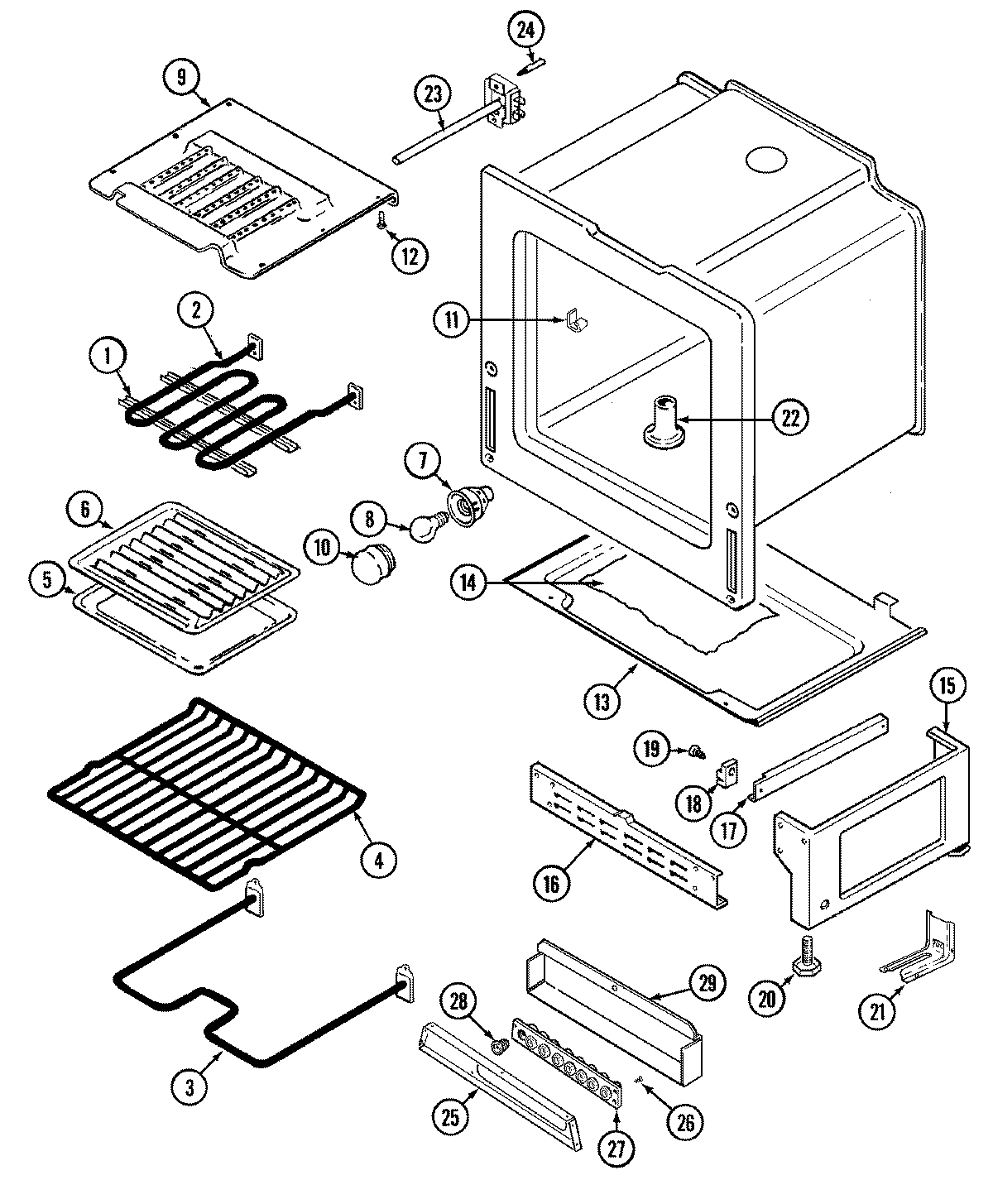

C3842XRA 04 – OVEN/BASE

C3842XRA 04 – OVEN/BASE

Written by

in

C3842XRA 04 – OVEN/BASE

Products

PositionProduct
1WP400021-1 Whirlpool Screw
1MAY 3807F387-45
2MAY Y04000057
3MAY Y04000058
4WPW10282492 Whirlpool Oven Rack
5MAY Y3401F02019
6MAY Y3413F01619
7WP7407P182-60 Whirlpool Lamp
8MAY 7407P095-60
9MAY 3601F237-47
10WP9781049 Whirlpool Light Lens
11WP7112P004-60 Whirlpool Thermal Clip
13MAY 3804F112-51
14MAY 8312P058-60
15MAY 74001669
16MAY 4020F001-80
17MAY 3406F028-51
18MAY 74002312
19MAY 74001449
20MAY 74001311
21MAY 3801F218-51
21WP7101P485-60 Whirlpool Anchor Tip
22SCREW
22MAY 8026P019-60
23MAY 7403P160-60
23MAY 7404P057-60
24MAY 7101P337-60
25MAY 3801F309-80
26MAY 7101P068-60
27MAY 7401P031-60
28MAY 7416P006-60
28MAY 7416P005-60
29MAY 4005F417-51
