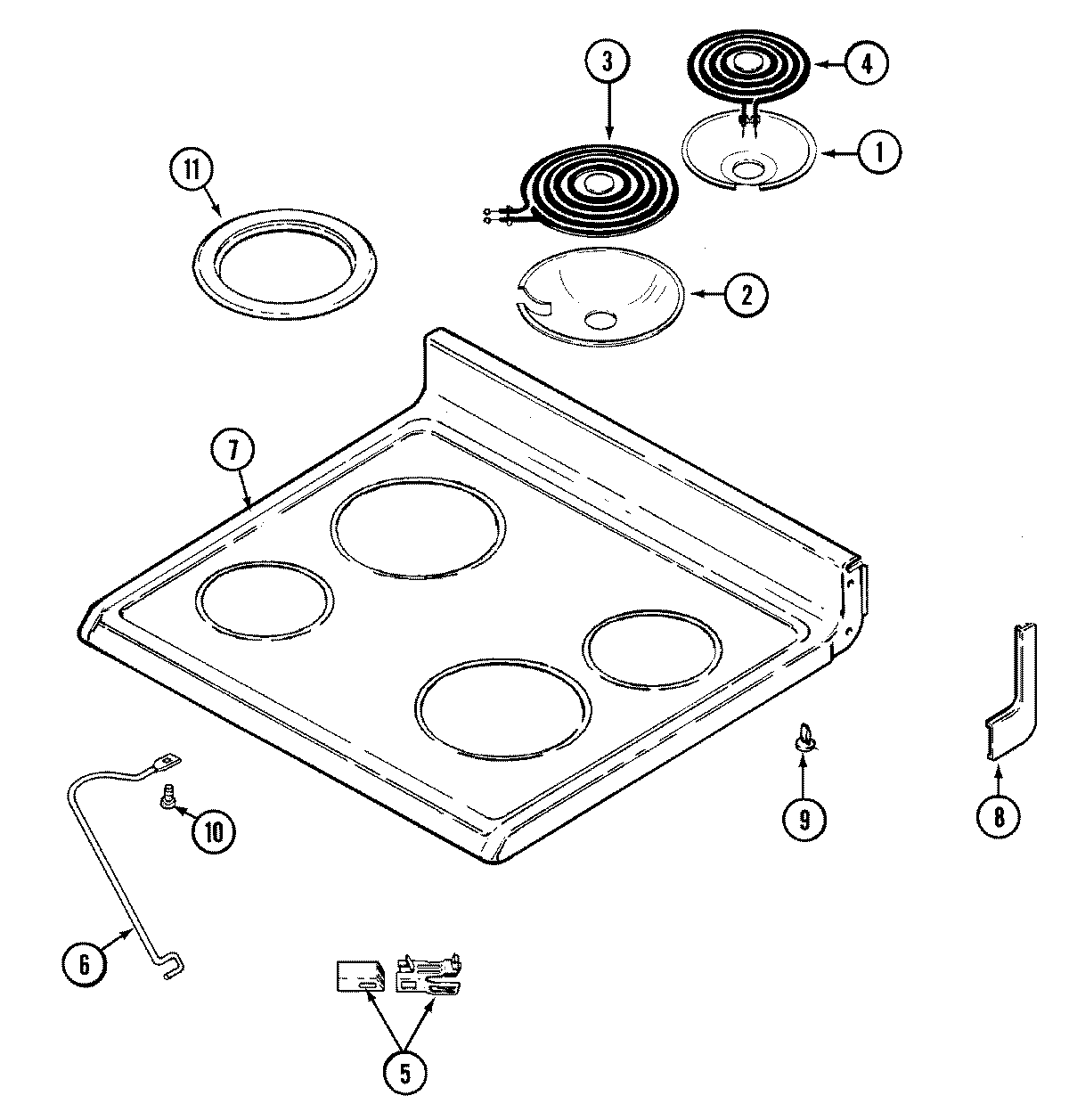

C3842XRW 05 – TOP ASSEMBLY
Written by
in
C3842XRW 05 – TOP ASSEMBLY
Products
Position
Product
1
MAY 74002961
1
MAY 7725P022-60
1
MAY 7725P040-60
2
MAY Y04100393
2
MAY 7725P023-60
3
MAY 7406P088-60
3
MAY 7406P039-60
3
MAY 12001230
4
MAY 7406P087-60
4
WPW10259868 Whirlpool Surface Heating Element
4
MAY 7406P037-60
5
MAY 7118P013-60
5
MAY 1430306K
6
MAY 7809P014-60
7
MAY 2002W103-81
8
MAY 7746P030-60
8
MAY 74002563
8
MAY 7746P031-60
9
MAY 74001663
10
MAY 7101P280-60
11
MAY 7744P054-60
11
MAY 7744P053-60
11
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
←
