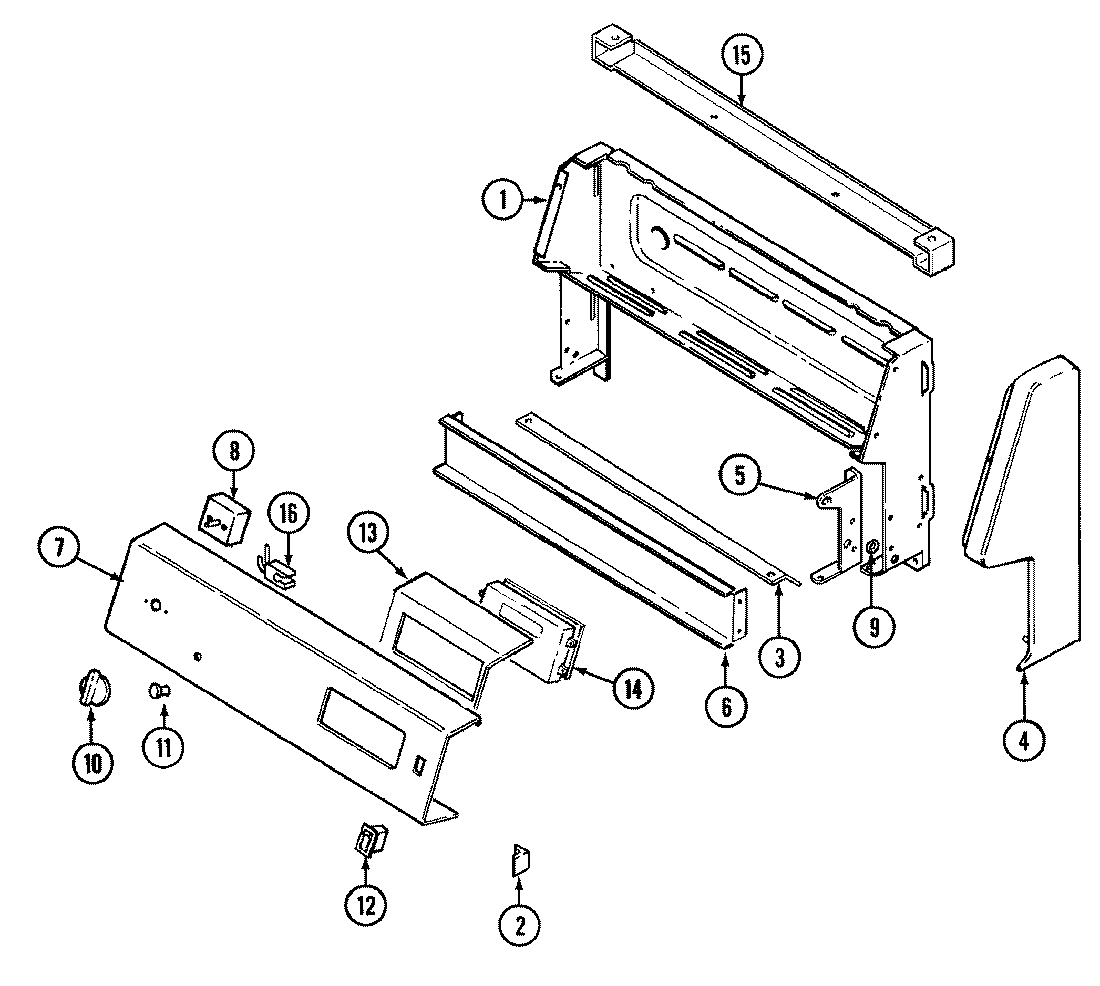

C3862XYB 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 74002480
NI	MAY 5195D082-60
NI	MAY 5170P205-60
NI	MAY 74002467
NI	MAY 74002476
NI	MAY 74001013
NI	MAY 74002479
NI	MAY 16000329
1	MAY 74002162
2	MAY 8010P083-60
3	MAY 3604F201-80
4	MAY 74001342
4	MAY 7726P046-60
4	MAY 7726P050-60
4	MAY 74001343
5	MAY 3807F454-51
5	MAY 3807F453-51
6	MAY 3802F088-51
7	MAY 7703P572-60
8	SCREW
8	WP7403P239-60 Whirlpool Oven Switch
8	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9	WP3195558 Whirlpool Nut
10	MAY 7731P082-60
11	W11690131 Whirlpool Light Lens
12	7403P067-60 Whirlpool Light Switch
13	MAY 74002080
13	WPY706189 Whirlpool Stove Screw
14	MAY 74002478
14	WP59002061 Whirlpool Microwave Screw
15	SCREW (8BX3/8-NI)
15	MAY 4001F064-51
16	W10852510 Whirlpool Indicator Light
