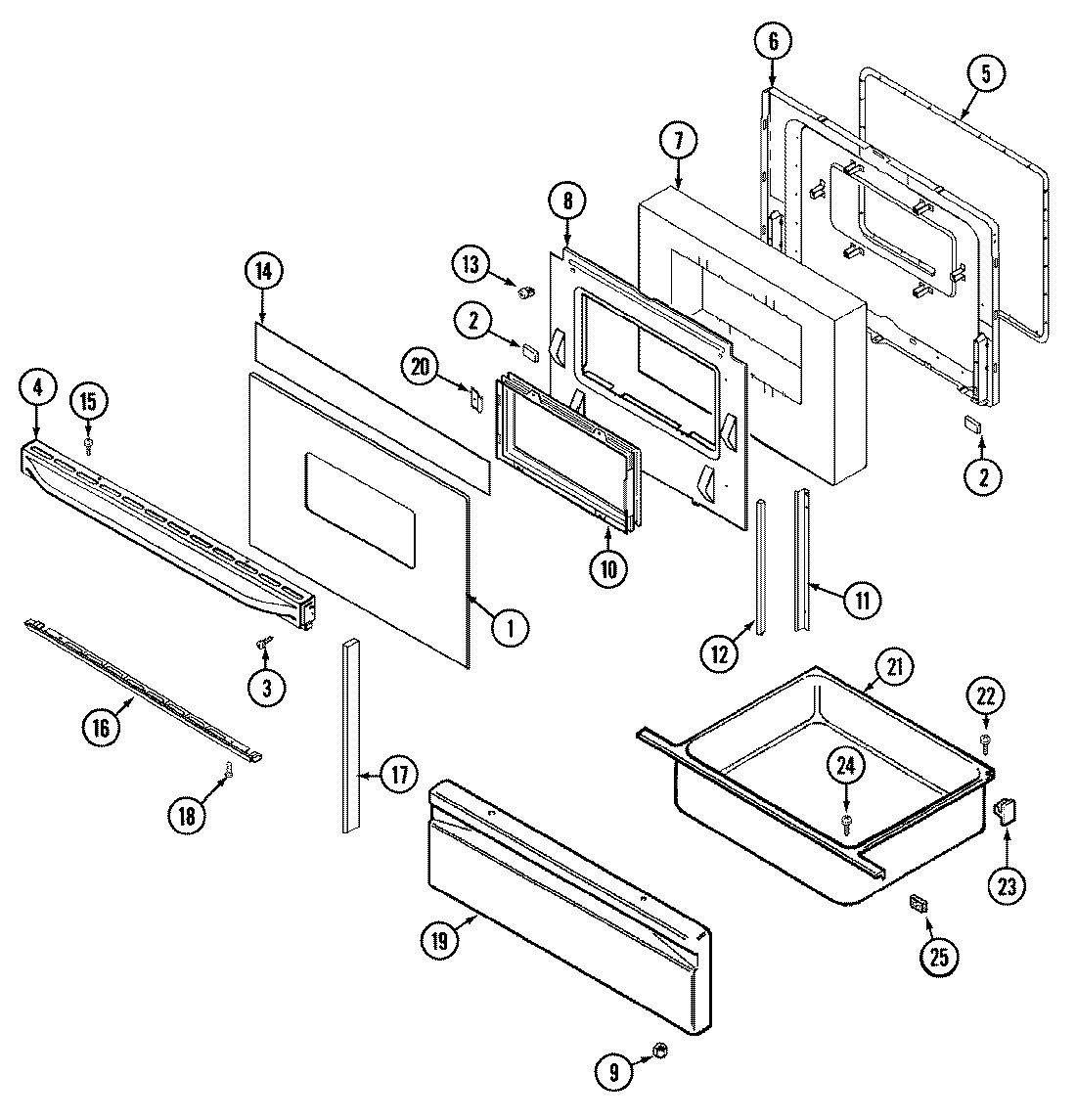

C3882VRV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P328-60
2	MAY 8010P085-60
3	WP3387230 Whirlpool Screw
4	MAY 7701P145-60
5	GASKT-DOOR OVEN
6	MAY 74001058
7	MAY 74001842
8	MAY 3601F236-51
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7907P021-60
11	MAY 3818F052-80
12	MAY 7208P002-60
13	MAY 7103P045-60
14	TAPE, FOIL (3`` WIDE)
15	MAY 7101P308-60
16	MAY 7744P103-60
17	MAY 7744P065-60
19	MAY 2416F039-62
20	MAY 3805F002-34
20	MAY 74001449
21	MAY 3405F019-80
23	WP8004P026-60 Whirlpool Support
24	SCREW
25	MAY 7208P011-60
