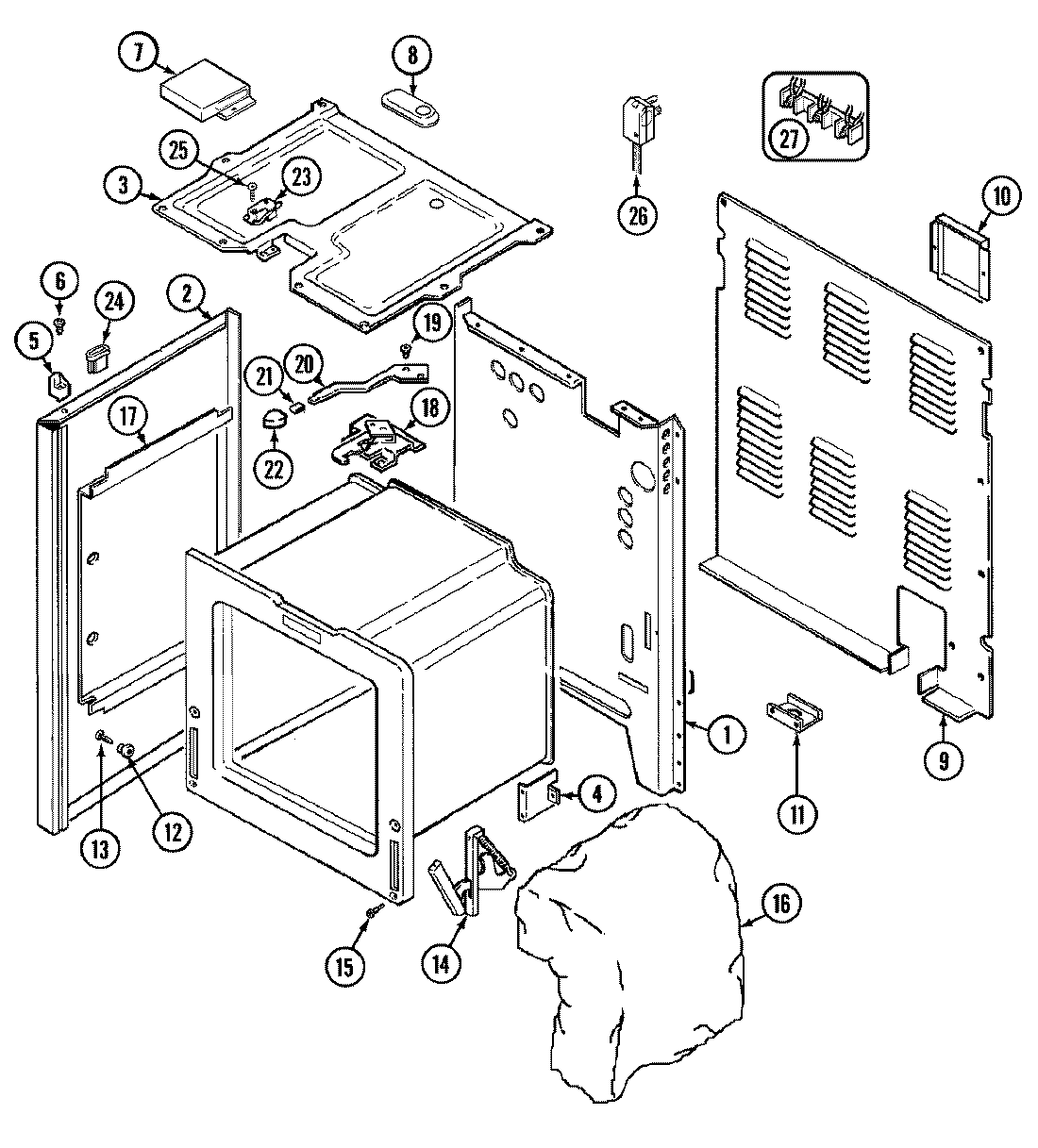

C3882XRA 01 – BODY

C3882XRA 01 – BODY

Written by

in

C3882XRA 01 – BODY

Products

Position	Product
1	MAY 7403P160-60
1	MAY 74001341
2	MAY 74001885
2	MAY 2618F085-74
3	MAY 4011F219-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7118P013-60
7	MAY 4005F398-80
8	SCREW
8	COVER, VENT
9	MAY 4005F348-51
10	MAY 4005F427-51
11	MAY 3605F174-51
12	MAY 8004P024-60
13	MAY 74001449
14	MAY 7106P033-60
15	SCREW, HINGE
16	MAY 4804F029-60
16	MAY 4804F030-60
17	MAY 3804F103-51
18	MAY 8002P025-60
18	MAY 7101P280-60
19	MAY 7109P015-60
19	SCREW, LEVER
20	MAY 8009P016-60
21	MAY 7112P003-60
22	MAY 7701P132-60
23	MAY 7403P228-60
23	MAY 7403P323-60
23	MAY 3604F203-45
23	MAY 7101P031-60
24	MAY 8007P023-60
26	MAY 7402P050-60
27	MAY 7401P041-60
