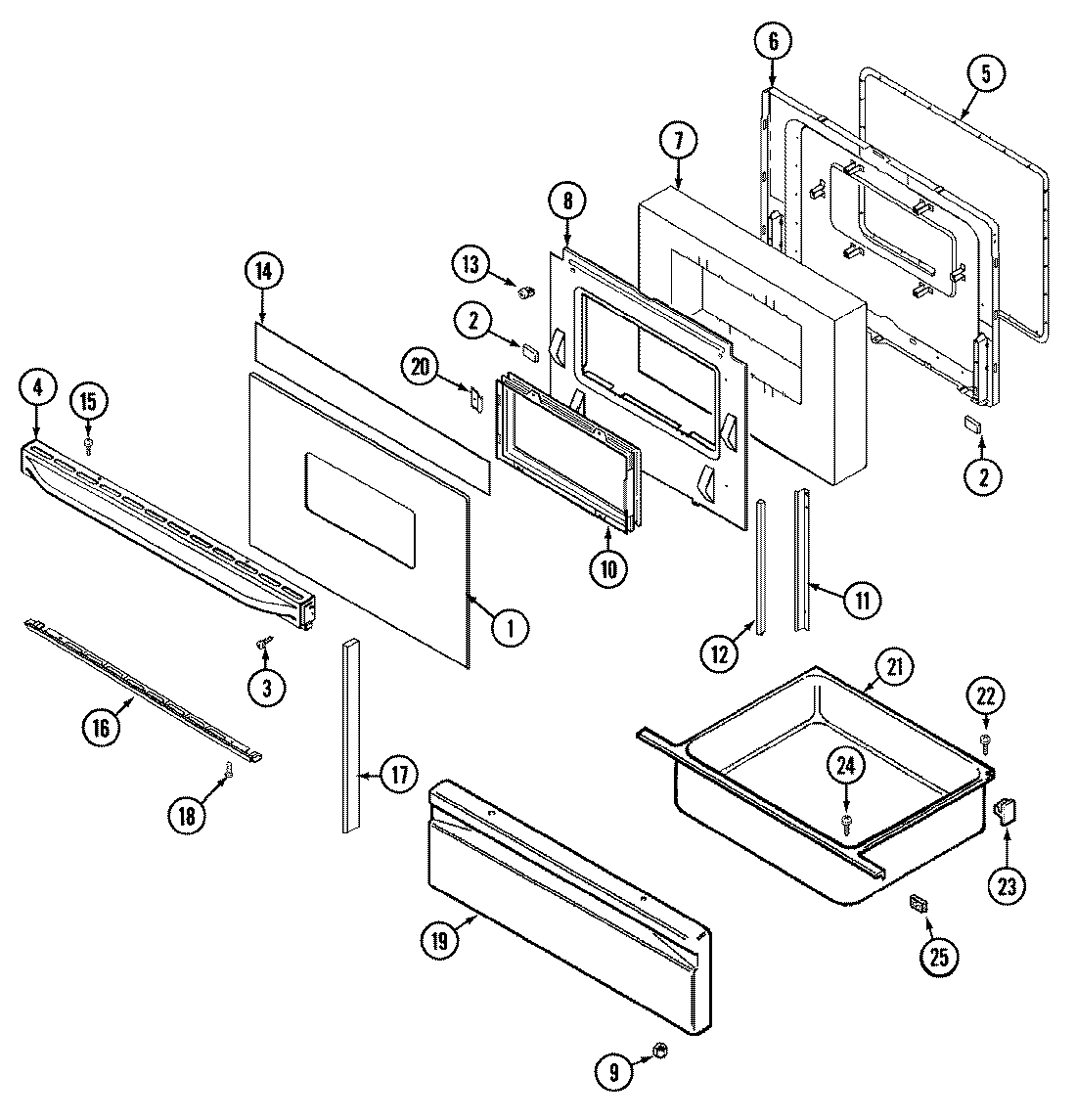

C3882XRA 03 – DOOR/DRAWER

C3882XRA 03 – DOOR/DRAWER

Written by

in

C3882XRA 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P321-60
2MAY 8010P085-60
3WP3387230 Whirlpool Screw
4MAY 7701P144-60
5GASKT-DOOR OVEN
6MAY 74001058
7MAY 74001842
8MAY 3601F236-51
9WPW10131078 Whirlpool Nut Assembly
10MAY 7907P021-60
11MAY 3818F052-80
12MAY 7208P002-60
13MAY 7103P045-60
14TAPE, FOIL (3“ WIDE)
15WP98008545 Whirlpool Screw
16MAY 7744P105-60
17MAY 7744P055-60
19MAY 2416F039-65
20MAY 3805F002-34
20MAY 74001449
21MAY 3405F019-80
23WP8004P026-60 Whirlpool Support
24SCREW
25MAY 7208P011-60
