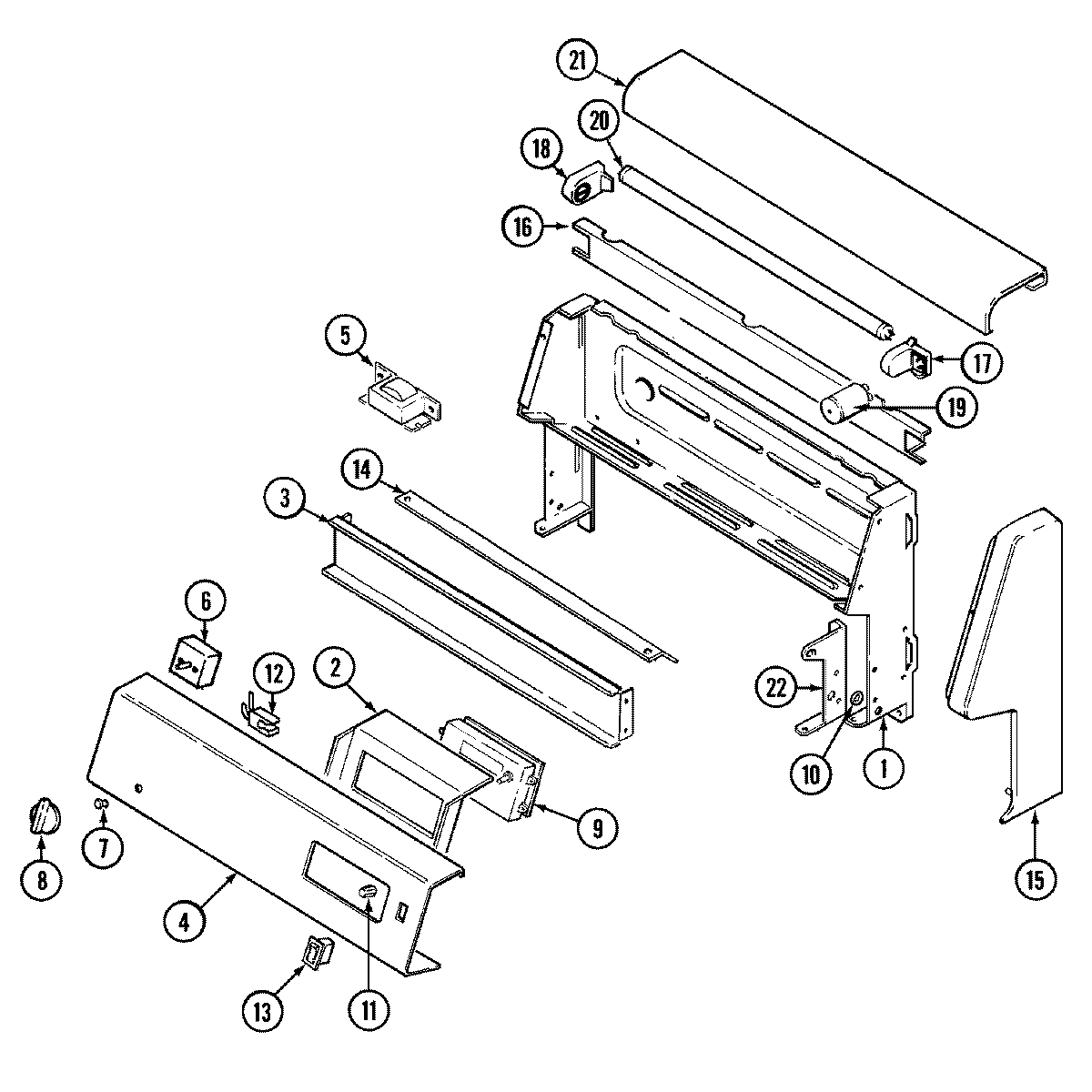

C3882XVA 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 74001427
NI	MAY 5170P205-60
NI	MAY 74001009
NI	MAY 5125A382-60
NI	MAY 5170D201-60
NI	MAY 8113P068-60
NI	MAY 5175D049-60
NI	MAY 16000329
1	MAY 4001F091-51
2	MAY 3801F337-45
3	MAY 3802F088-51
4	MAY 7703P584-60
4	WPY706189 Whirlpool Stove Screw
5	MAY 7412P007-60
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
6	SCREW
7	W11690131 Whirlpool Light Lens
8	MAY 7731P082-60
9	MAY 7601P228-60
9	MAY 7101P148-60
10	WP3195558 Whirlpool Nut
11	WP7711P492-60 Whirlpool Clock Knob
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	W10852510 Whirlpool Indicator Light
13	7403P067-60 Whirlpool Light Switch
14	SCREW (8BX3/8-NI)
14	MAY 3604F201-80
15	MAY 7726P047-60
15	MAY 7726P048-60
16	MAY 3807F406-71
17	MAY 7408P029-60
18	MAY 7408P030-60
19	MAY 7415P001-60
20	MAY 7407P004-60
21	MAY 7724P054-60
22	MAY 3418D097-60
22	MAY 3418D098-60
