C3888VRV 01 – BODY
Written by
in

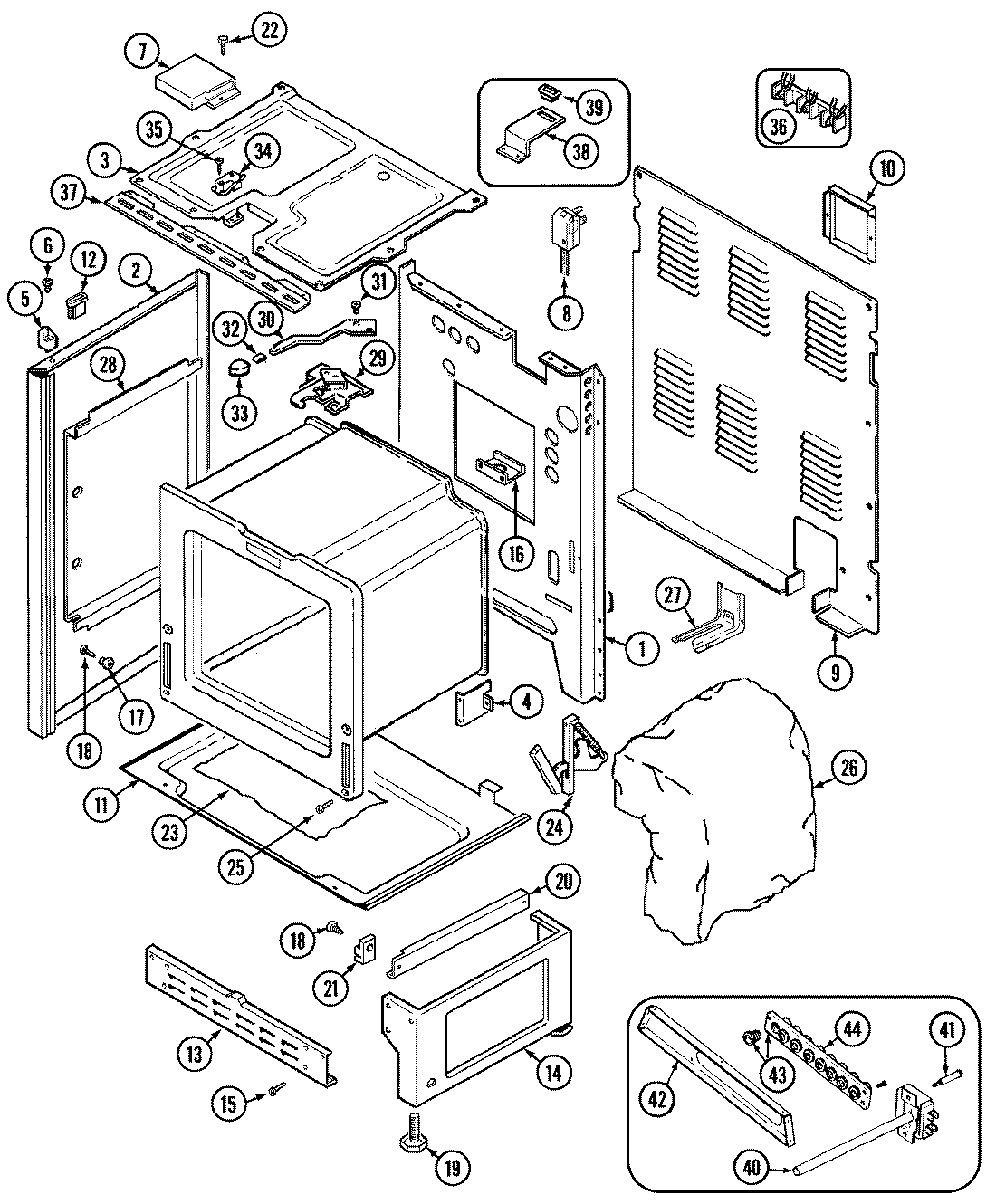

C3888VRV 01 – BODY
Products
Position
Product
1
MAY 74001341
1
MAY 4002F203-80
1
MAY 7403P160-60
2
MAY 2618F110-71
2
MAY 2618F085-71
3
MAY 4011F207-19
4
SUPPORT,OVEN REAR
5
SPACER, MAIN TOP (RT)
5
SPACER, MAIN TOP (LT)
6
MAY 7118P013-60
7
MAY 4005F398-80
8
MAY 7402P050-60
9
MAY 4005F454-51
10
MAY 4005F427-51
11
MAY 3804F109-51
12
MAY 8007P023-60
13
MAY 4020F001-80
14
MAY 4020F002-80
14
MAY 4020W007-80
15
MAY 7101P290-60
16
MAY 3605F174-51
17
MAY 8004P024-60
18
MAY 7101P300-60
19
MAY 7101P306-60
20
MAY 3406F028-51
21
MAY 8004P025-60
23
MAY 8312P058-60
24
MAY 7106P033-60
25
SCREW, HINGE
26
MAY 4804F015-60
26
MAY 4804F016-60
27
MAY 3801F218-51
27
MAY 7101P289-60
28
MAY 3804F103-51
29
MAY 7101P280-60
29
MAY 8002P025-60
30
MAY 8009P016-60
31
MAY 7109P015-60
31
SCREW, LEVER
32
MAY 7112P003-60
33
MAY 7701P089-60
34
MAY 7403P228-60
35
SCREW
36
MAY 7401P041-60
36
MAY 7401P017-60
37
MAY 3801F305-80
38
MAY 3801F312-45
39
MAY 7407P097-60
39
MAY 7407P089-60
40
MAY 7404P057-60
41
MAY 7118P020-60
42
MAY 3801F309-80
43
MAY 7416P005-60
43
MAY 7416P006-60
43
MAY 7416P004-60
43
MAY 7401A032-60
44
MAY 7401P031-60
44
MAY 4005F417-51
←
