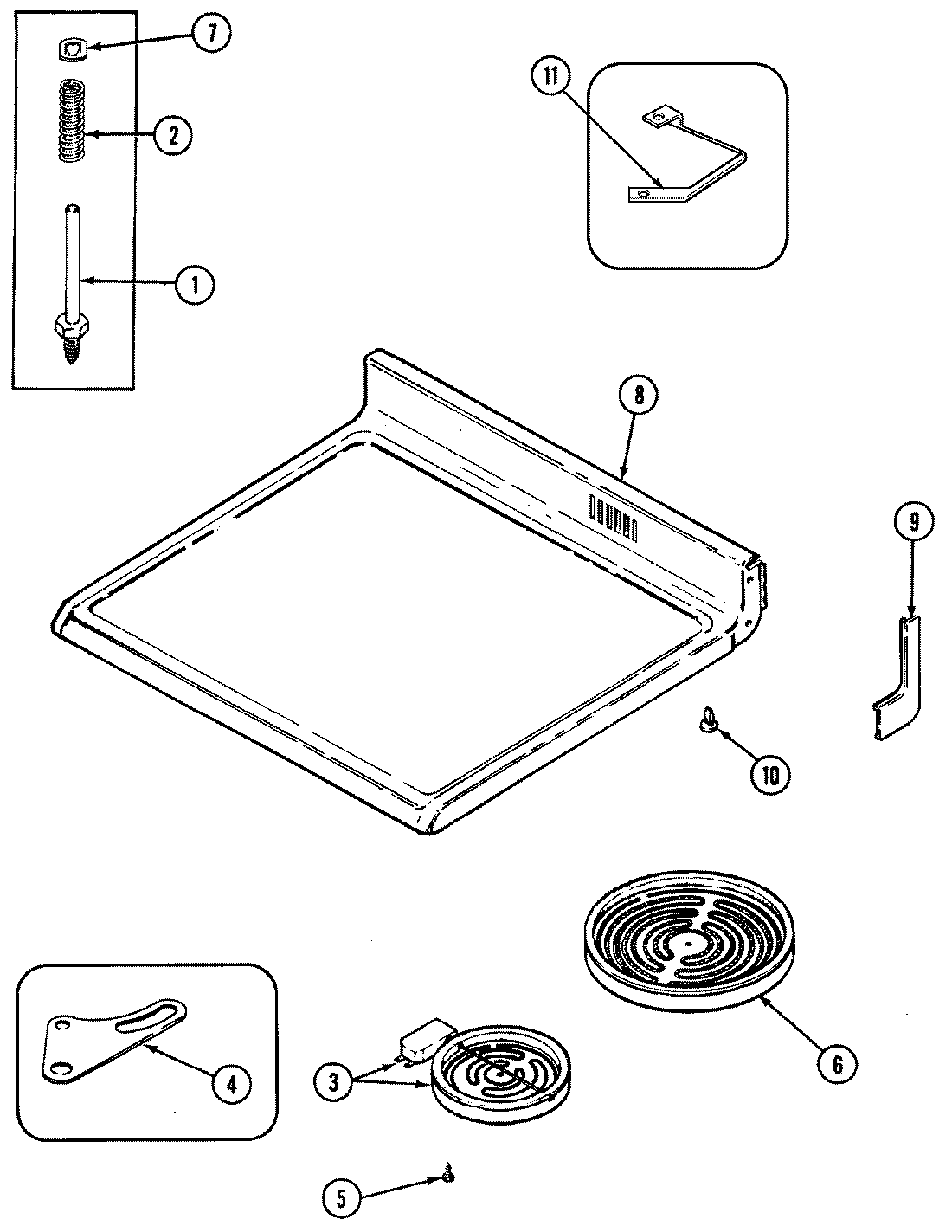

C3888VVV 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7113P013-60
2	MAY 7803P066-60
3	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
3	MAY 12500041
3	MAY 7406P074-60
4	MAY 3819F013-45
5	MAY 7101P076-60
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY 12500040
6	MAY 74002652
6	MAY 7406P073-60
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 7112P091-60
8	MAY 5706S079-81
8	WA906B Whirlpool Cooktop Glass Scraper
9	MAY 7746P033-60
9	MAY 7746P032-60
9	WP3195558 Whirlpool Nut
10	MAY 8016P016-60
10	MAY 8114P348-60
11	MAY 74001437
