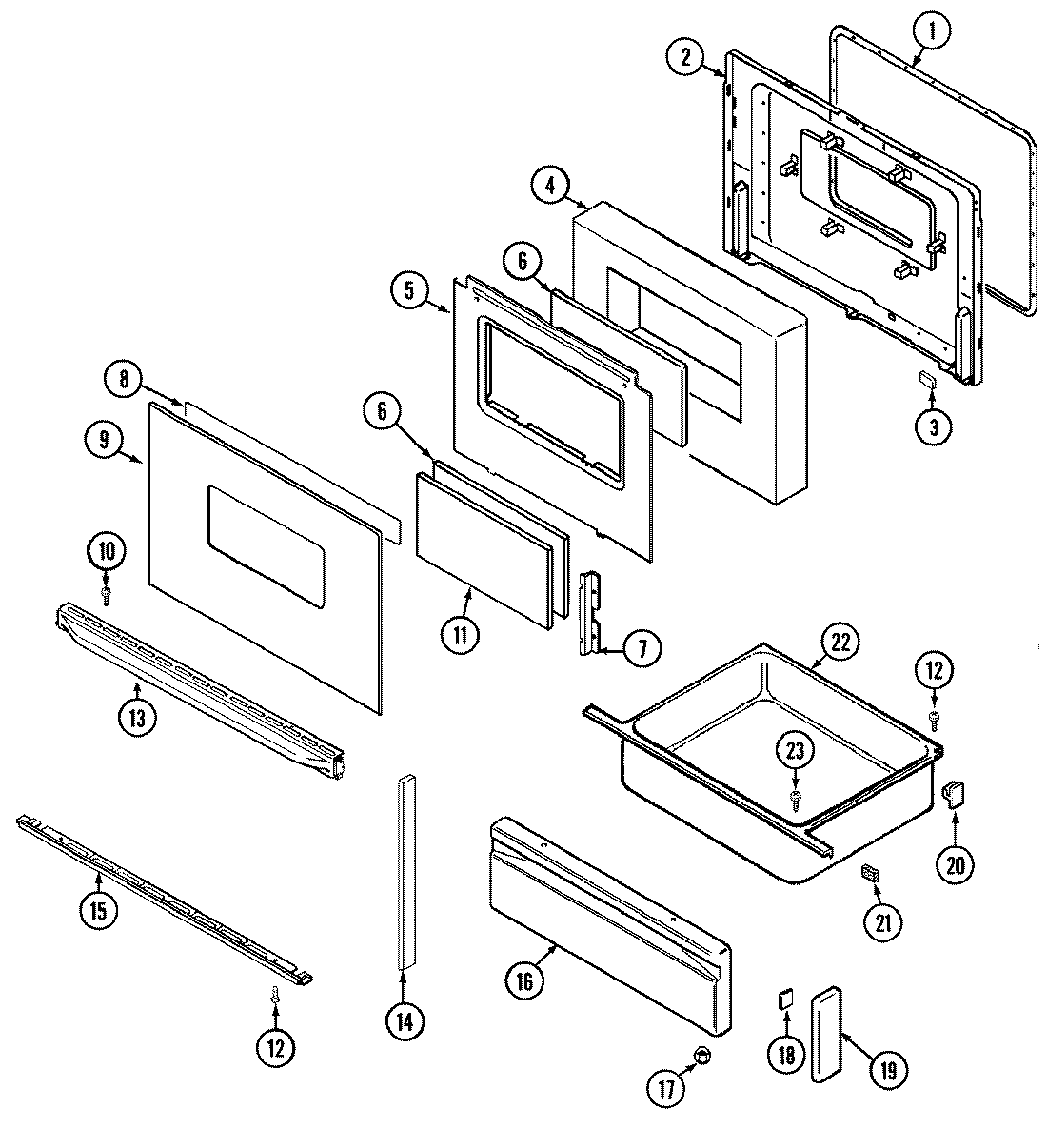

C3888XVW 04 – DOOR/DRAWER (SER. PRE. 21)

C3888XVW 04 – DOOR/DRAWER (SER. PRE. 21)

Written by

in

C3888XVW 04 – DOOR/DRAWER (SER. PRE. 21)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P321-60
10WP98008545 Whirlpool Screw
11MAY 74002002
13MAY 7701P144-60
14MAY 8270P093-60
14MAY 7744P055-60
15MAY 7744P105-60
16MAY 2416F039-65
17WPW10131078 Whirlpool Nut Assembly
18TAPE
19MAY Y7744P07060
20WP8004P026-60 Whirlpool Support
21MAY 7208P002-60
22MAY 3405F019-80
23SCREW
