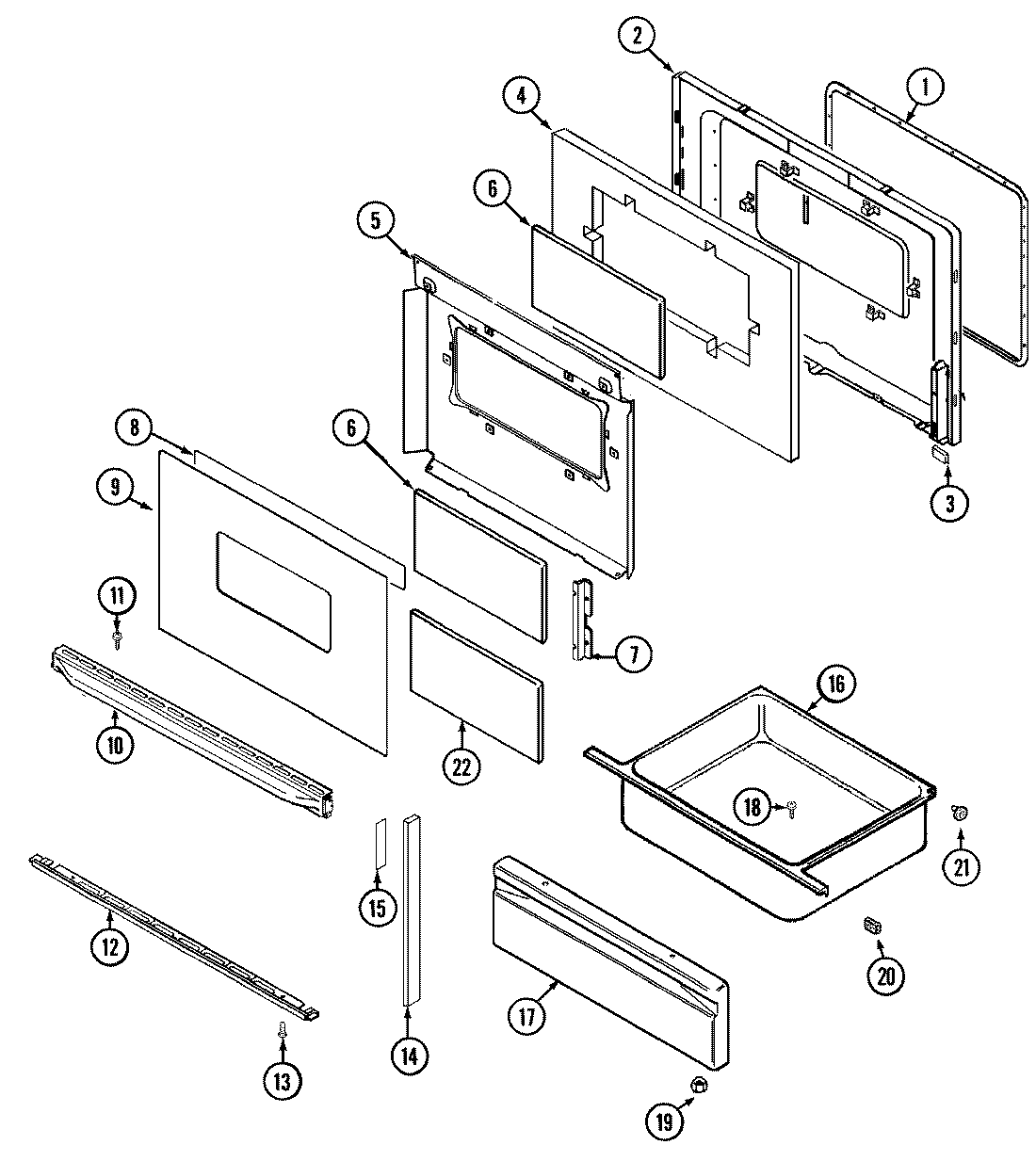

C6892XVS 02 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 74003244
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 4870F005-60
9	MAY 74003431
10	MAY 74003429
11	WP98008545 Whirlpool Screw
12	MAY 74003432
13	SCREW
14	MAY 74003430
15	MAY 8270P093-60
16	MAY 71003042
17	PANEL, DRAWER (BLK)
17	MAY 74004034
18	WP7101P072-60 Whirlpool Screw
19	WPW10131078 Whirlpool Nut Assembly
20	MAY 8010P085-60
21	MAY 74003566
21	WP488130 Whirlpool Air Conditioner Nut
22	MAY 74002002
