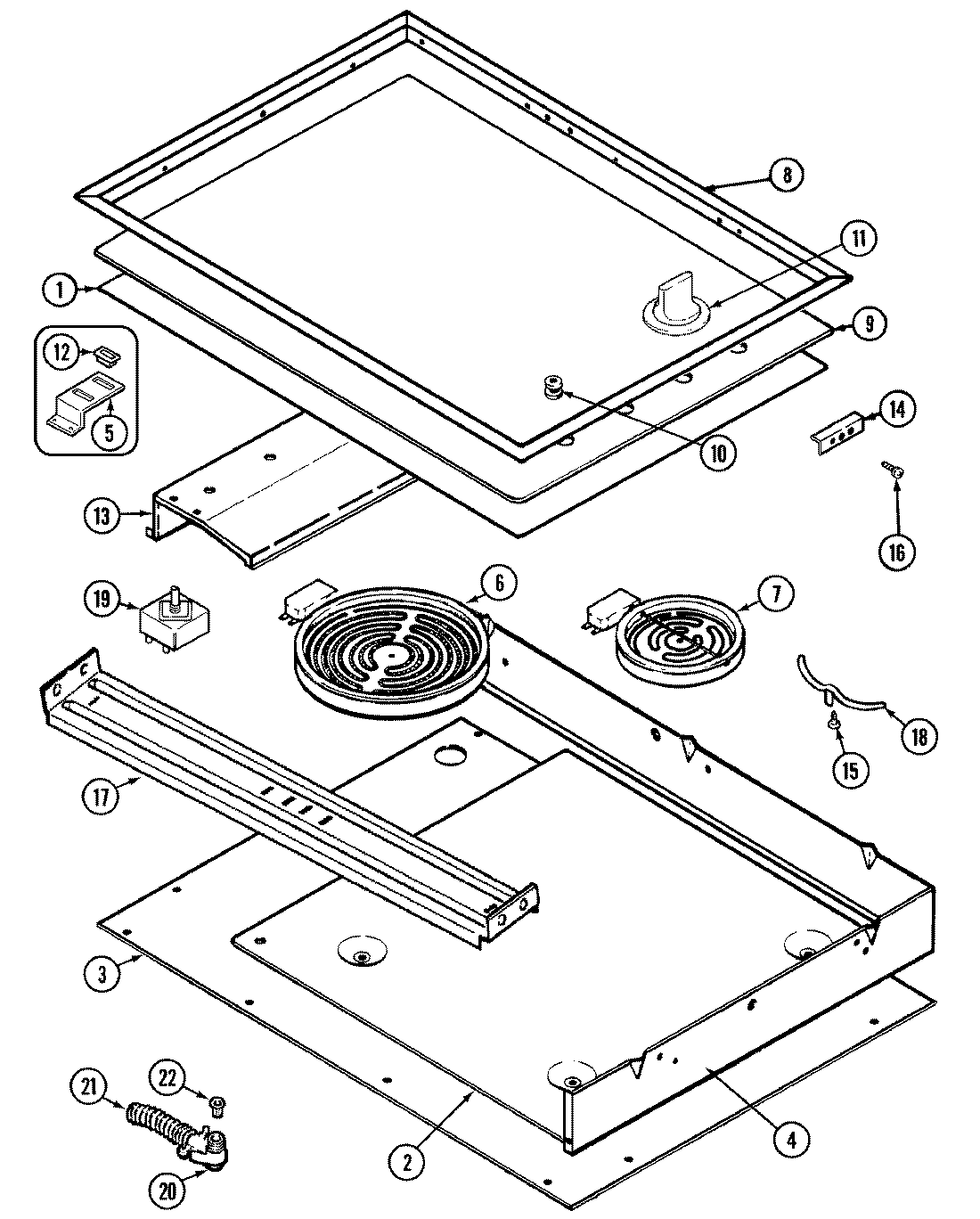

C8670PB 01 – TOP ASSEMBLY

Products

Position	Product
1	MAY 3601F164-80
2	MAY 3601F173-51
3	MAY 8028P005-60
4	MAY 4016F023-45
4	MAY 74001430
5	MAY 3801F188-45
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY 7406P073-60
6	MAY 12500040
7	MAY 12500041
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
7	MAY 7406P074-60
8	MAY 7746P023-60
9	MAY 7918P046-60
10	MAY 8008P033-60
11	WP7737P026-60 Whirlpool Knob Switch
12	MAY 74001241
13	MAY 3605F175-45
13	MAY 7103P071-60
13	WP7101P072-60 Whirlpool Screw
14	MAY 74001497
14	MAY 3804F092-45
16	MAY 7101P059-60
17	MAY 74001513
18	MAY 8004P015-60
19	MAY 7403P320-60
19	SEAL, GASKET INF. SW.
19	MAY 7403P322-60
20	MAY 7417P004-60
21	MAY 3414F035-44
22	MAY 3801F072-45
22	MAY 8308P002-60
22	WA906B Whirlpool Cooktop Glass Scraper
22	MAY 8018P001-60
