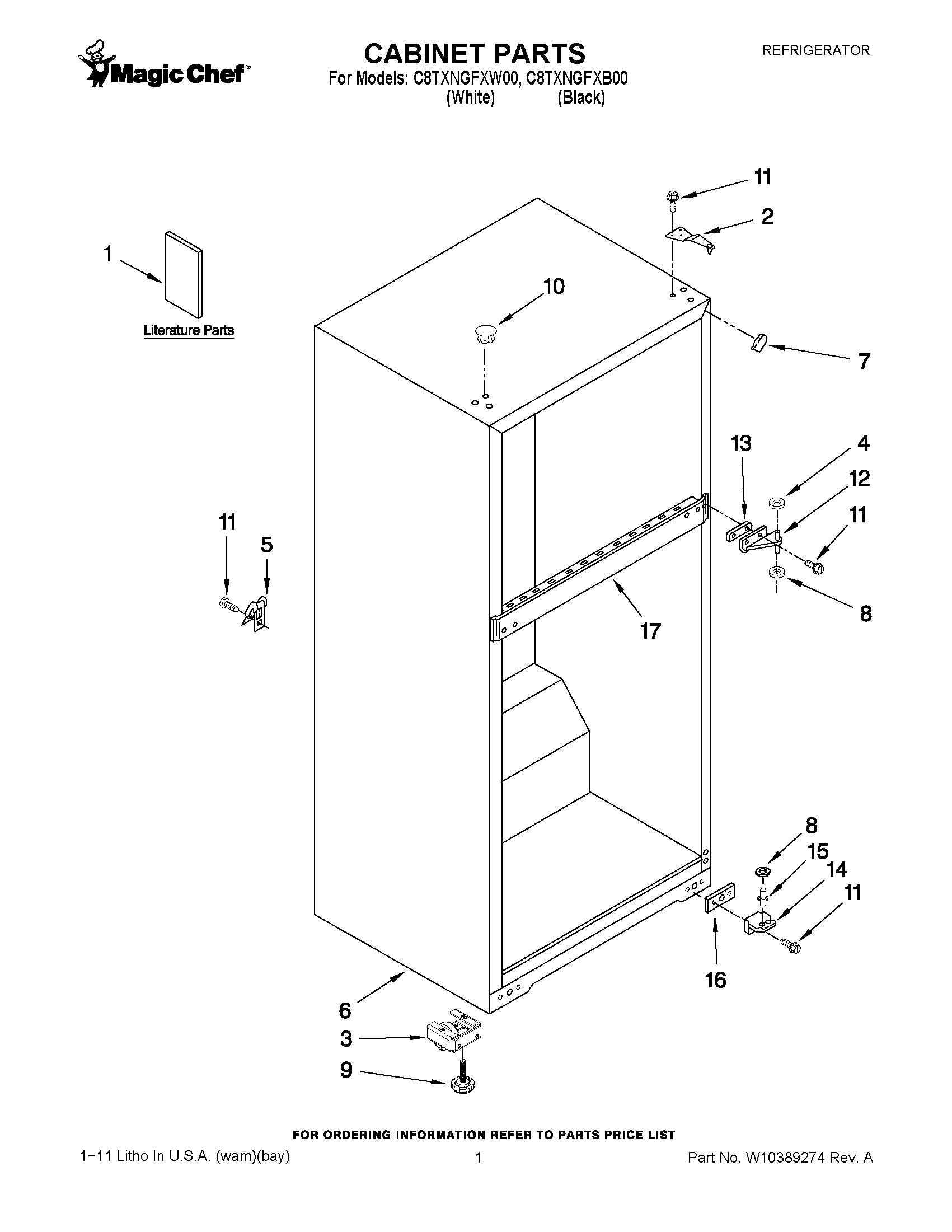

C8TXNGFXB00 01 – CABINET PARTS
Written by
in
C8TXNGFXB00 01 – CABINET PARTS
Products
Position
Product
1
MAY W10287934
1
MAY 2326133
1
MAY W10283801
2
MAY 2261963
3
ROLLER, FRONT
4
WASHER, PLASTIC
5
MAY 549193
7
Corner Filler
7
Corner Filler (Black)
8
Washer (1/16)
9
LEVELER SCREW
10
MAY 2183998
10
HOLE PLUG
11
MAY 489497
12
MAY 2166086
13
SHIM, HINGE CENTER (WHITE)
14
Hinge Butt, Btm
15
Hinge-Pin, Btm
16
MAY 2201567
17
LINER (NOT A SERVICEABLE PART)
←
C3581VUV 01 – BODY
NTW5400TQ0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)
→
