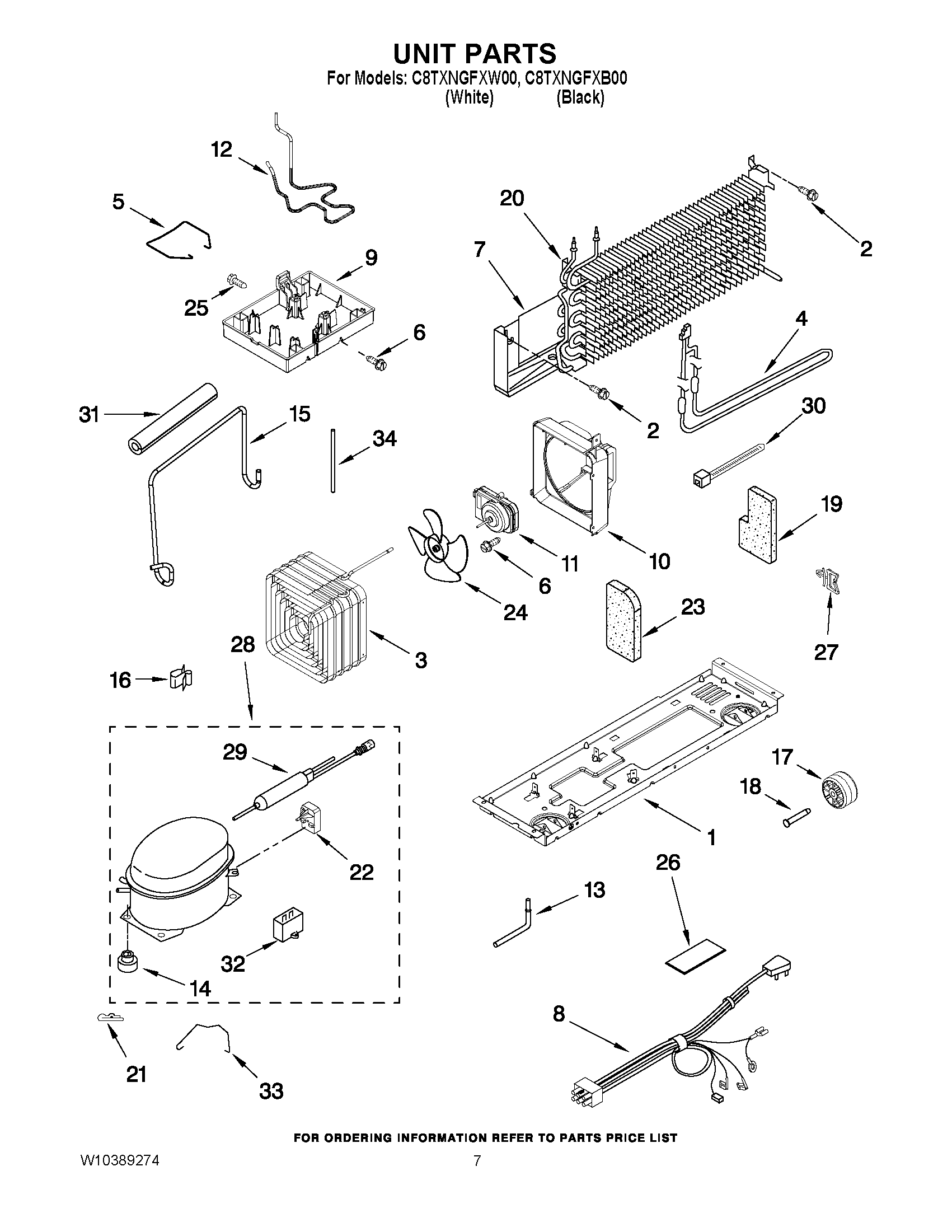

C8TXNGFXB00 04 – UNIT PARTSadmin2025-04-26T09:06:38+00:00C8TXNGFXB00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY W10222450 |
| 2 | MAY 489442 |
| 3 | MAY 2264004 |
| 4 | MAY 2176942 |
| 5 | MAY 2264835 |
| 6 | MAY 8533859 |
| 7 | MAY 2319224 |
| 8 | Wire Assy. Unit |
| 9 | Evaporating Tray |
| 10 | AIR BAFFLE |
| 11 | MAY 2188875 |
| 12 | TUBE, DISCHARGE (INCL.PRE COOLER) |
| 13 | MAY VS20001 |
| 14 | MAY 2222084 |
| 15 | MAY W10209727 |
| 16 | MAY 939054 |
| 17 | Roller |
| 18 | RIVET, AXLE |
| 19 | Wedge-Evap. |
| 20 | EVAPORATOR ASSY |
| 21 | MAY 24364001 |
| 22 | START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION) |
| 22 | START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE) |
| 23 | MAY 2262192 |
| 24 | MAY 2264129 |
| 25 | MAY 2264841 |
| 26 | SHIELD-ELECTRICAL |
| 27 | CLIP-HARNESS |
| 28 | COMPRESSOR (INCLUDES ITEMS 14, 22, 29 & 32) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT) |
| 29 | Drier |
| 29 | DRIER (PRODUCTION) |
| 30 | MAY 2263990 |
| 31 | MAY 2264838 |
| 32 | Capacitator (Production) |
| 33 | STRAP, BALE |
| 34 | MAY 2264278 |
