C8TXNGFXW00 01 – CABINET PARTS – Aparts

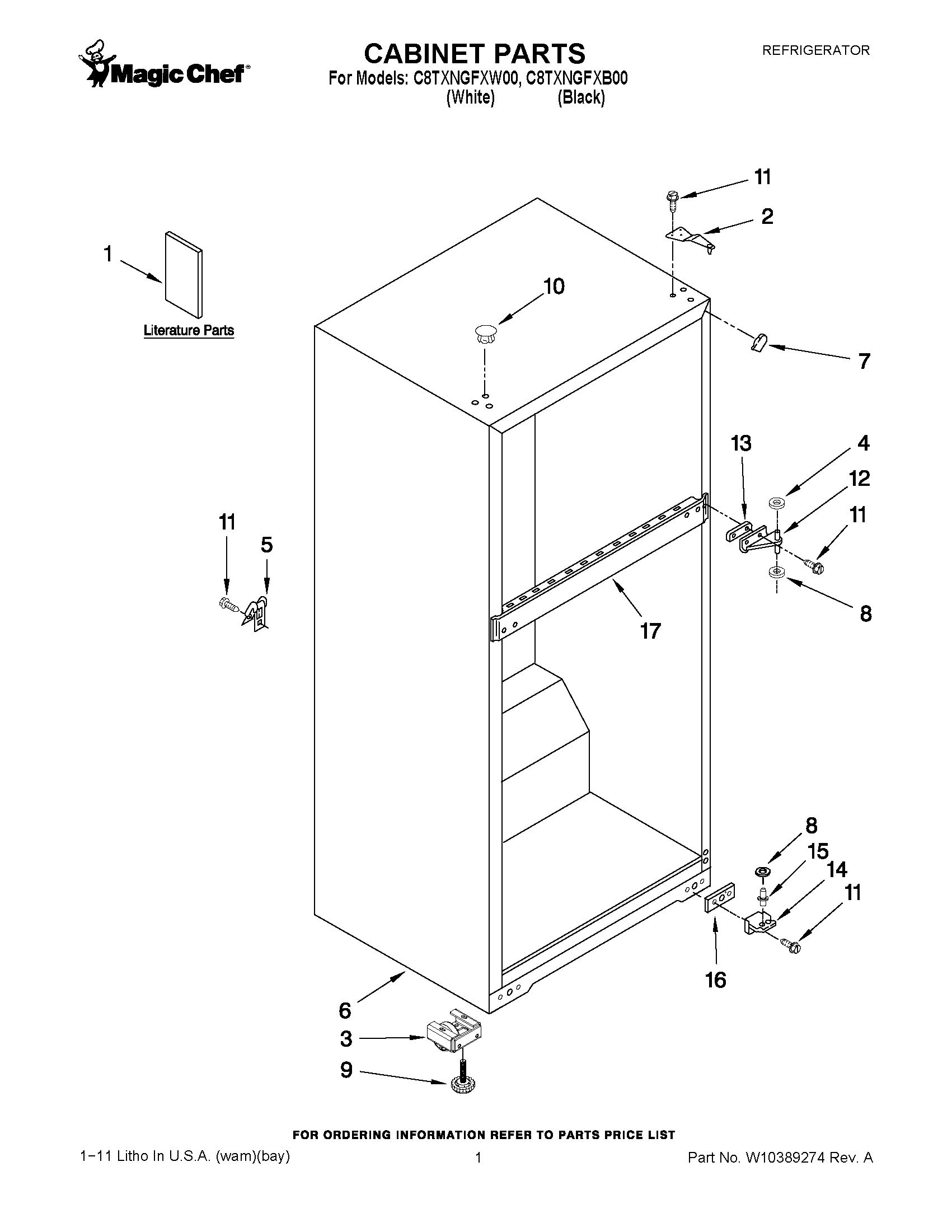

C8TXNGFXW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10287934
1	MAY 2326133
1	MAY W10283801
2	MAY 2261963
3	ROLLER, FRONT
4	WASHER, PLASTIC
5	MAY 549193
7	Corner Filler
7	Corner Filler (Black)
8	Washer (1/16)
9	LEVELER SCREW
10	MAY 2183998
10	HOLE PLUG
11	MAY 489497
12	MAY 2166086
13	SHIM, HINGE CENTER (WHITE)
14	Hinge Butt, Btm
15	Hinge-Pin, Btm
16	MAY 2201567
17	LINER (NOT A SERVICEABLE PART)
