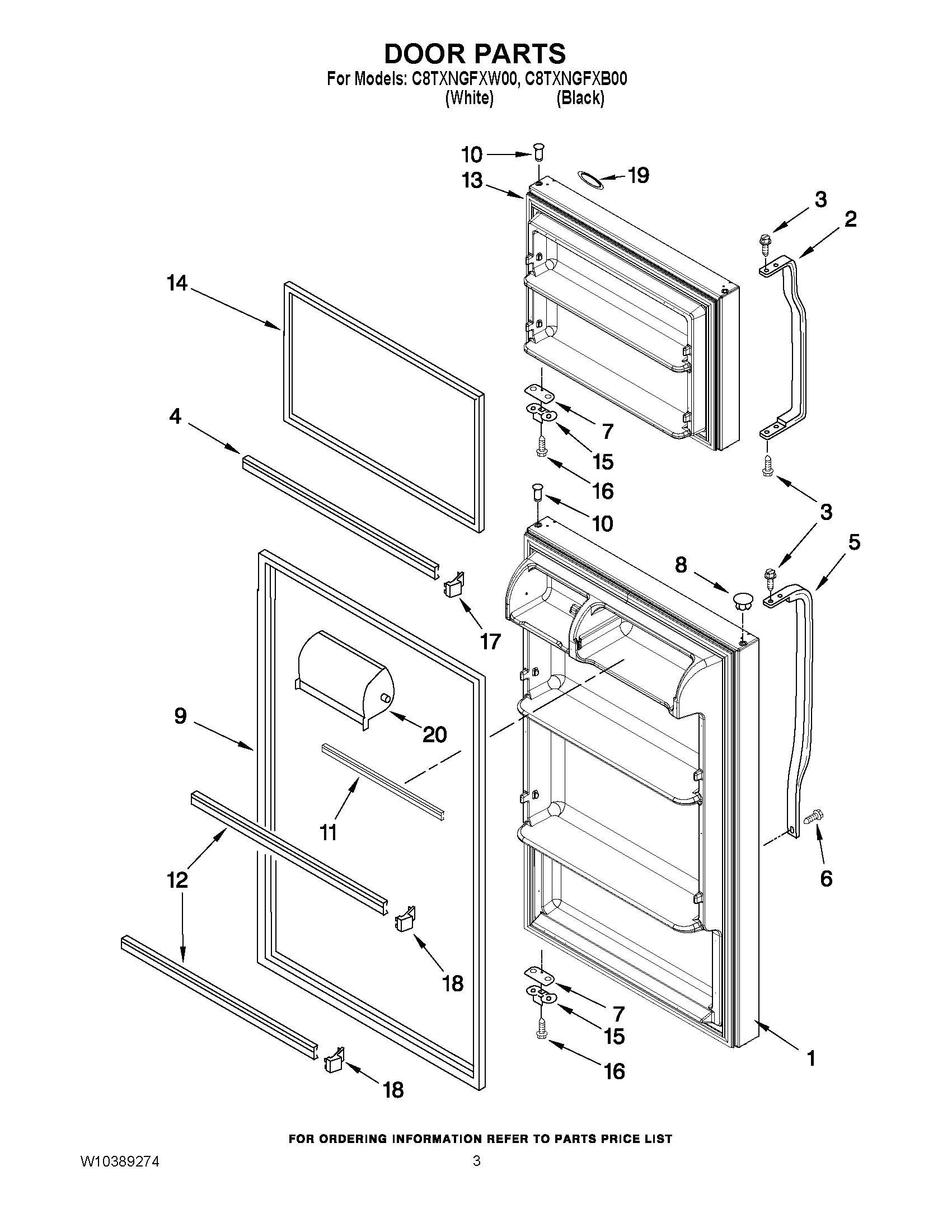

C8TXNGFXW00 02 – DOOR PARTS

Products

Position	Product
1	MAY 2264750W
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 14) (BLACK)
2	Handle, Freezer (Black)
2	Handle, Freezer (White)
4	MAY 2266727
5	Handle, Refrigerator (White)
5	Handle, Refrigerator (Black)
6	MAY 8281206
7	Shim, Door Stop (White)
8	MAY 2212648
8	Hole Plug (Black)
9	GASKET, RC (BLACK)
9	DOOR GASKET, MAGNETIC
10	MAY 2262054
11	MAY W10234242
12	MAY 2266738
13	FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (BLACK)
13	FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (WHITE)
14	GASKET, FC (BLACK)
14	Door Gasket, Magnetic
15	MAY 2189202
16	MAY 489357
17	END CAP, TRIM
18	PLUG-TRIM
19	MAY 2328563
19	Nameplate
20	MAY 2207942
