C8TXNWFXW00 01 – CABINET PARTS

C8TXNWFXW00 01 – CABINET PARTS

Written by

in

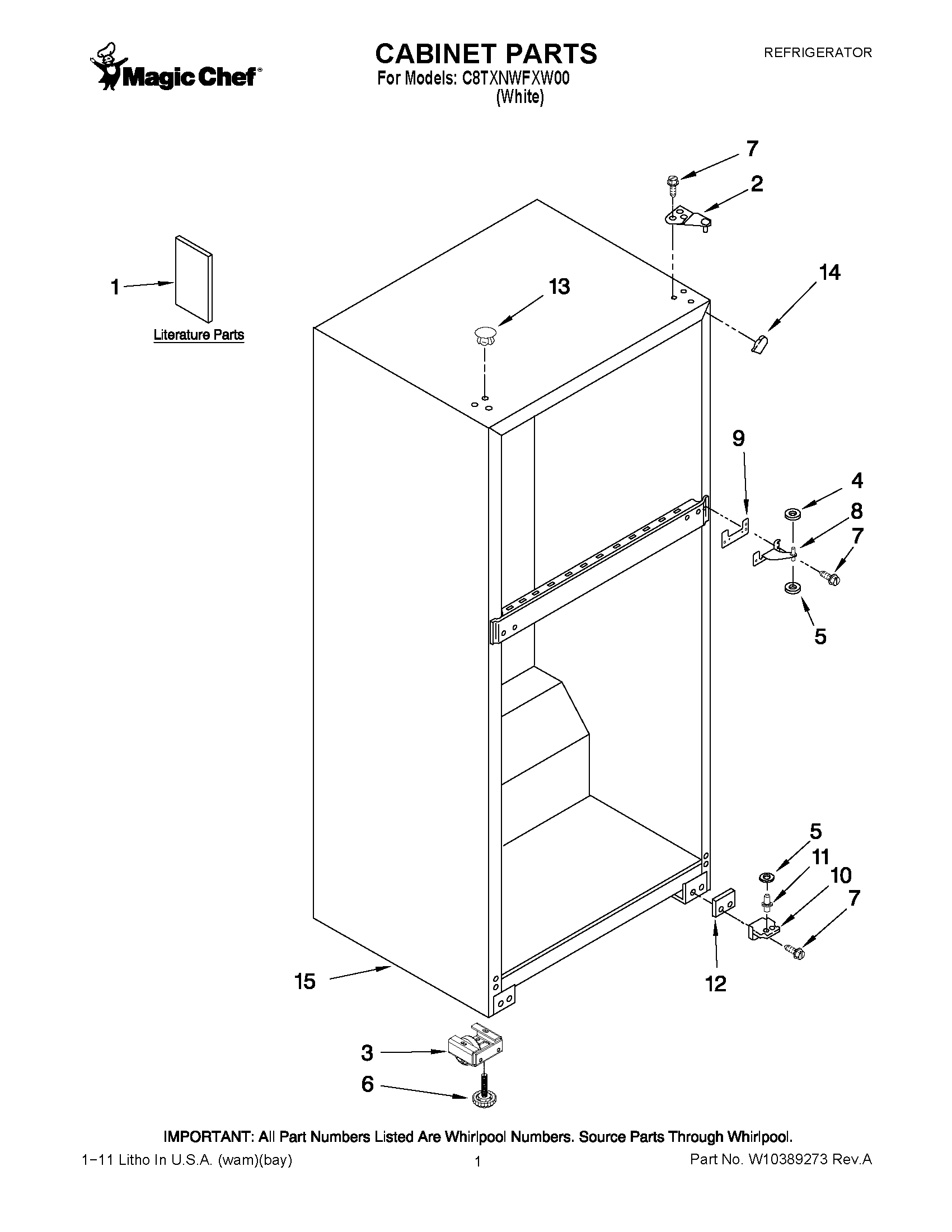

C8TXNWFXW00 01 – CABINET PARTS

Products

PositionProduct
1MAY 2326133
1MAY W10287925
1MAY W10294350
2MAY 2261963
3ROLLER, FRONT
4Washer (7/64)
5Washer (1/16)
6LEVELER SCREW
7MAY 489497
8MAY 2166086
9SHIM, HINGE CENTER (WHITE)
10Hinge Butt, Btm
11Hinge-Pin, Btm
12MAY 2201567
13HOLE PLUG
14Corner Filler
15LINER (NOT A SERVICEABLE PART)
