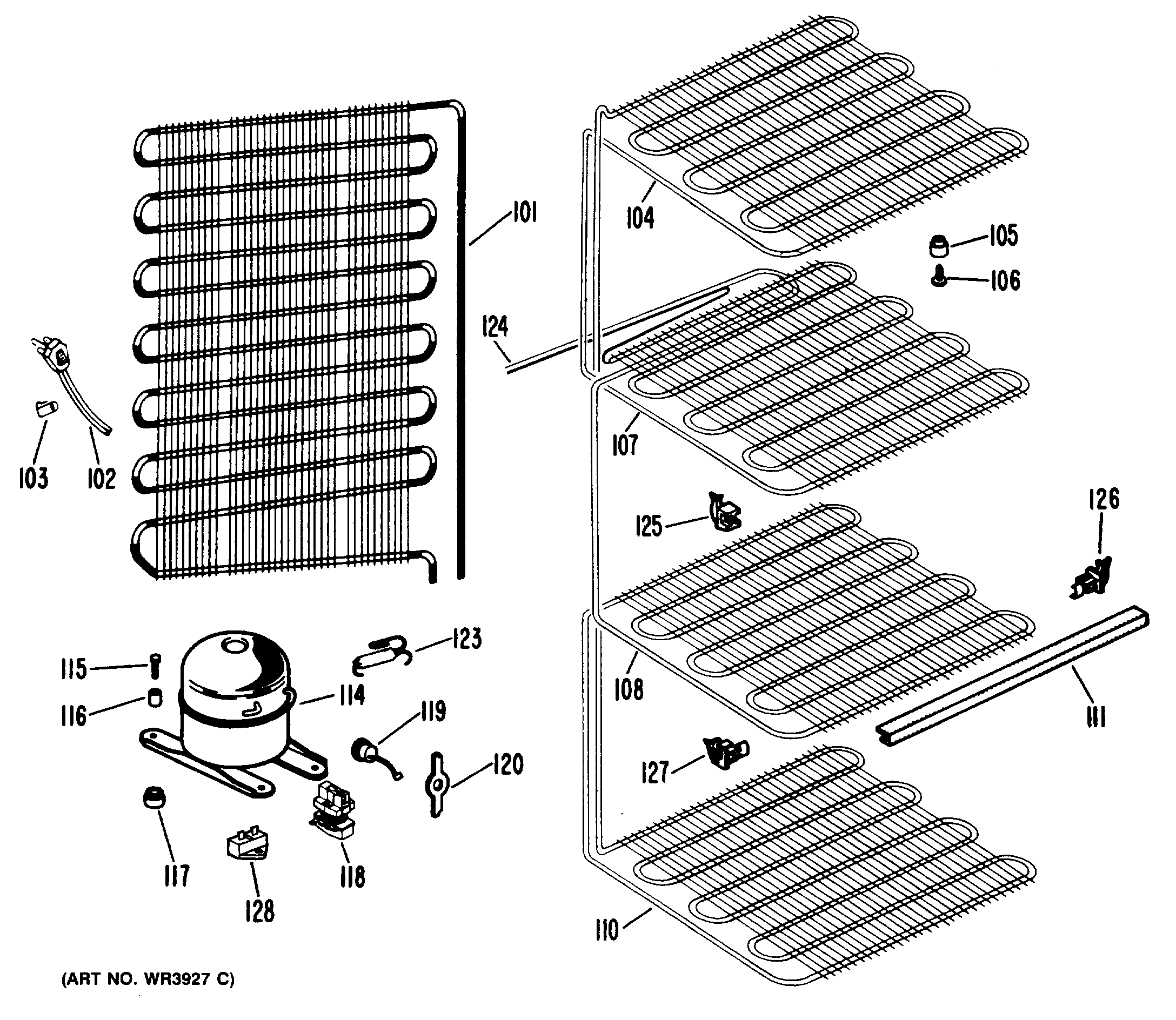

| 101 | EXTERNAL CONDENSER |
| 102 | WR23X10300 GE Refrigerator Power Cord Assembly |
| 103 | WR1X5278 GE Refrigerator Cable Clamp |
| 104 | SHELF-TOP |
| 105 | GROMMET-TOP REAR |
| 105 | GROMMET-TOP FRONT |
| 107 | SHELF-1ST |
| 108 | SHELF-2ND |
| 110 | SHELF-BOTTOM |
| 111 | GEN WR38X5409 |
| 114 | GEN WR87X0401 |
| 115 | SCREW-GROMMET |
| 116 | SLEEVE-SCREW |
| 117 | GROMMET |
| 118 | GEN WR07X5147 |
| 119 | GEN WR08X5204 |
| 120 | GEN WR02X5641 |
| 123 | WR86X25269 GE Refrigerator R134 Dryer |
| 124 | GEN WR86X0068 |
| 125 | SUPPORT-REAR |
| 126 | GEN WR02X7622 |
| 127 | GEN WR02X7621 |
| 128 | GEN WR62X5019 |
