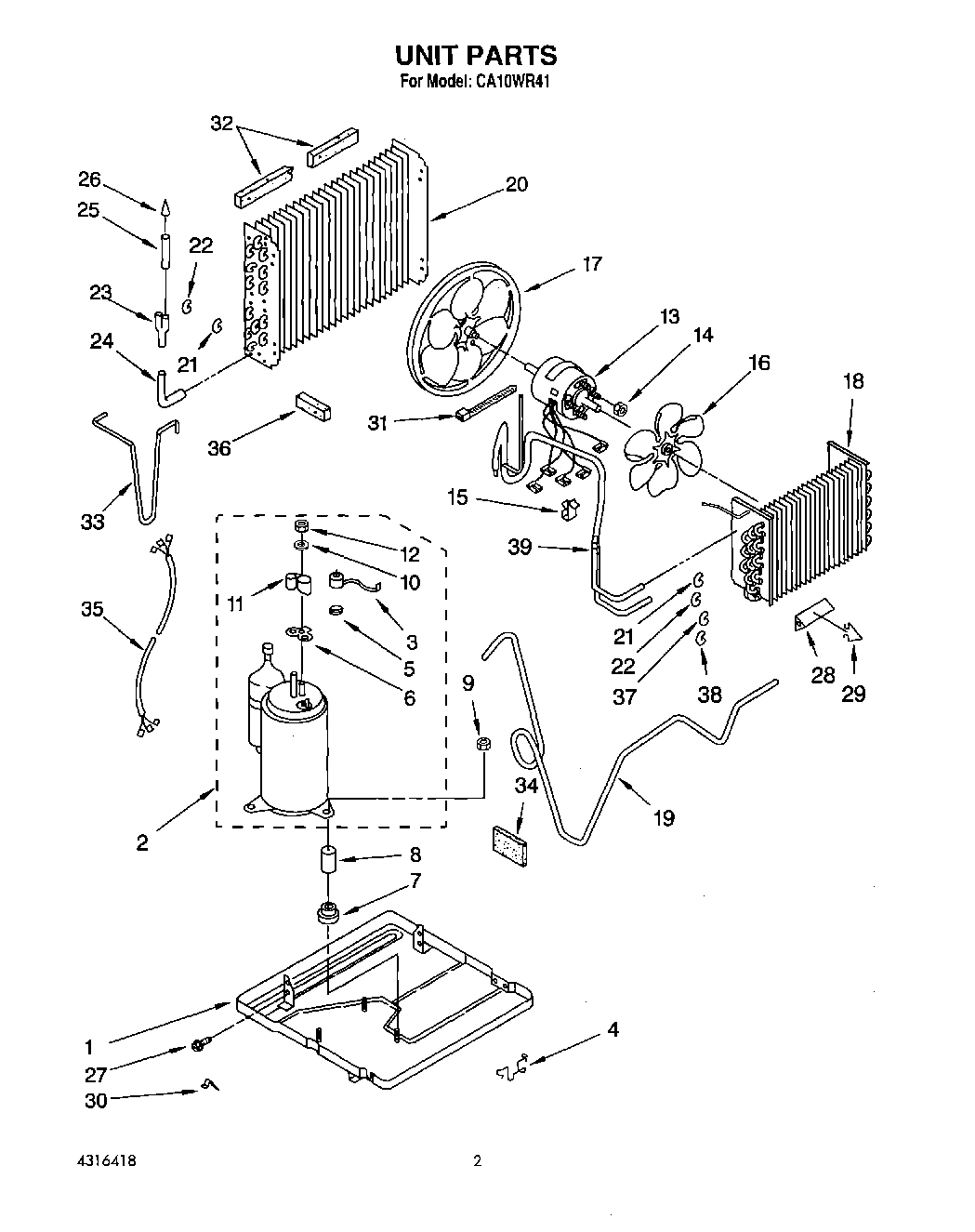

CA10WR41 02 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation
	Guide, Use/Care
	Sheet, Tech
1	Base
2	Compressor
3	Overload
4	Clip, Mtg. (2) (Base to Front)
5	Spring, Overload
6	WP950035 Whirlpool Cover Gasket
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	Gasket, Nut
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Condenser (4)
22	Bend, Return Condenser (10)
23	Tube, Flow Divider
24	Tube, Condenser Extension
25	Tube, Outlet (Includes No. 26)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
33	Tube, Discharge
34	Seal, Anti-Rub
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend, Return Condenser (1)
38	Bend Return
39	Tube, Suction
