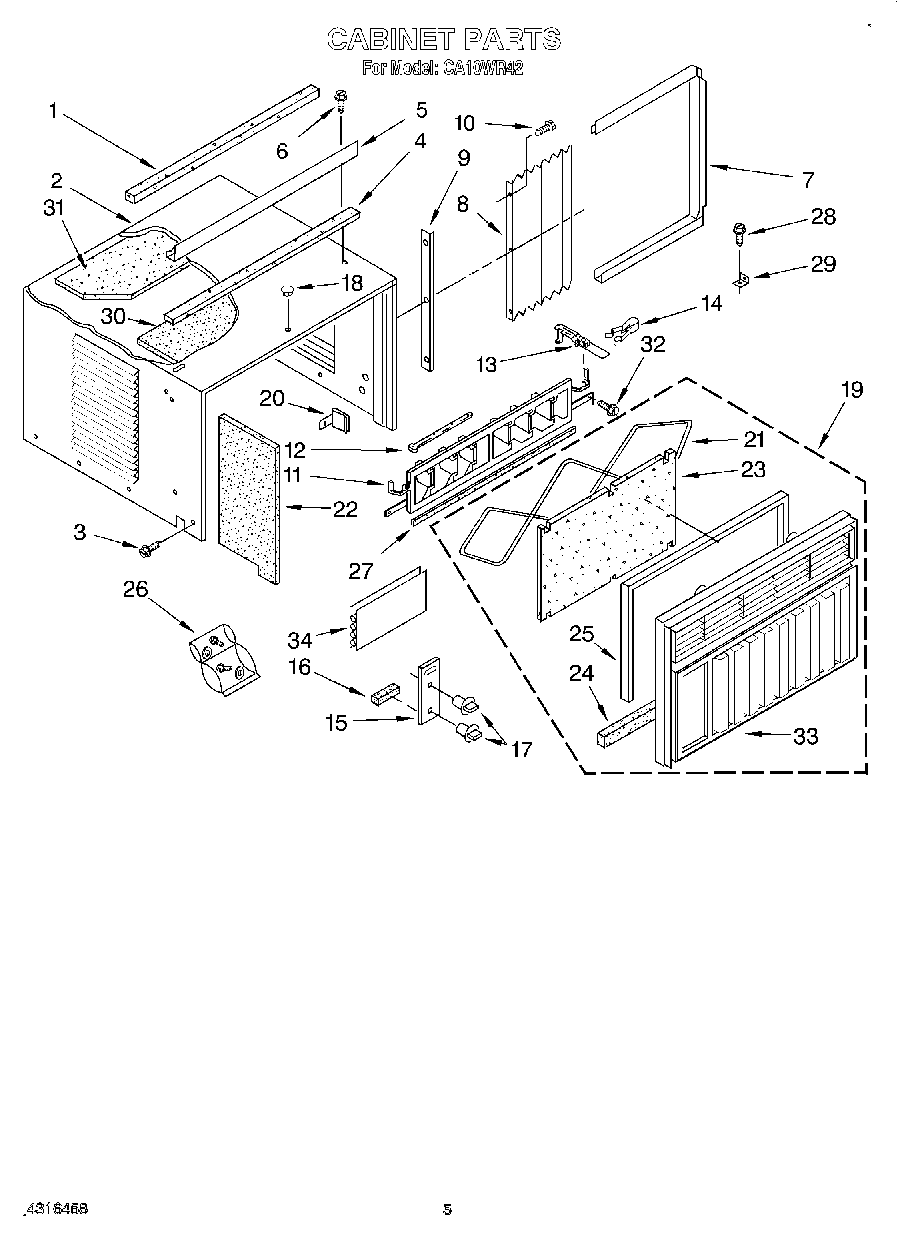

CA10WR42 03 – CABINET

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top Mounting
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain R.S.(Includes No.8)
7	Housing, Curtain L.S. (Includes No.8)
8	Curtain (2)
9	Retainer, Curtain
10	Screw, 8-18 x 3/8
11	Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
17	Knob, Control (2) (Brown W/ White Indicator)
18	Cover, Hole
19	Front, Cabinet
20	Clip, Vertical Louver
21	Retainer, Filter
22	Insul. Cabinet (Left Side)
22	Insul. Cabinet (Right, Side)
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
27	Seal, Vertical Louver
28	Screw, Wood 8-15 x .750
29	Bracket
30	Insul. Cabinet Top
31	Insul. Cabinet
32	Screw 8-18 x .295
33	Front
34	212643 Whirlpool Refrigerator Permagum Sealer
