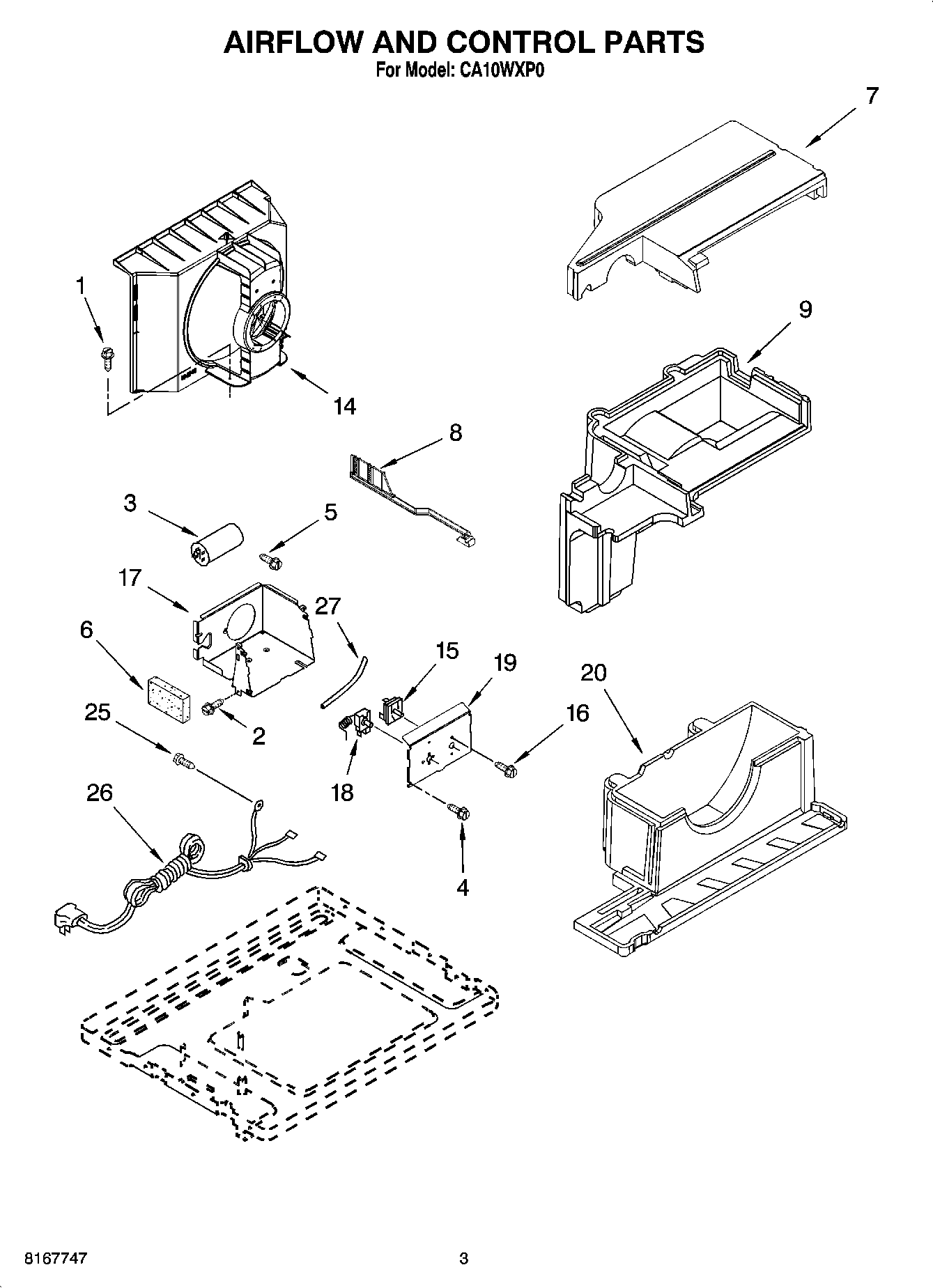

CA10WXP0 02 – AIR FLOW AND CONTROL PARTS

CA10WXP0 02 – AIR FLOW AND CONTROL PARTS

Written by

in

CA10WXP0 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1WP489069 Whirlpool Compactor Screw
2WP3196557 Whirlpool Screw
3WP1186509 Whirlpool Air Conditioner Capacitor
4489392 Whirlpool Refrigerator Screw
5WP489478 Whirlpool Refrigerator Screw
6Seal, Control Box
7Hood, Air Housing
8Door, Exhaust
9Housing, Top
14Shroud, Condenser
15Switch, Rotary
16Screw, 6-32 x .175
17Box, Control
18Control, Temp.
19Panel, Control
20Housing, Air- Bottom
25Screw 8-18 x .295
26Cable, Appliance
27Sleeve, Insulating
