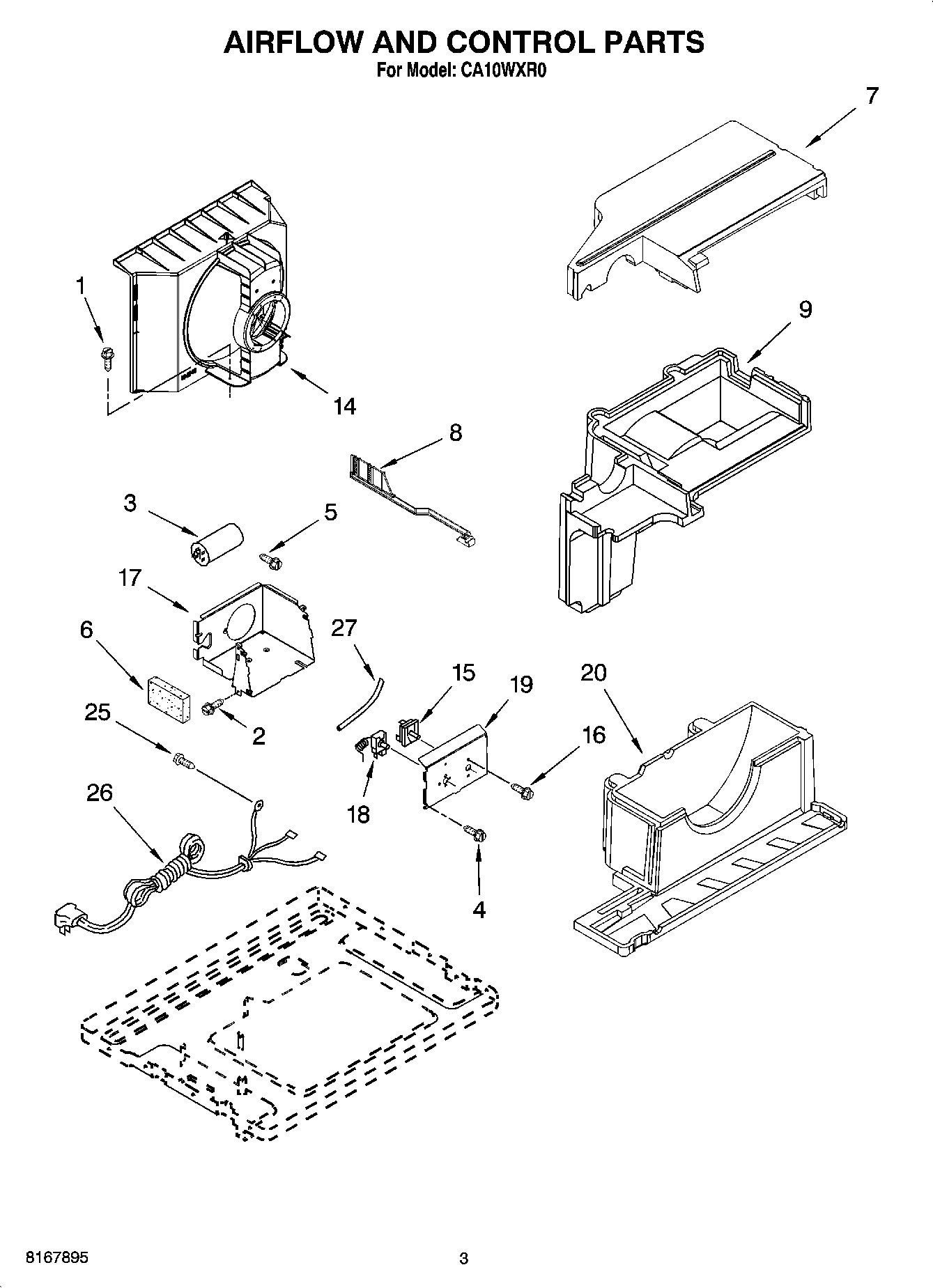

CA10WXR0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	WP90767 Whirlpool Screw
2	WP3196557 Whirlpool Screw
3	WP1186509 Whirlpool Air Conditioner Capacitor
4	Screw
5	Screw
6	Seal, Control Box
7	Hood, Air Housing
8	Door, Exhaust
9	Housing, Top
14	Shroud, Condenser
15	Switch, Rotary
16	Screw, 6-32 x .175
17	Box, Control
18	Control, Temp.
19	Panel, Control
20	Housing, Air- Bottom
25	Screw
26	Cable, Appliance
27	Sleeve, Insulating
