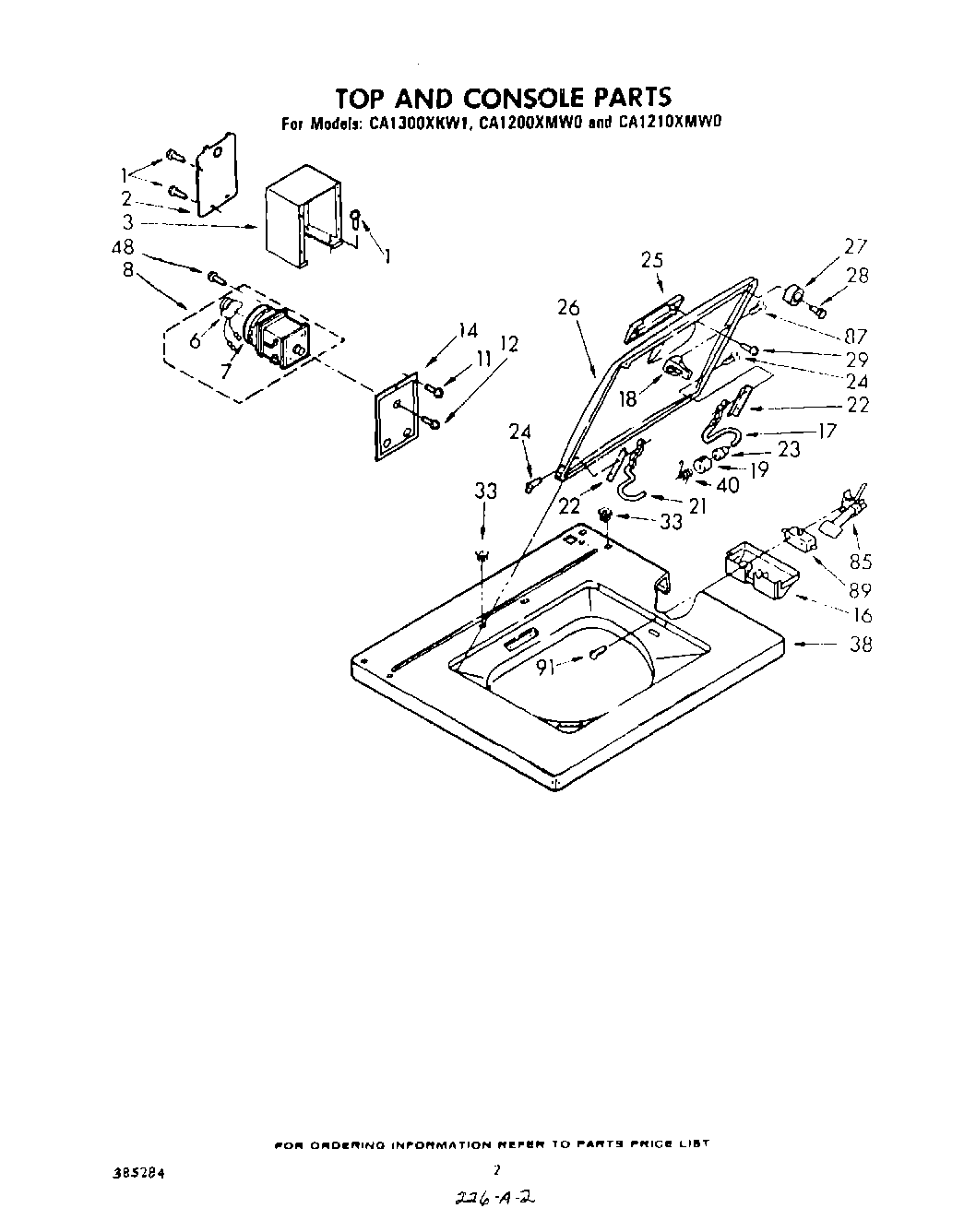

CA1200XMW0 02 – TOP AND CONSOLE

CA1200XMW0 02 – TOP AND CONSOLE

Written by

in

CA1200XMW0 02 – TOP AND CONSOLE

Products

PositionProduct
1SCREW
2Panel, Rear
3Box, Control
6Motor, Timer (60 Hz.)
7Escapement
8Timer Assembly, 60 Hz.
11WP90767 Whirlpool Screw
12WP356418 Whirlpool Screw
14Cover, Front
16WP359231 Whirlpool Shield
17Hinge, R.H.
18Strike, Lid Switch
19Bumper, Lid Hinge
21Hinge, L.H.
22WP21097 Whirlpool Pad
23WP21258 Whirlpool Washer Lid Hinge Bearing
24SCREW
25Handle, Lid
26Lid (White)
26Lid (Almond)
26Lid (Golden Harvest)
26Lid (New Avocado)
27BUMPER
28WP356907 Whirlpool Rivet
29WP355214 Whirlpool Screw
33Nut, Push-In (2)
38Top (Almond)
38Top (Golden Harvest)
38Top (New Avocado)
38Top (White)
40Spring, Hinge
48Screw, 8-32 x 5/16
85Switch Actuator Assembly
87Screw & Washer
89W10820036 Whirlpool Door Switch Kit
91Screw & Washer, Lid Switch (2)
