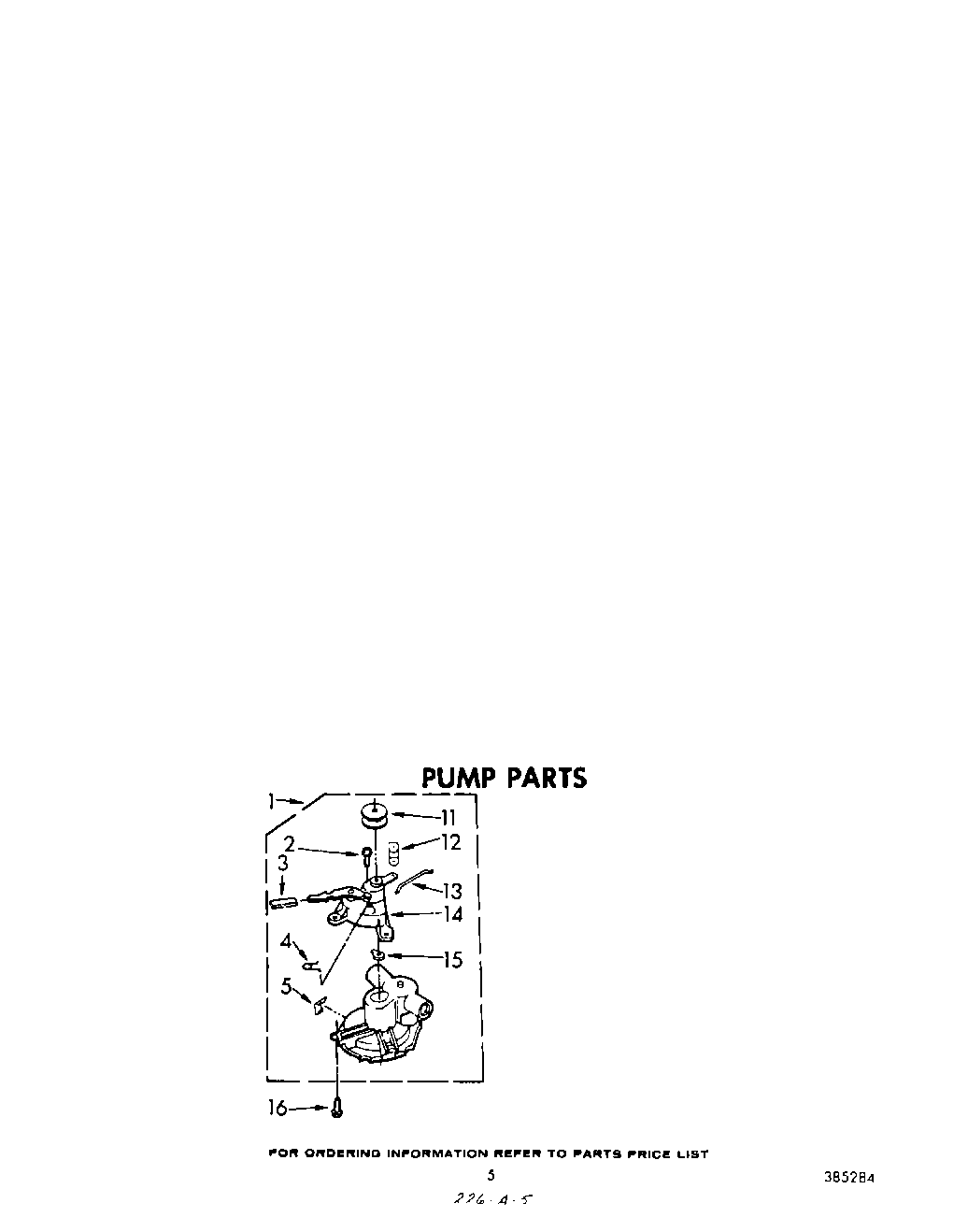

CA1200XMW0 05 – PUMP
Products
| Position | Product |
|---|---|
| 1 | Pump Assembly |
| 2 | WP273556 Whirlpool Screw |
| 3 | Sleeve |
| 4 | Spring, Toggle |
| 5 | Clip, Retainer |
| 11 | Pulley |
| 12 | Lever, Valve |
| 13 | Rod, Connecting |
| 14 | Bearing Block Assembly |
| 15 | Wick, Oil |
| 16 | 386011 Whirlpool Screw |
