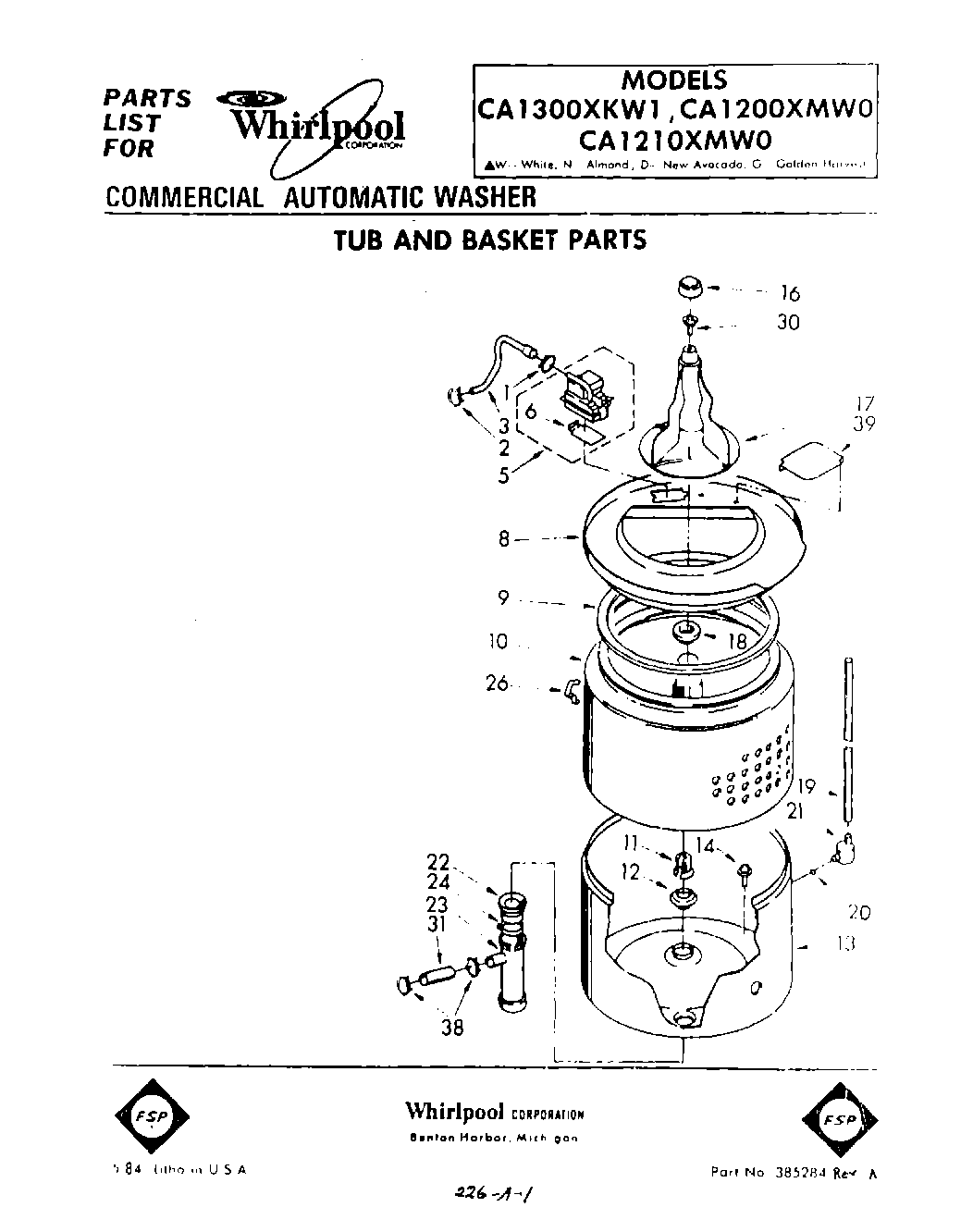

CA1210XMW0 01 – TUB AND BASKET

Products

Position	Product
2	WP596669 Whirlpool Hose Clamp
3	Hose, Water Inlet
5	Inlet, Water
6	Flapper
8	Ring & Filter, Tub (Includes Illus. 22)
9	Seal, Tub Ring
10	Basket
11	Block, Drive
12	W10814296 Whirlpool Washer Center Post Seal Gasket
13	Tub Assembly
14	Screw & Washer, Tub (4)
16	Agitator Cap
17	Agitator
18	WP21366 Whirlpool Spanner Nut
19	WP353244 Whirlpool Hose
20	Seal
21	Air Dome Assembly
22	Hose, Tub Outlet
23	Manifold
24	Clip, Hose
26	Clip, Tub Ring (4)
30	Screw & Seal Assembly
31	Hose
38	WP285655 Whirlpool Hose Clamp
39	Harness, Timer
39	Harness, Cabinet
39	Plate, Snubber
