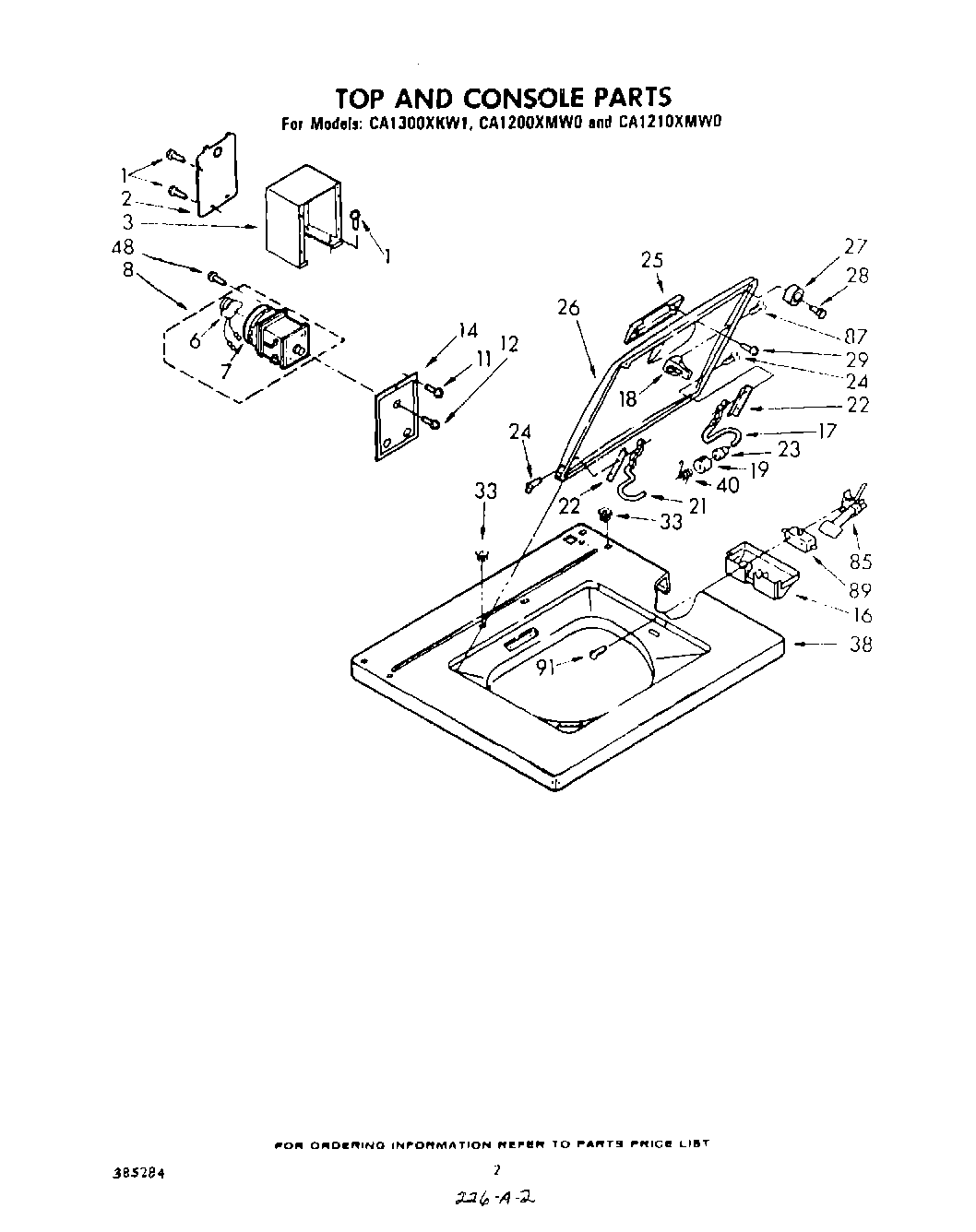

CA1210XMW0 02 – TOP AND CONSOLE

Products

Position	Product
1	SCREW
2	Panel, Rear
3	Box, Control
6	Motor, Timer (60 Hz.)
7	Escapement
8	Timer Assembly, 60 Hz.
11	WP90767 Whirlpool Screw
12	WP356418 Whirlpool Screw
14	Cover, Front
16	WP359231 Whirlpool Shield
17	Hinge, R.H.
18	Strike, Lid Switch
19	Bumper, Lid Hinge
21	Hinge, L.H.
22	WP21097 Whirlpool Pad
23	WP21258 Whirlpool Washer Lid Hinge Bearing
24	SCREW
25	Handle, Lid
26	Lid (White)
26	Lid (Almond)
26	Lid (Golden Harvest)
26	Lid (New Avocado)
27	BUMPER
28	WP356907 Whirlpool Rivet
29	WP355214 Whirlpool Screw
33	Nut, Push-In (2)
38	Top (Almond)
38	Top (Golden Harvest)
38	Top (New Avocado)
38	Top (White)
40	Spring, Hinge
48	Screw, 8-32 x 5/16
85	Switch Actuator Assembly
87	Screw & Washer
89	W10820036 Whirlpool Door Switch Kit
91	Screw & Washer, Lid Switch (2)
