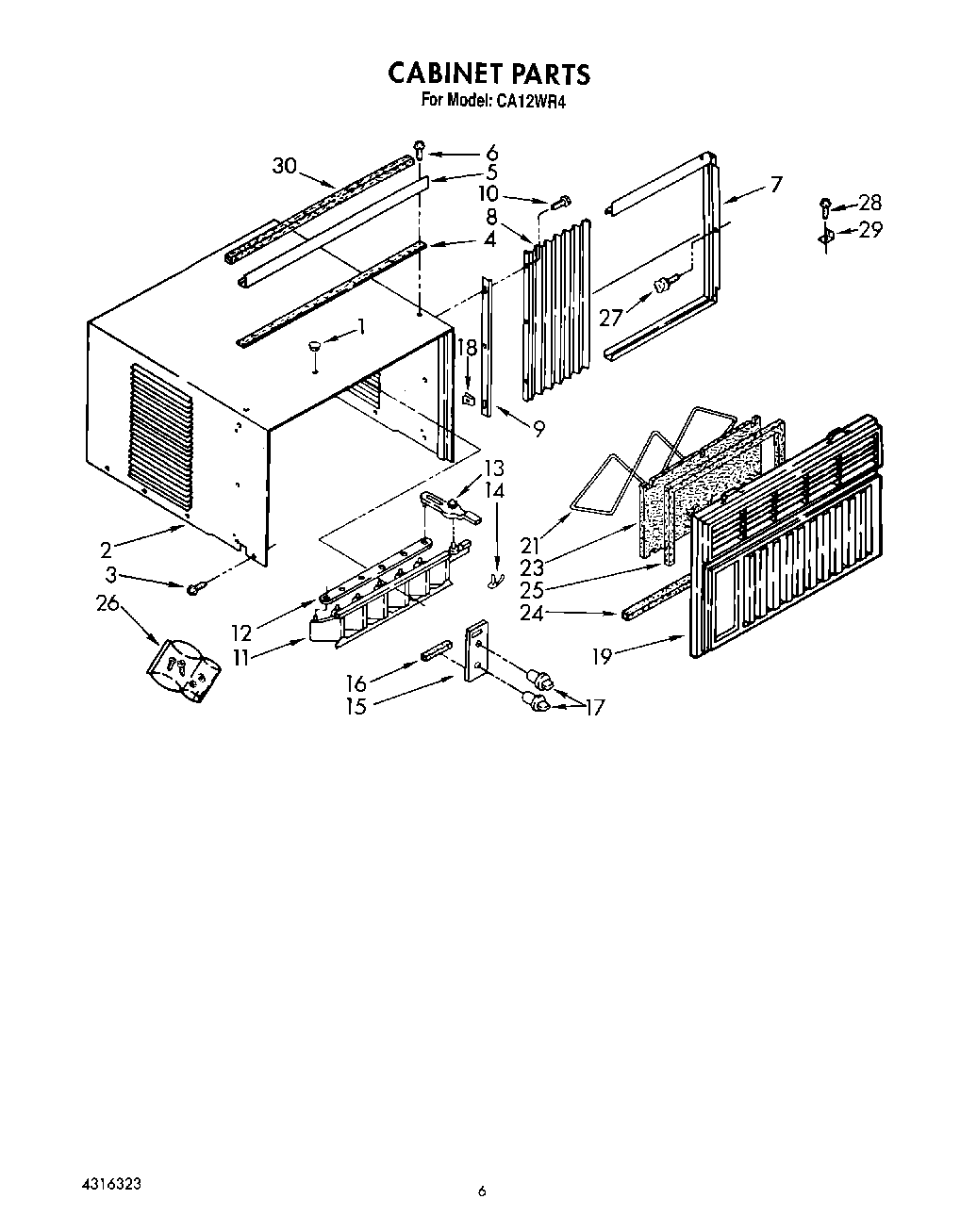

CA12WR4 04 – CABINET

Products

PositionProduct
1Cover, Hole
2Cabinet
2Insulation Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top Mounting
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain (R.S.)
7Housing, Curtain L.S.
8Curtain (2)
9Retainer, Curtain
10Screw, 8 x 7/16
11Louver, Vertical
12Link, Vertical Louver (2)
13Handle, Vertical Louver (2)
14Spring, Detent (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (3)
18Clip, Vertical Louver
19Front, Cabinet
21Retainer, Filter
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
27Thumbscrew (2)
28Screw, Wood 8-15 x .750
29Bracket
30Gasket, Meeting Rail
