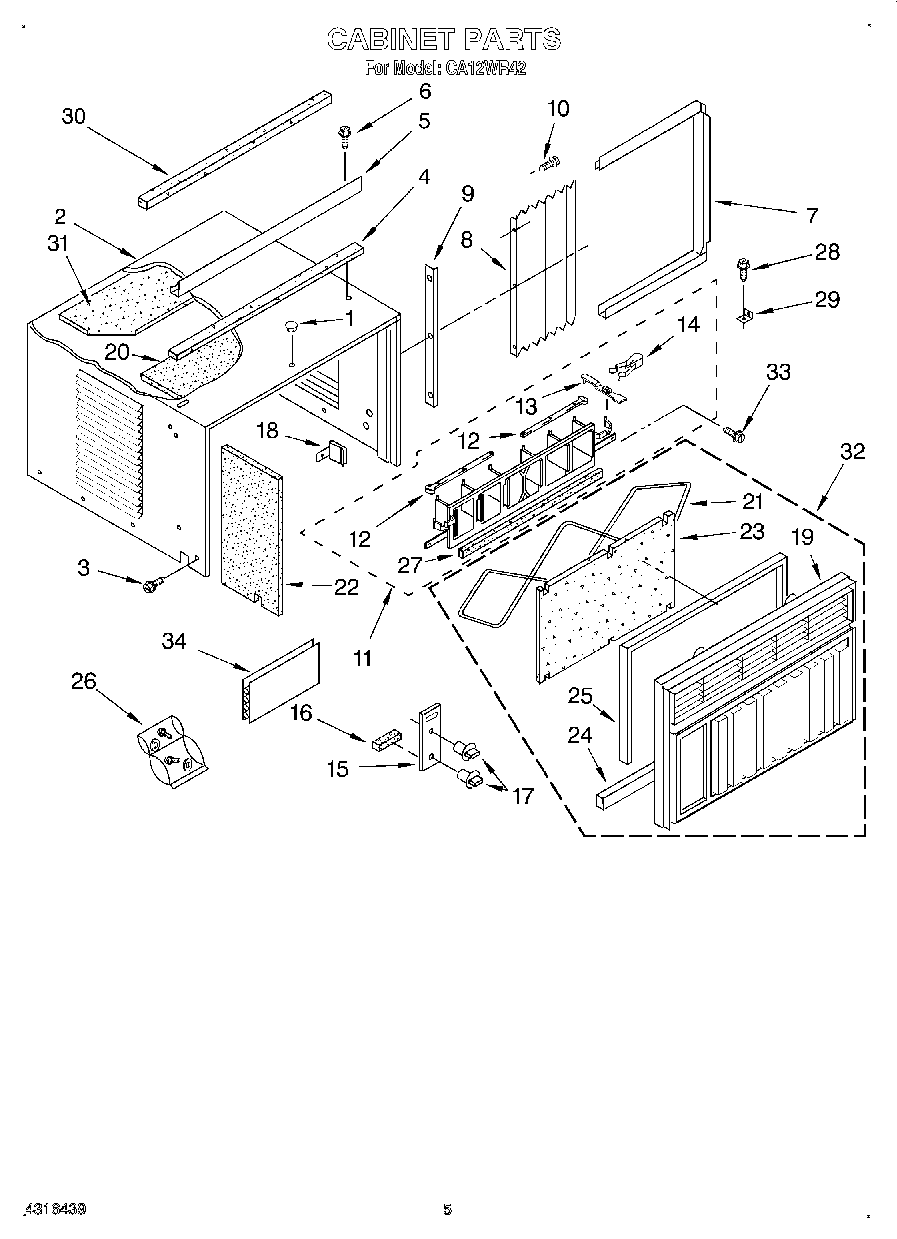

CA12WR42 03 – CABINET

Products

Position	Product
1	Cover, Hole
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top Mounting
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain R.S.(Includes No.8)
7	Housing, Curtain L.S. (Includes No.8)
8	Curtain (2)
9	Retainer, Curtain
10	Screw, 8-18 x 3/8
11	Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2) (Brown W/ White Indicator)
17	Knob, Control (2)
18	Clip, Vertical Louver
19	Front
20	Insul. Cabinet Top
21	Retainer, Filter
22	Insul. Cabinet (Right, Side)
22	Insul. Cabinet (Left Side)
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
27	Seal, Vertical Louver
28	Screw, Wood 8-15 x .750
29	Bracket
30	Gasket, Meeting Rail
31	Insul. Cabinet
32	Front, Cabinet
33	Screw 8-18 x .295
34	212643 Whirlpool Refrigerator Permagum Sealer
