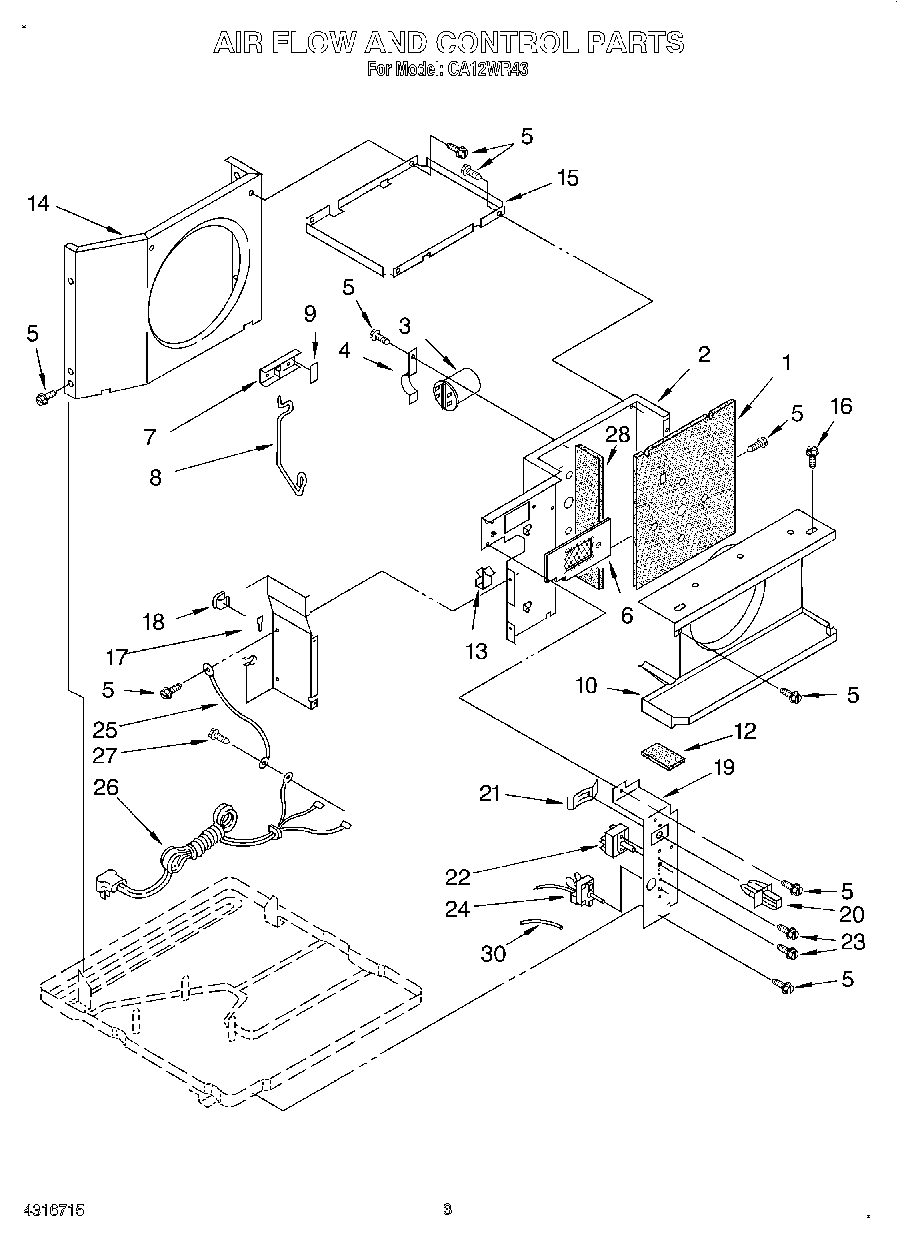

CA12WR43 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Insulation (Back, Dividing Wall)
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	WP489069 Whirlpool Compactor Screw
5	Screw, Repair
6	Screen, Insulation Assembly
7	Door, Exhaust
8	Arm, Door
9	Spacer
10	Shroud, Evaporator
12	Insulation, Top (Control Panel)
13	Clamp, Wiring
14	Shroud, Condenser
15	Support, Unit
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall
18	Clip, Retainer
19	Panel, Control
20	Actuator, Door
21	Spring, Retainer
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Thermostat
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
28	Insulation (Side, Dividing Wall)
30	Insulation, Sleeve
