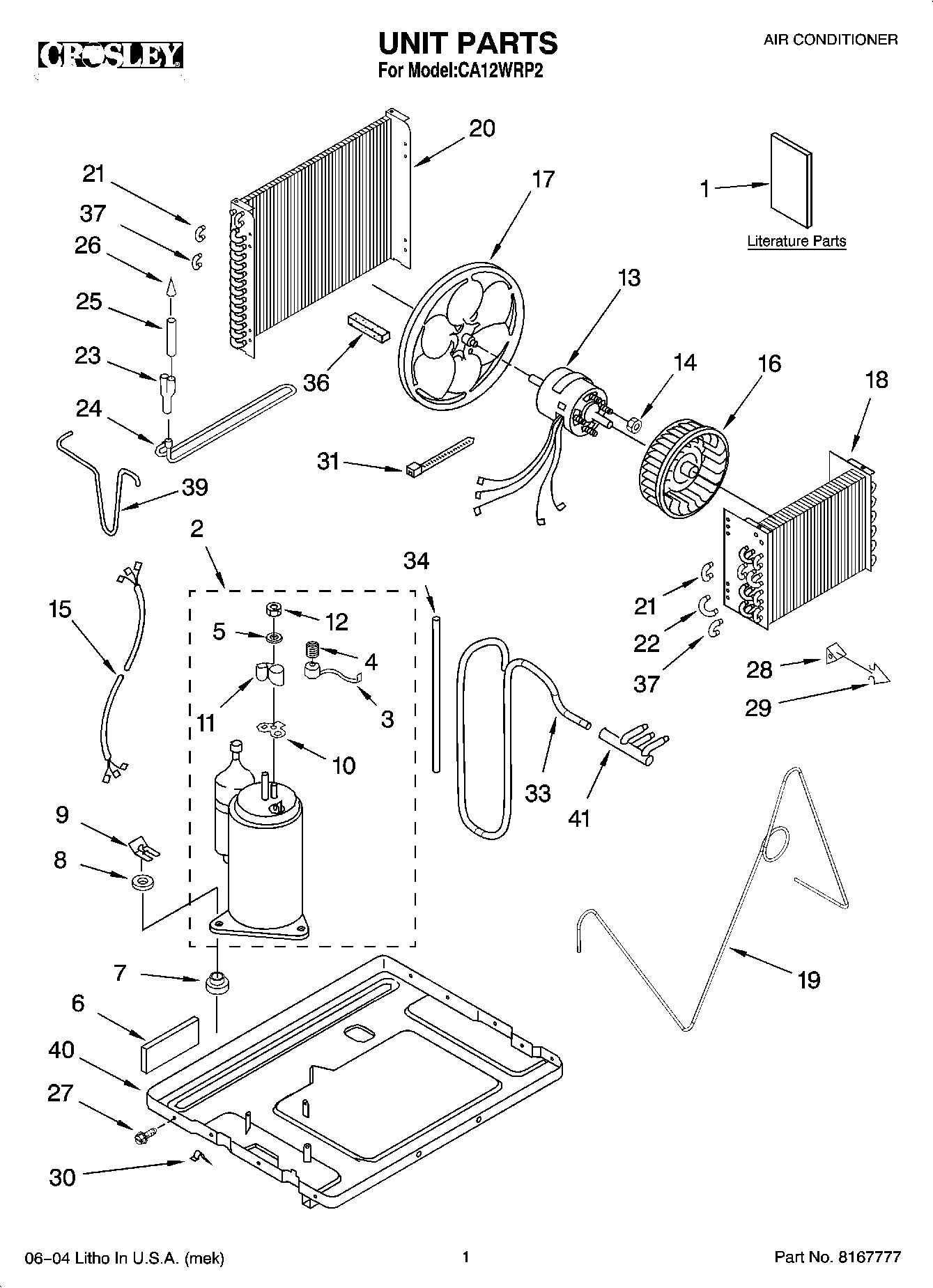

| 1 | Energy Guide |
| 1 | Use & Care Guide |
| 1 | Wiring Diagram |
| 2 | Compressor |
| 3 | WP1188381 Whirlpool Air Conditioner Overload |
| 4 | Spring, Overload |
| 5 | Washer |
| 6 | Seal, Anti-Rub |
| 7 | Grommet |
| 8 | Washer, Nylon |
| 9 | Clip, Compressor |
| 10 | Gasket, Terminal Cover |
| 11 | Cover, Terminal |
| 12 | W10833054 Whirlpool Air Conditioner Mounting Nut |
| 13 | Motor, Fan |
| 14 | WP488130 Whirlpool Air Conditioner Nut |
| 15 | Wiring Harness, Compressor |
| 16 | Wheel, Blower |
| 17 | Blade, Fan (Condenser) |
| 18 | Evaporator |
| 19 | Tube, Restrictor |
| 20 | Condenser |
| 21 | Bend, Return Evaporator (4) Condenser (4) |
| 22 | Bend, Return (5) |
| 23 | Tube, Flow Divider |
| 24 | Tube, Wet Loop |
| 25 | Tube, Outlet |
| 26 | Strainer |
| 27 | Screw, 8 x 3/8 |
| 28 | Anticipator, Temperature |
| 29 | Clip, Anticipator |
| 30 | Clamp (2) |
| 31 | WPW10339879 Whirlpool Wire Tie |
| 33 | Tube, Suction |
| 34 | Seal, Suction Tube Suction Tube |
| 36 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 37 | Bend, Return Condenser (4) |
| 39 | Tube, Discharge |
| 40 | Base |
| 41 | Tube, Manifold |
| 41 | REFRIGERANT CHARGE 23.50 oz. |
