CA12WRS0 01 – UNIT PARTS – Aparts

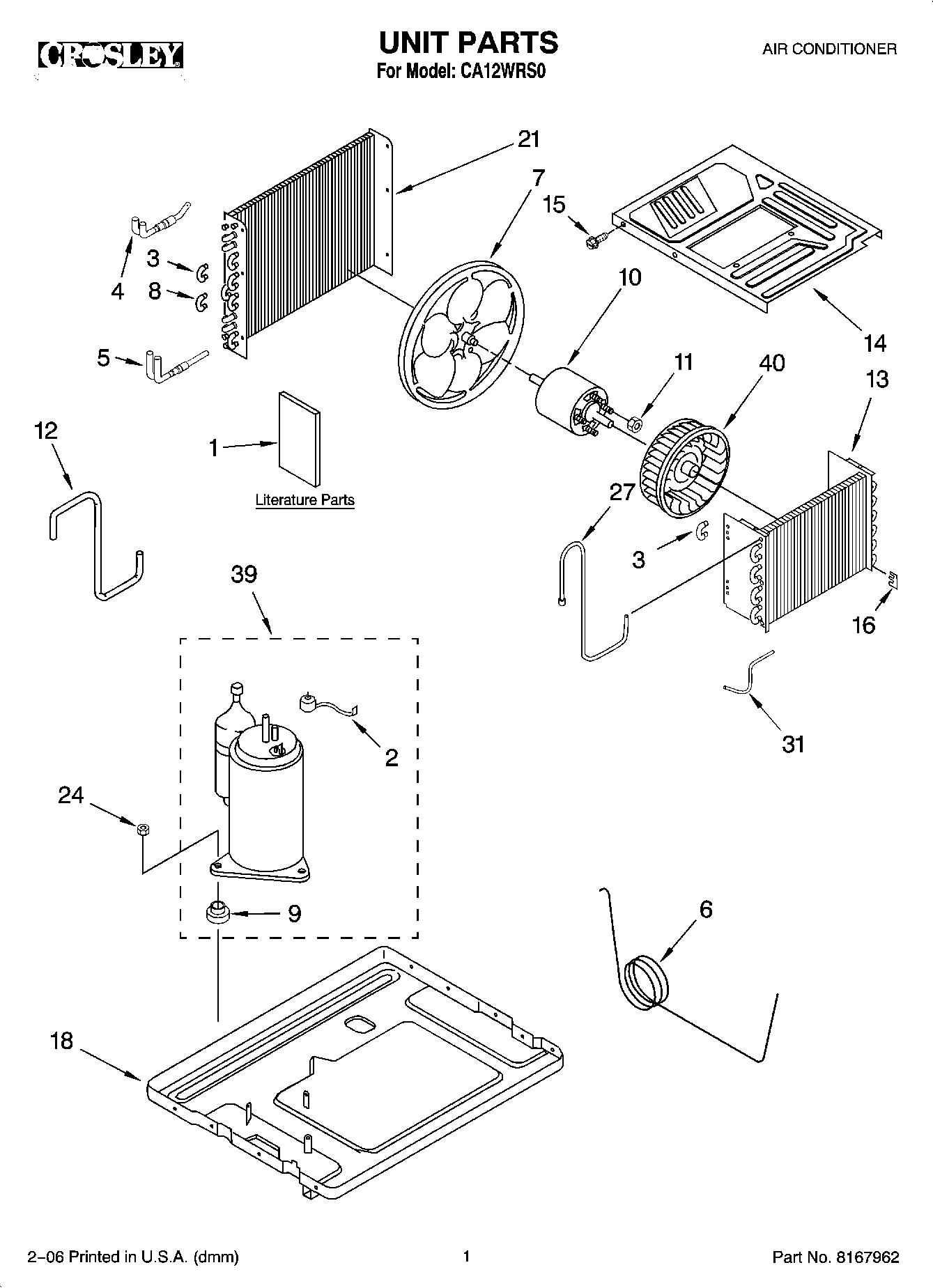

CA12WRS0 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Wiring Diagram
1	Use & care Guide
2	Overload
3	Bend, Return
4	Tube, Inlet
5	Tube, Outlet
6	Tube, Restrictor
7	Blade, Fan
8	Bend, Return
9	Grommet (3)
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	Evaporator
14	Cover, Evaporator
15	Screw
16	Support, Tube Sensor
18	BASE
21	Condenser
24	Nut, Hex
27	Tube, Suction
31	Tube, Inlet
39	Compressor Assembly
40	Wheel, Blower
40	REFRIGERANT CHARGE 33.15 oz.
