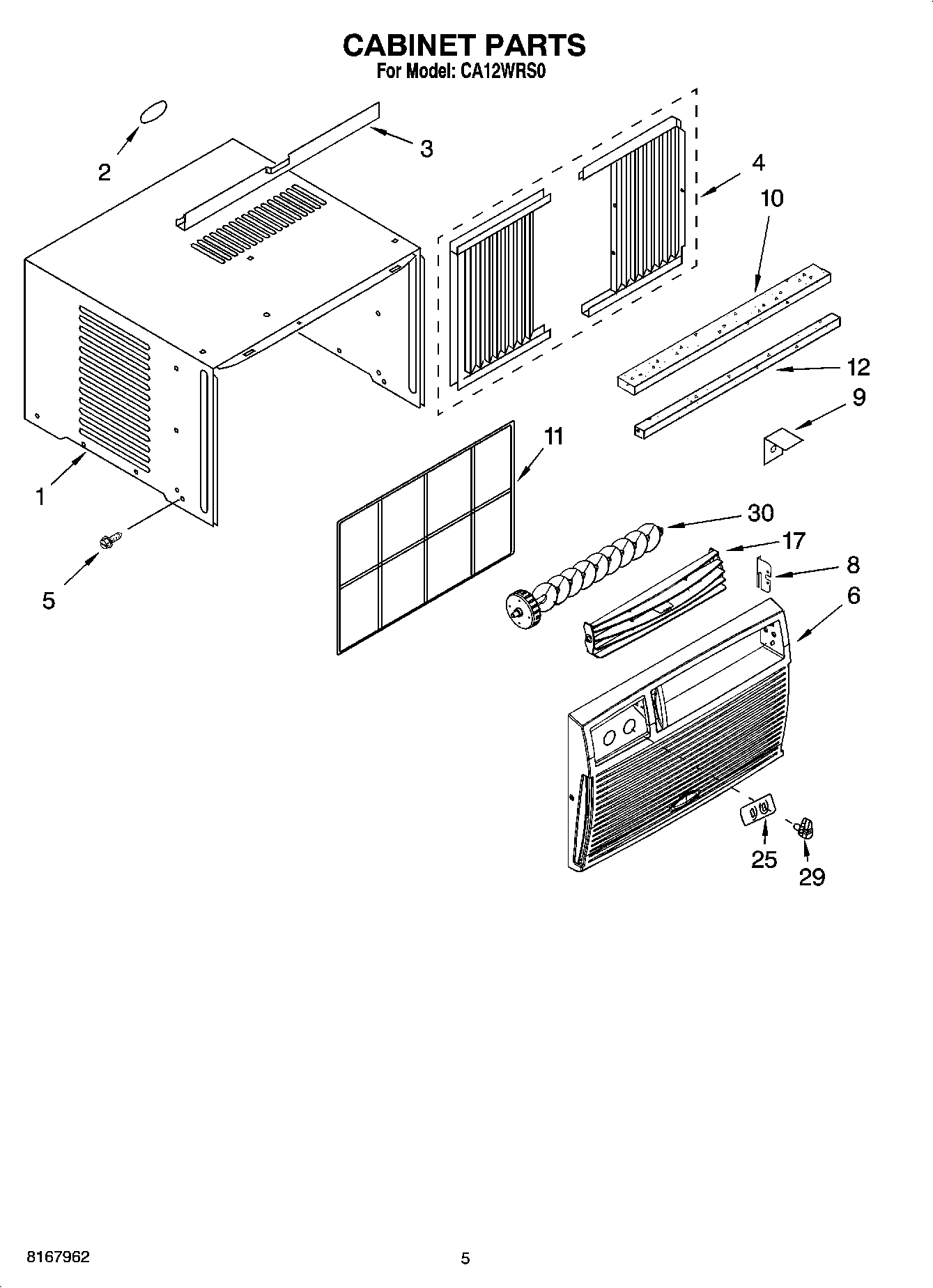

CA12WRS0 03 – CABINET PARTS

Products

Position	Product
1	CABINET
2	Nameplate, Rear
3	Channel, Top
4	Curtain Assembly Right & Left Side (Includes Item 3)
5	Screw (8)
6	Front Cabinet
8	Support, Louver
9	Bracket, Window Lock
10	Seal-Strip, Wide
11	Filter
12	Seal-Strip, Narrow
17	Louver, Assembly
25	Escutcheon
29	Knob
30	Louver, Vertical
