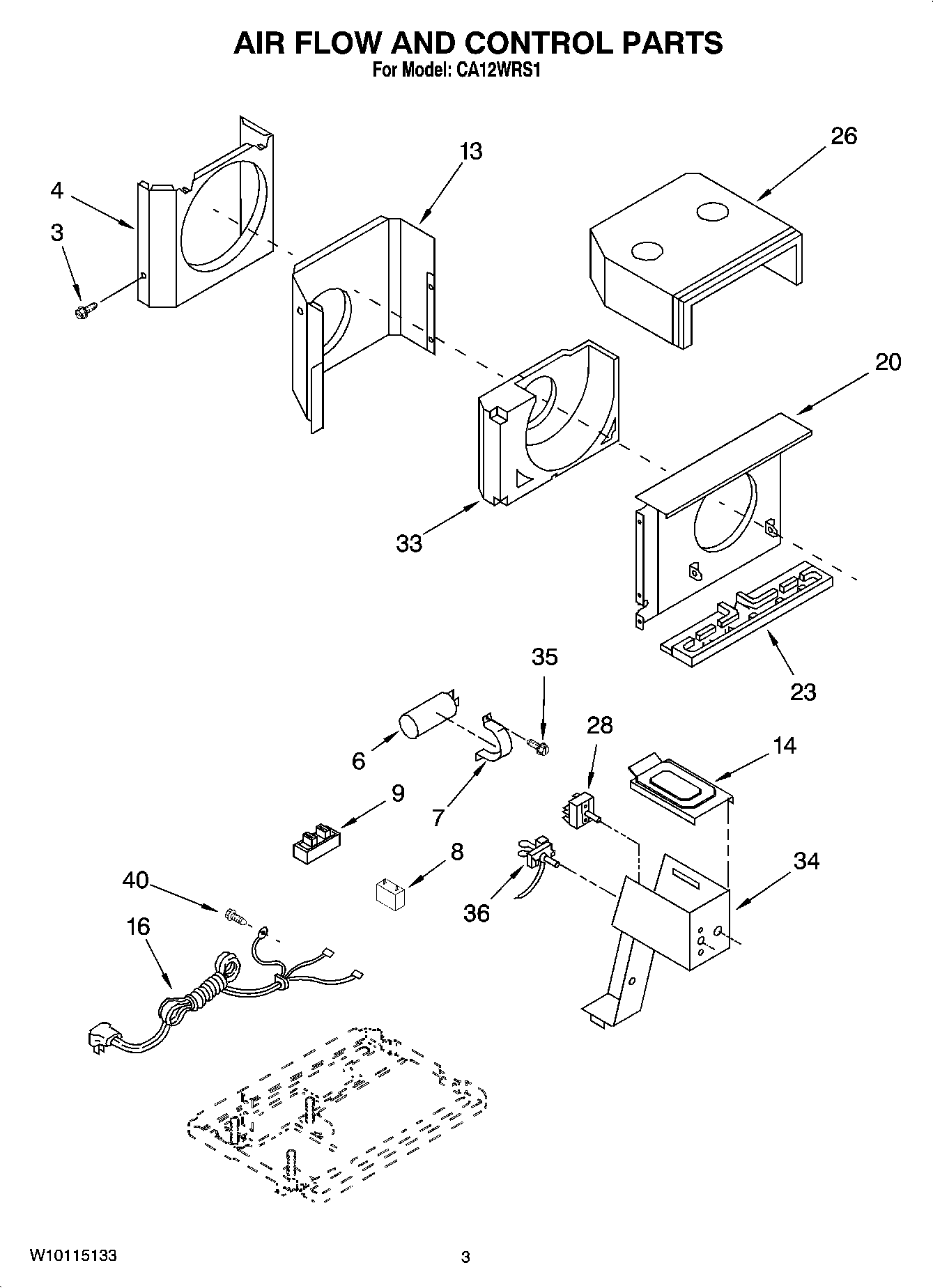

CA12WRS1 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
3	Screw
4	Shroud, Condenser
6	Capacitor, Running
7	Bracket, Capacitor
8	Capacitor, Motor
9	Terminal Board
13	Wall, Dividing
14	Cover, Control Box
16	Cord, Appliance
20	Shroud, Evaporator
23	Pan, Evaporator
26	Hood, Air Housing
28	Switch, Rotary
33	Housing, Air
34	Box, Control
35	W11245710 Whirlpool Refrigerator Screw
36	Control, Temp.
40	Front, Cabinet Assembly
