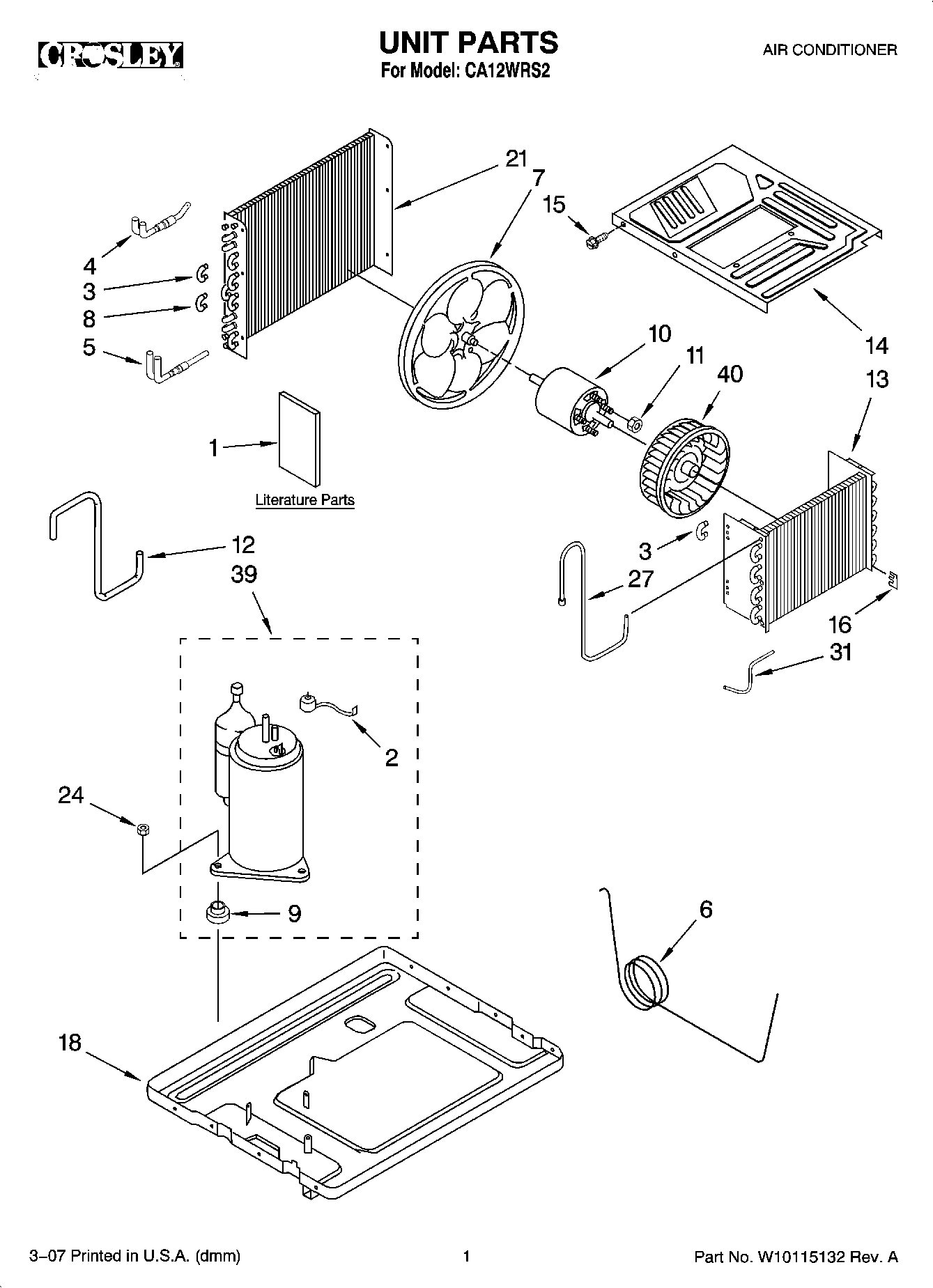

CA12WRS2 01 – UNIT PARTS

Products

PositionProduct
1Use & care Guide
1Energy Guide
1Wiring Diagram
2Overload
3Bend, Return
4Tube, Inlet
5Tube, Outlet
6Tube, Restrictor
7Blade, Fan
8Bend, Return
9Grommet (3)
10Motor, Fan
11Nut, Hex
12Tube, Discharge
13Evaporator
14Cover, Evaporator
15Screw
16Support, Tube Sensor
18BASE
21Condenser
24Nut, Hex
27Tube, Suction
31Tube, Inlet
39Compressor Assembly
40Wheel, Blower
40REFRIGERANT CHARGE 32.80 oz.
