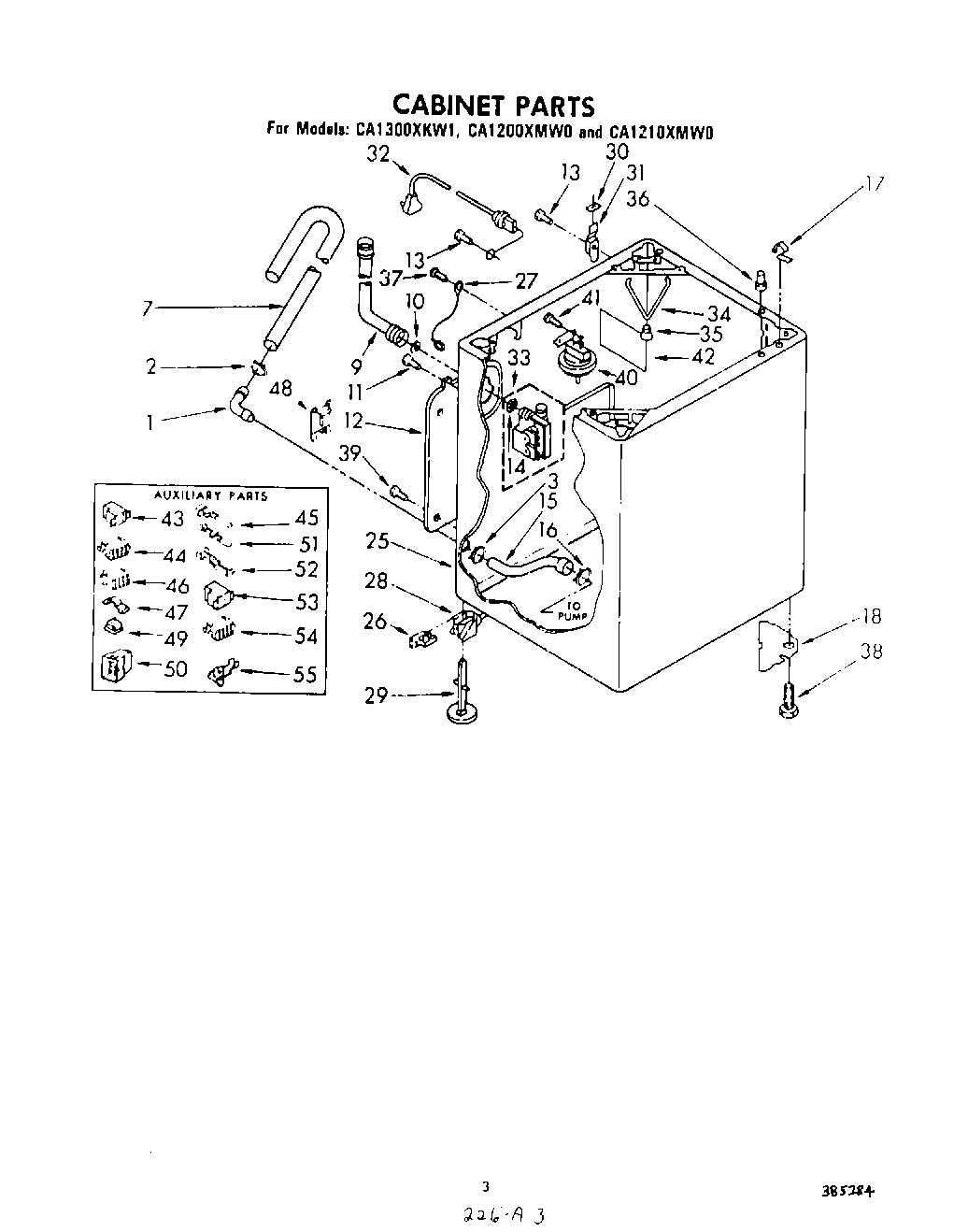

CA1300XKW1 03 – CABINET

CA1300XKW1 03 – CABINET

Written by

in

CA1300XKW1 03 – CABINET

Products

PositionProduct
1Connector, Hose
2WP356138 Whirlpool Hose Clamp
7WP96743 Whirlpool Hose
9WP89503 Whirlpool Washer Fill Hose
10WP16123 Whirlpool Washer
11WP3351614 Whirlpool Screw
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
15Hose, Pump Discharge
16WP285655 Whirlpool Hose Clamp
17WP18776 Whirlpool Lock
18Plate, Gusset
25Cabinet (Almond)
25Cabinet (Golden Harvest)
25Cabinet (New Avocado)
25Cabinet
26WP359364 Whirlpool Clip
27WPL 364089
28Link, Leveling
29WP358594 Whirlpool Leveling Feet
3018849 Whirlpool Pad
31Hinge, R.H.
31Hinge, L.H.
32Cord, Power (120 Volt)
33Valve, Mixing (Alt.)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
40Switch, Water Level
41WP90767 Whirlpool Screw
42Barrier, Splash
43Cap, Terminal (12-Way) (Use W/97452 Terminal)
44Plug, Terminal (12-Way) (Use W/96413 Terminal)
45WP94614 Whirlpool Terminal
46Plug, Terminal (15 Way)
478528351 Whirlpool Clip
48Plug, Cabinet
49WP90016 Whirlpool Clip
50Cap, Terminal (15 Way)
51Terminal
52Terminal
53Cap, Terminal (12-Way) (Use W/97454 Plug & 96413 Terminal)
54Plug, Terminal (12-Way) (Use W/97455 Cap & 97452 Terminal)
55WPL 357695
