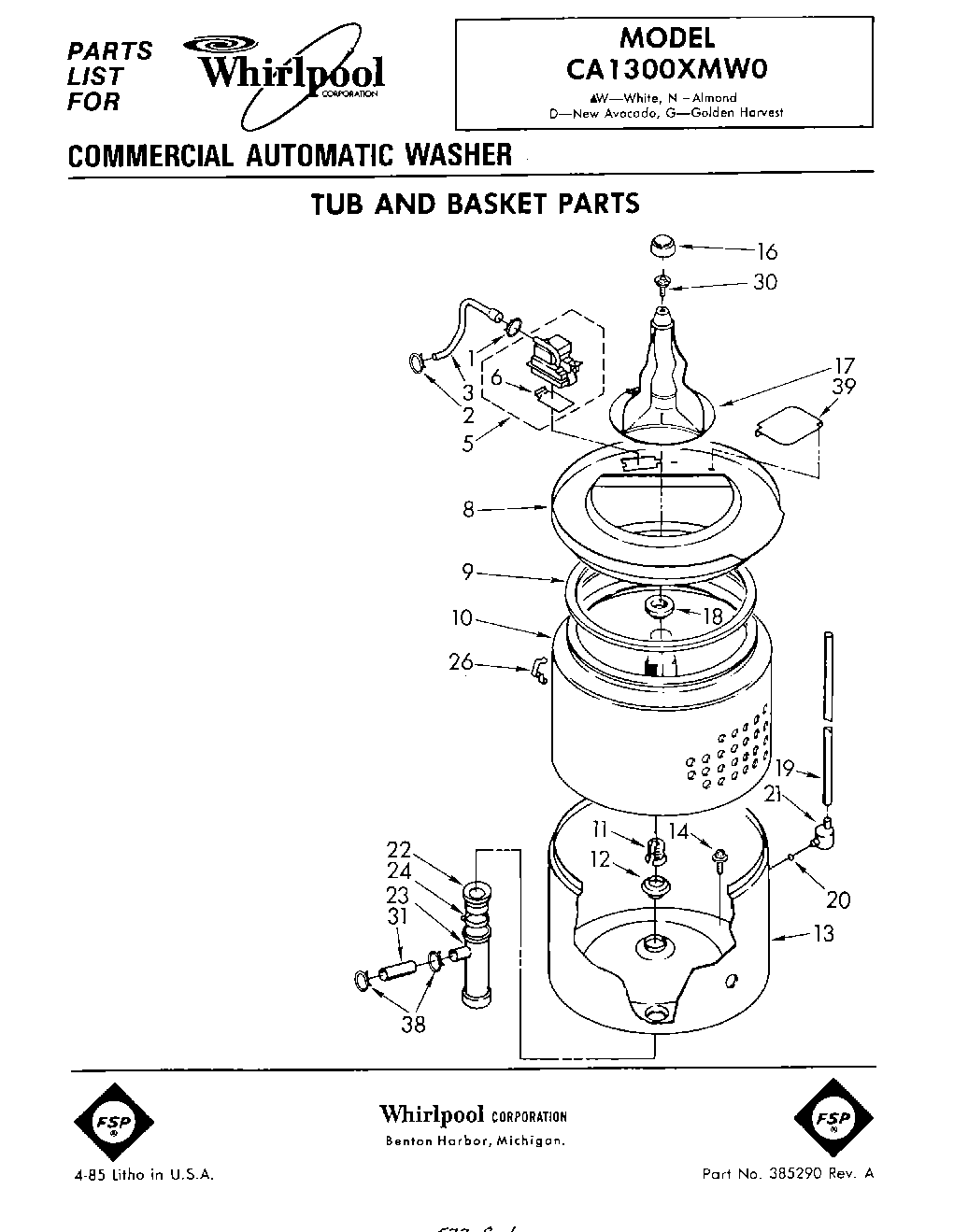

CA1300XMW0 01 – TUB AND BASKETadmin2025-04-26T10:52:09+00:00CA1300XMW0 01 – TUB AND BASKET
Products
| Position | Product |
|---|
| 2 | WP596669 Whirlpool Hose Clamp |
| 3 | Hose, Water Inlet |
| 5 | Inlet, Water |
| 6 | Flapper |
| 8 | Ring & Filter, Tub (Includes Illus. 22) |
| 9 | Seal, Tub Ring |
| 10 | Basket |
| 11 | WP389140 Whirlpool Drive Block or Bell |
| 12 | W10814296 Whirlpool Washer Center Post Seal Gasket |
| 13 | Tub Assembly |
| 14 | Screw & Washer, Tub (4) |
| 16 | Agitator Cap |
| 17 | Agitator |
| 18 | WP21366 Whirlpool Spanner Nut |
| 19 | WP353244 Whirlpool Hose |
| 20 | Seal |
| 21 | Air Dome Assembly |
| 22 | Hose, Tub Outlet |
| 23 | Manifold |
| 24 | Clip, Hose |
| 26 | Clip, Tub Ring (4) |
| 30 | Screw & Seal Assembly |
| 31 | Hose |
| 38 | WP285655 Whirlpool Hose Clamp |
| 39 | Harness, Timer |
| 39 | Plate, Snubber |
| 39 | Harness, Cabinet |
