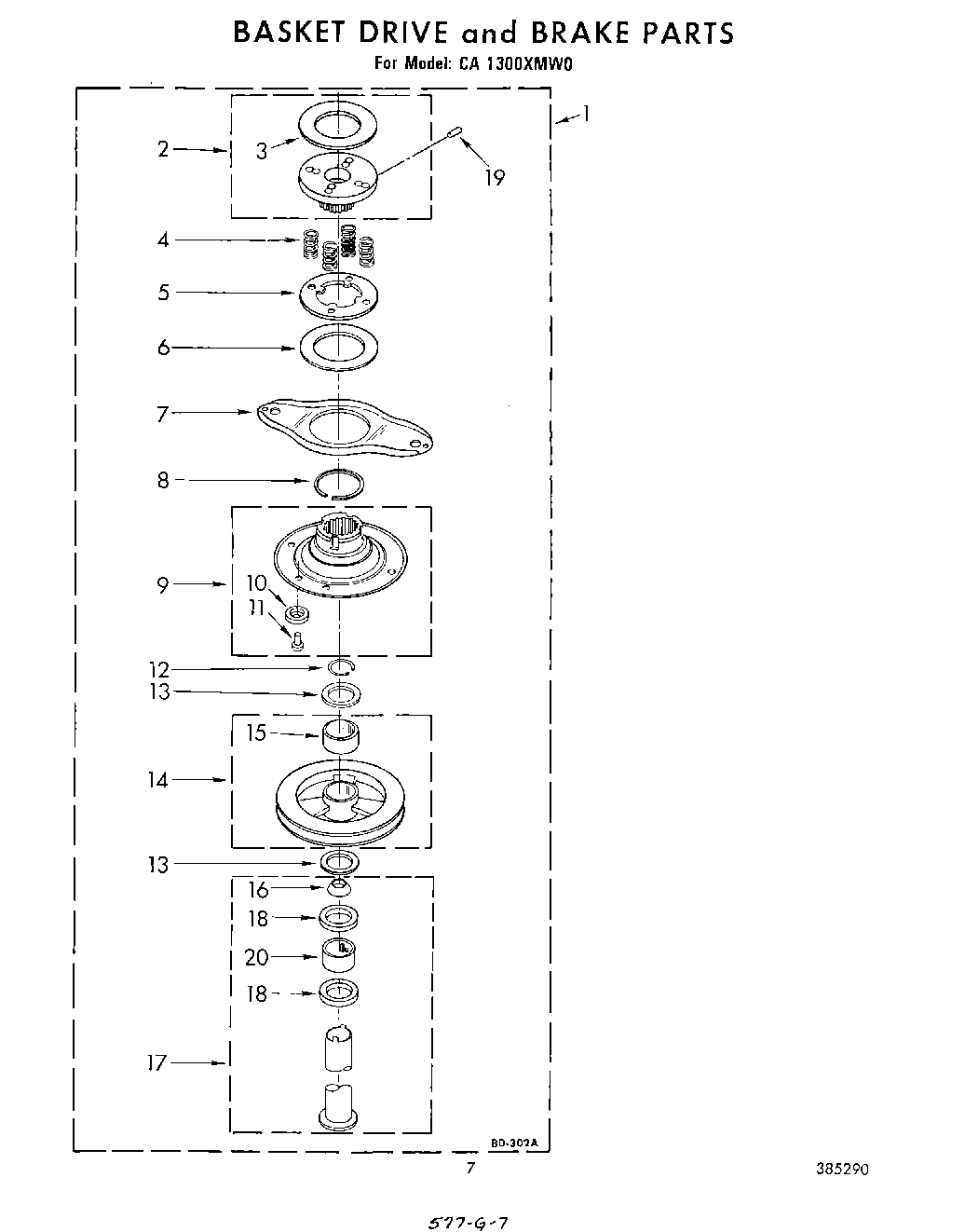

CA1300XMW0 07 – BASKET DRIVE AND BRAKEadmin2025-04-26T10:52:29+00:00CA1300XMW0 07 – BASKET DRIVE AND BRAKE
Products
| Position | Product |
|---|
| 1 | Basket Drive & Brake (For Further Breakdown Refer To Page 11) |
| 2 | Drum, Brake (Upper) |
| 3 | Lining, Basket Brake (Upper) |
| 4 | Spring, Basket Drive (Green) (4) |
| 5 | Drum, Brake (Lower) |
| 6 | Lining, Basket Brake (Lower) |
| 7 | Yoke, Brake |
| 8 | Ring, Snap |
| 9 | Plate & Lining, Basket Drive |
| 10 | Lining, Basket Drive (Set of 3) |
| 11 | Eyelet (3) |
| 12 | WPW10083200 Whirlpool Wire Ring |
| 13 | Washer, Thrust (2) |
| 14 | Pulley, Basket Drive |
| 15 | Bearing, Drive Pulley |
| 16 | WP91939 Whirlpool Shaft Seal |
| 17 | Drive Tube & Bearing, Basket |
| 18 | WP356427 Whirlpool Shaft Seal |
| 19 | Set Screw, 5/16-18X 13/16 |
| 20 | Spacer, Drive Tube |
